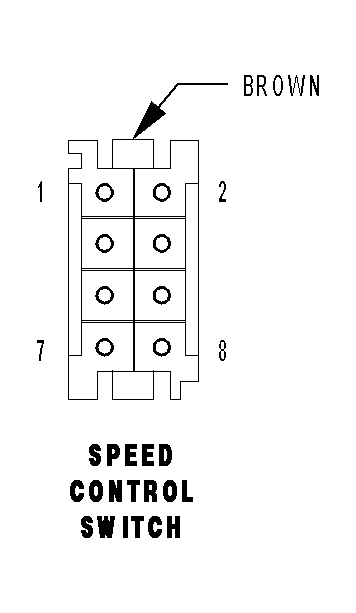

Speed Control Switch Connector End View

SPEED CONTROL SWITCH - BROWN 8 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	20GY	OFF SIGNAL
2	18BK/RD	FUSED IGNITION SWITCH OUTPUT
3	20YL/DG	DECEL/SET SIGNAL
4	20DG/RD	ACCEL/SET SIGNAL
5	20BL/RD	RESUME SIGNAL
6	20DG/BL	ON SIGNAL
7	-	-
8	-	-
