Support Bracket And Isolator: Installation

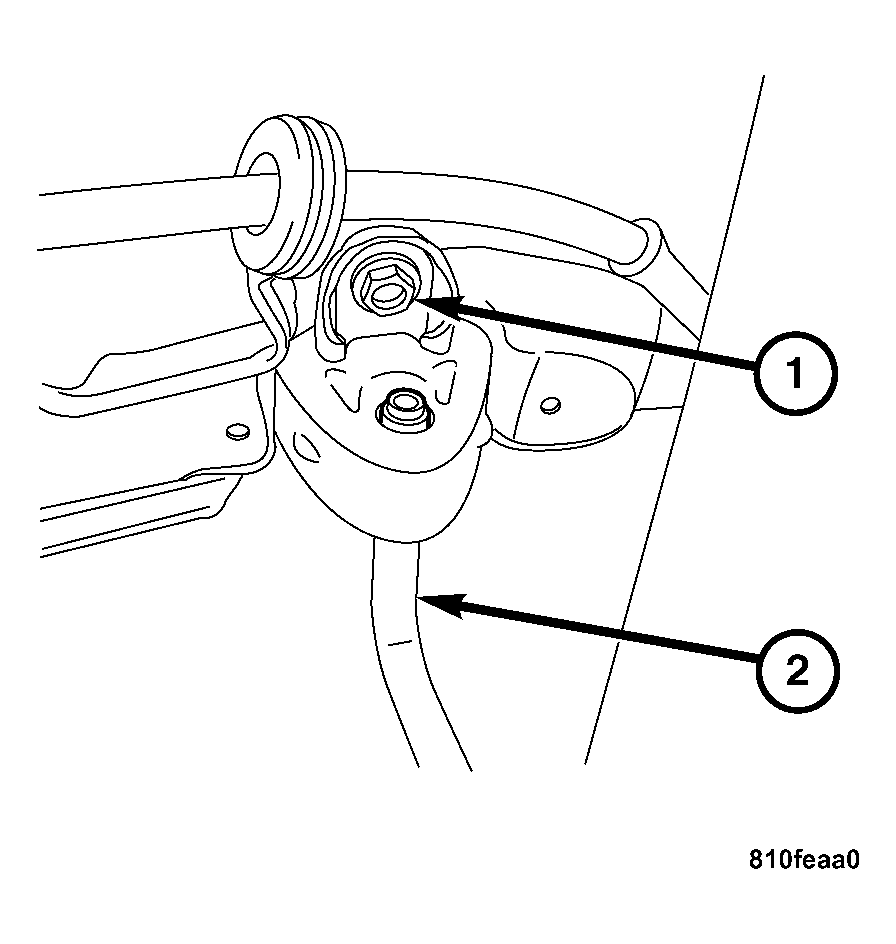

Fig 1: Removing/Installing Bracket Bolt, Bracket And Isolator From Exhaust Hanger

Courtesy of DAIMLERCHRYSLER CORP.

1. Position the bracket and bolt on the vehicle.
2. Tighten the bolt to 20 N.m (15 ft. lbs.).
3. Install the isolator and hanger.
4. Lower the vehicle.
