Camshaft Position Sensor: Description

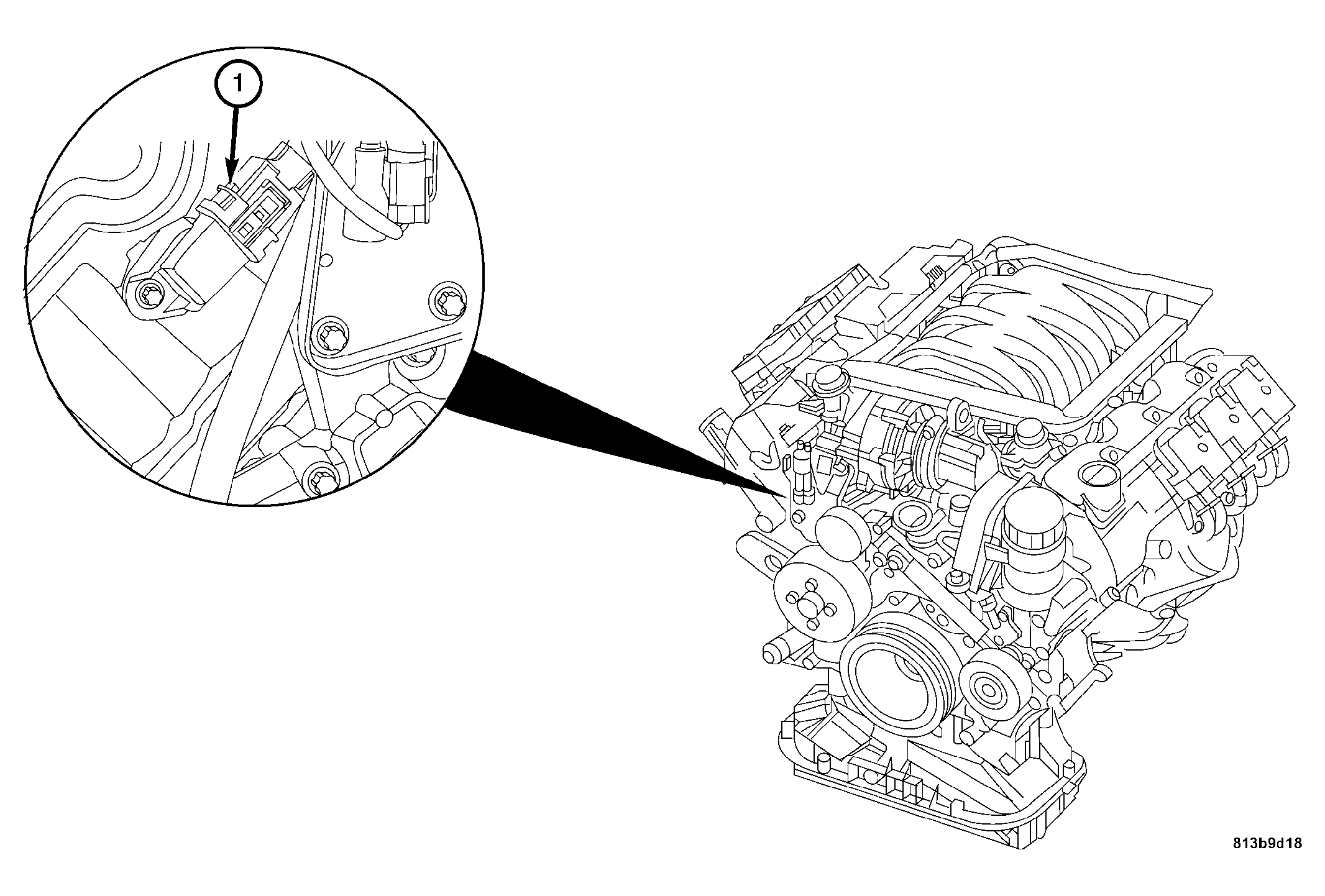

Fig 1: View Of Camshaft Position Sensor

Courtesy of DAIMLERCHRYSLER CORP.

The Camshaft Position Sensor is a hall effect type sensor (3 wire). The Camshaft Position Sensor is mounted on the front of the right cylinder head.
