Switchover Solenoid: Installation

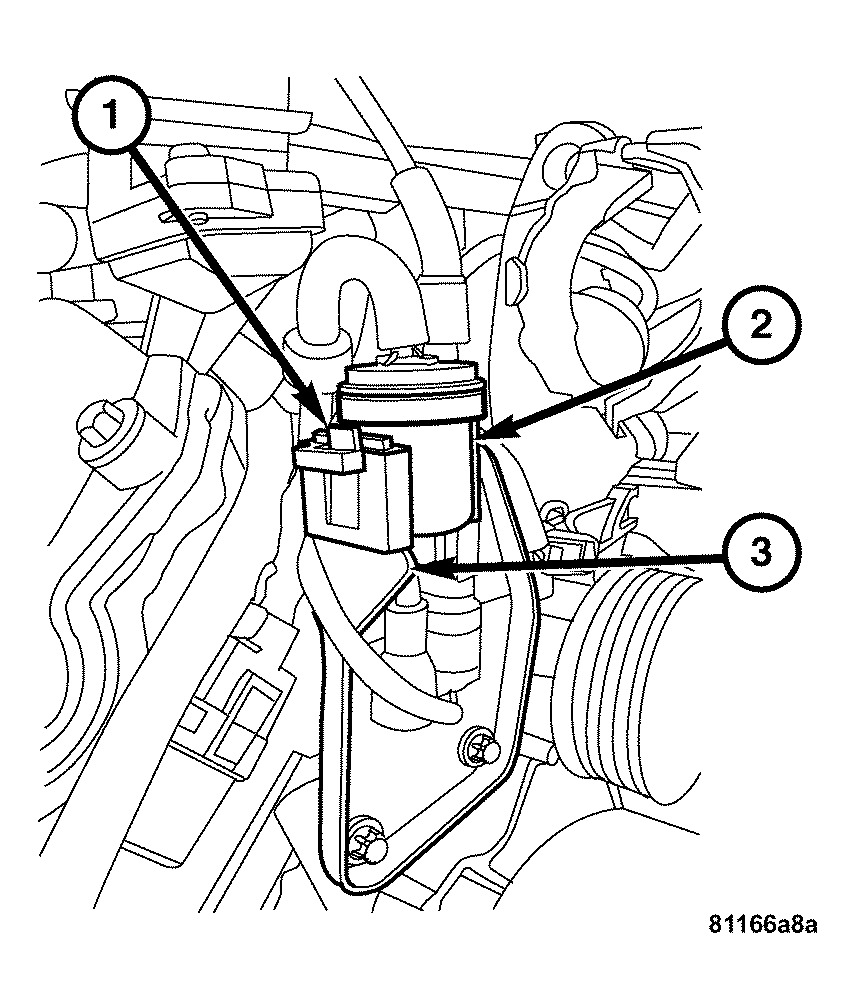

Fig 1: Locating Solenoid Locking Tab, Bracket & Solenoid
GC0033626Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the air pump switchover solenoid (2) above air pump switchover solenoid mounting bracket (3) and lower until air pump switchover solenoid locking tab (1) snaps into place.

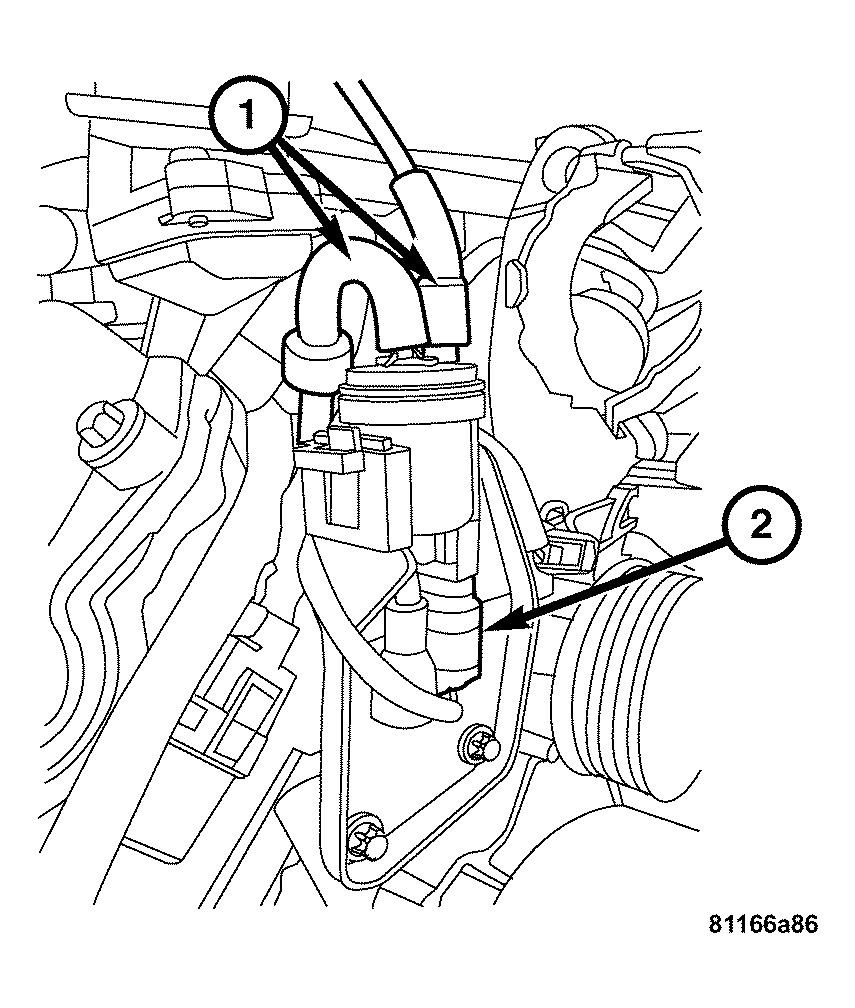

    Fig 2: Locating Vacuum Lines & Harness Connector
    GC0033625Courtesy of DAIMLERCHRYSLER CORP.
  2. Connect the vacuum lines (1).
  3. Connect the air pump switchover solenoid harness connector (2).
  4. Install the air cleaner housing.
  5. Connect the negative battery cable.
