Power Window Switch: Removal: Front

  1. Disconnect and isolate the battery negative cable.
  2. Using a trim stick (special tool #C-4755) or equivalent, gently pry at the top of the switch. See Fig 1.

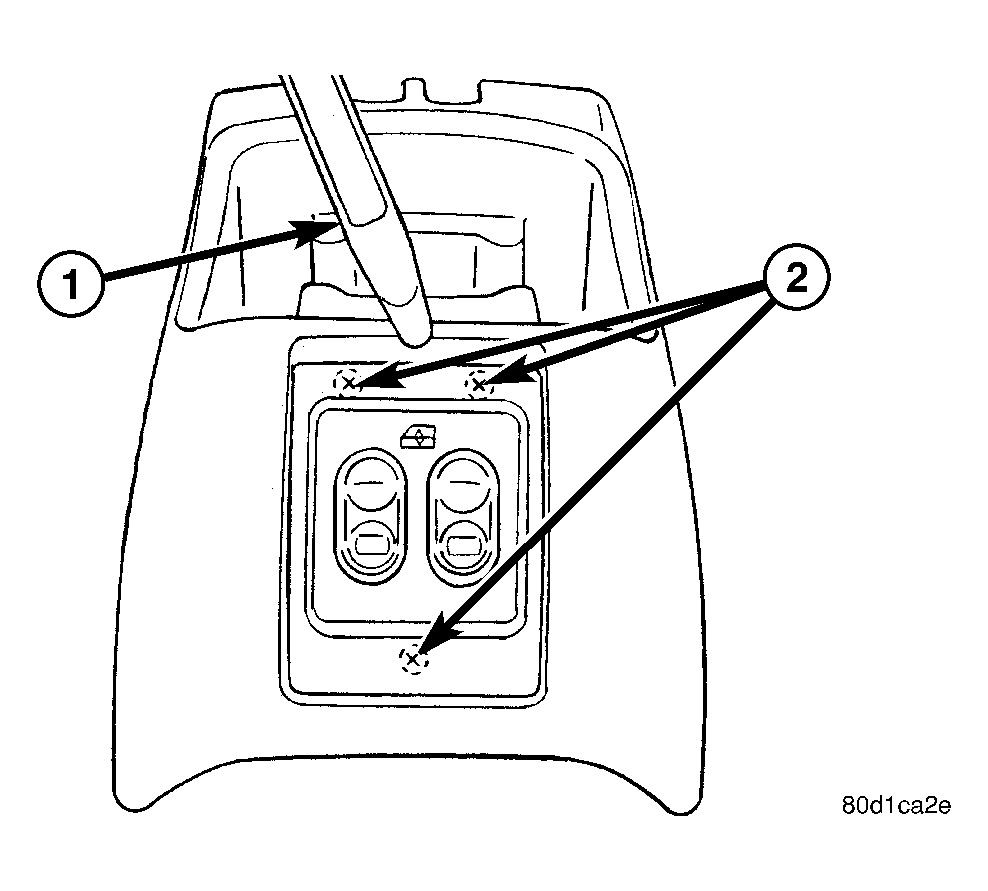

    Fig 1: WINDOW SWITCH REMOVAL (REAR SHOWN - FRONT SIMILAR)
    GC0022982Courtesy of DAIMLERCHRYSLER CORP.
    1 - TRIM STICK
    2 - RETAINING CLIP LOCATION
  3. Remove switch and disconnect electrical harness connector. See Fig 2.

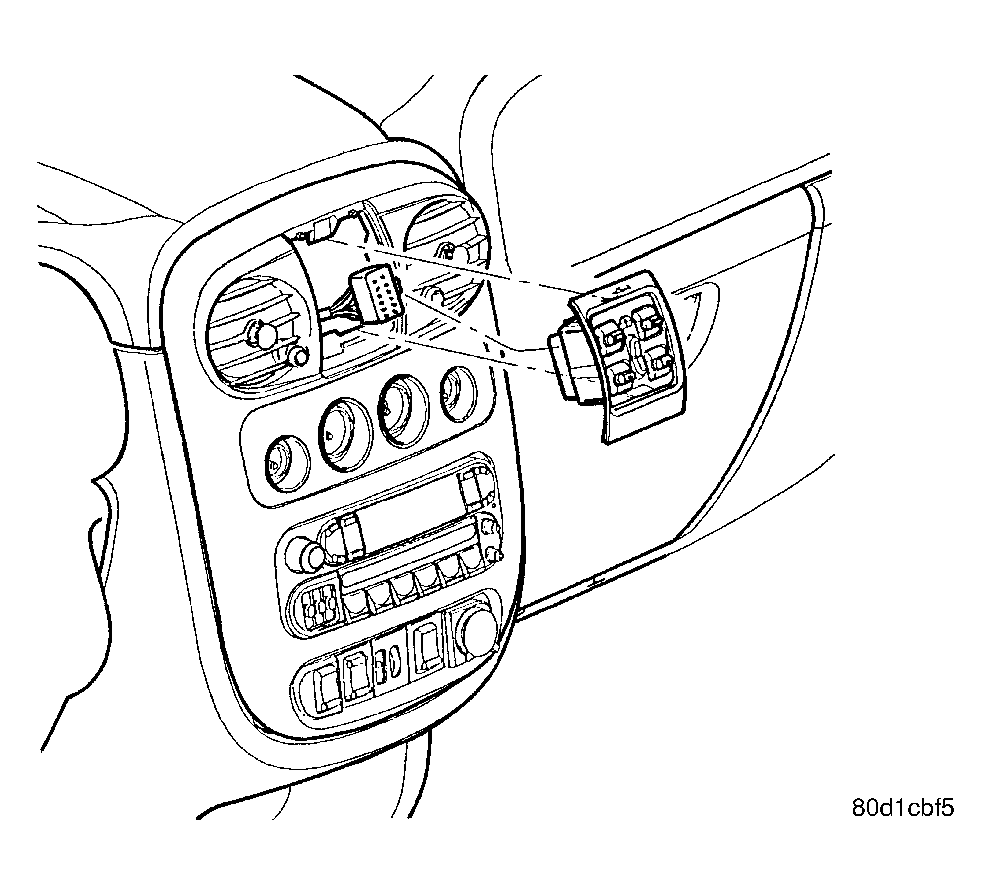

Fig 2: FRONT WINDOW SWITCH
GC0022983Courtesy of DAIMLERCHRYSLER CORP.
