Home >> Chrysler >> 2005 >> PT Cruiser Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Traction Control Switch >> Removal

Traction Control Switch: Removal

NOTE: The Traction Control Switch is located within the accessory switch bezel on the instrument panel. See Fig 1.

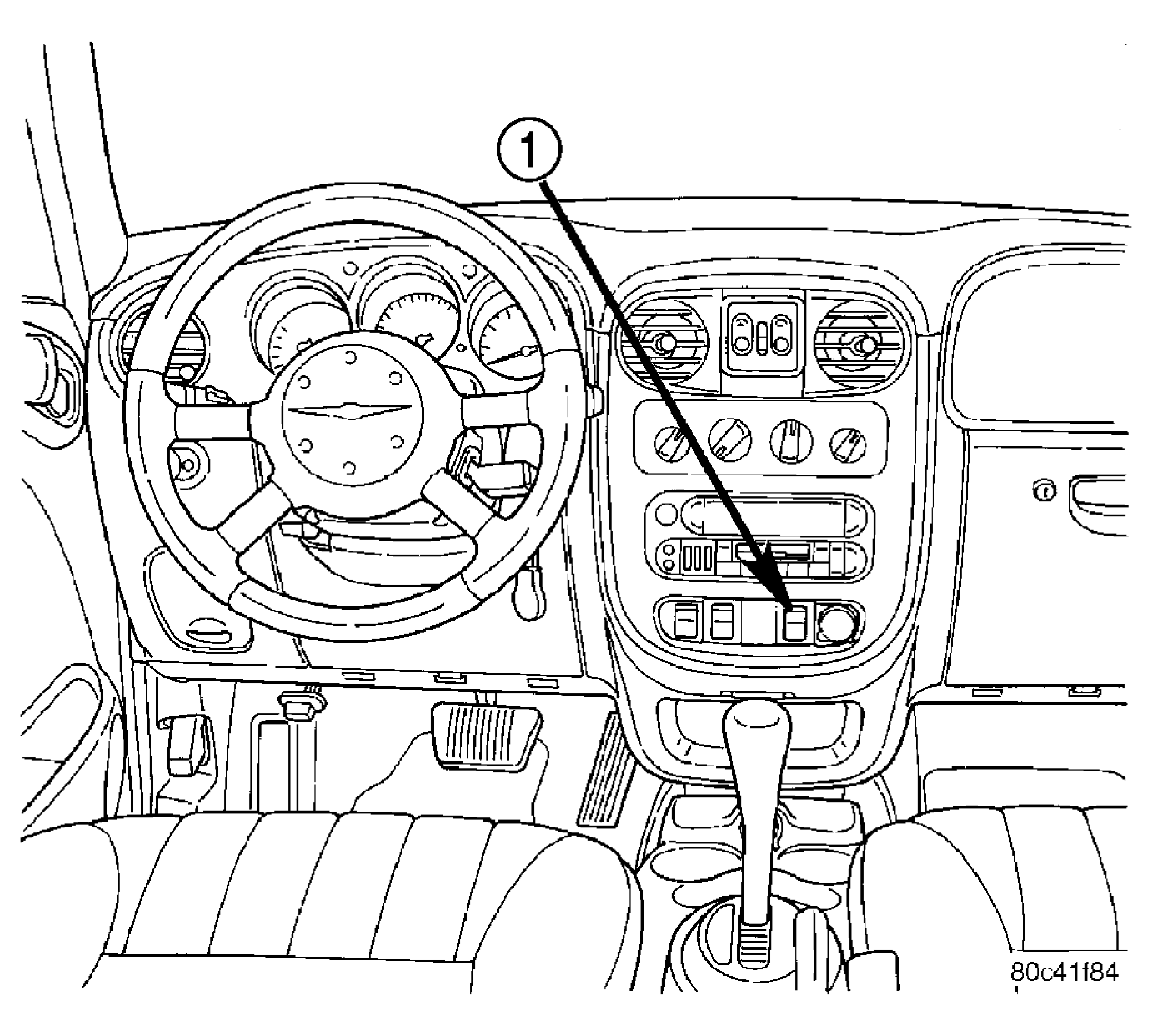

Fig 1: Traction Control Switch Location
GC0022787Courtesy of DAIMLERCHRYSLER CORP.
1 - TRACTION CONTROL SWITCH
  1. Remove the accessory switch bezel and then remove the traction control switch from it. (Refer to BODY/INSTRUMENT PANEL/ACCESSORY SWITCH BEZEL - REMOVAL)
