Power Distribution: Relay: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove cover from Power Distribution Center (PDC).
  3. Using special tool C-4817, grip the relay by the sides and pull upward with an even effort. See Fig 1.

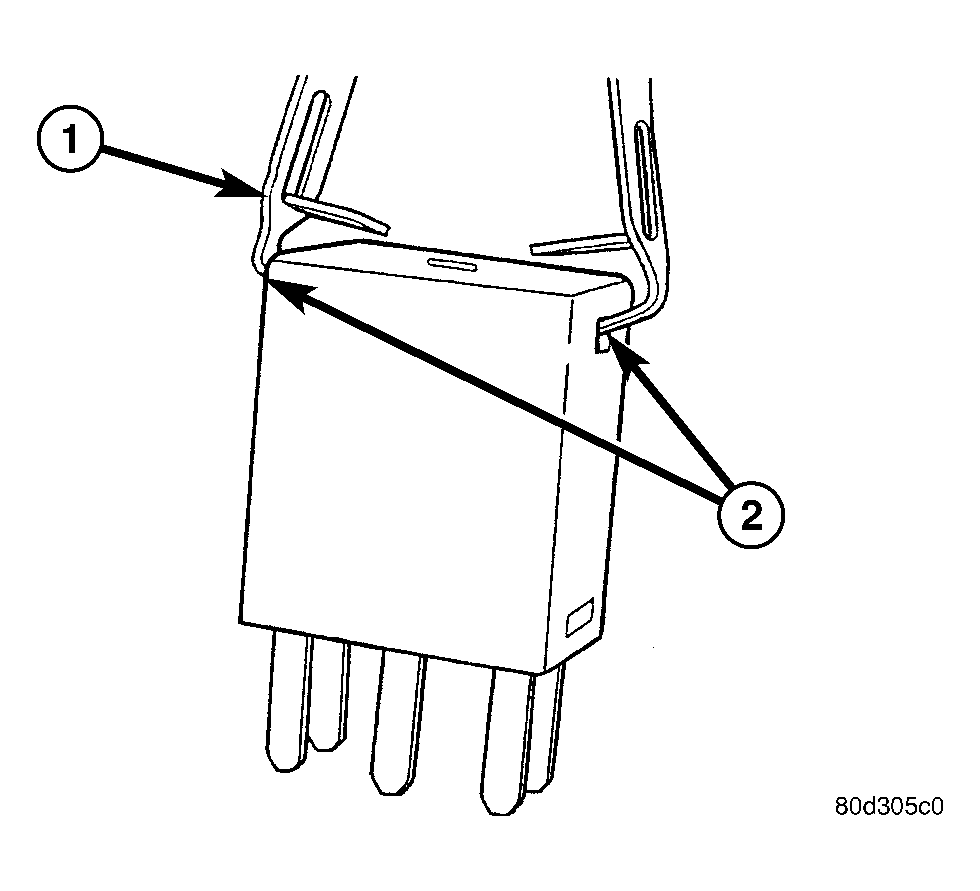

Fig 1: Relay Removal
GC0023112Courtesy of DAIMLERCHRYSLER CORP.
1 - SPECIAL TOOL C-4817
2 - RELAY
