Map Sensor: Description

The MAP sensor mounts to the intake manifold. See Fig 1.

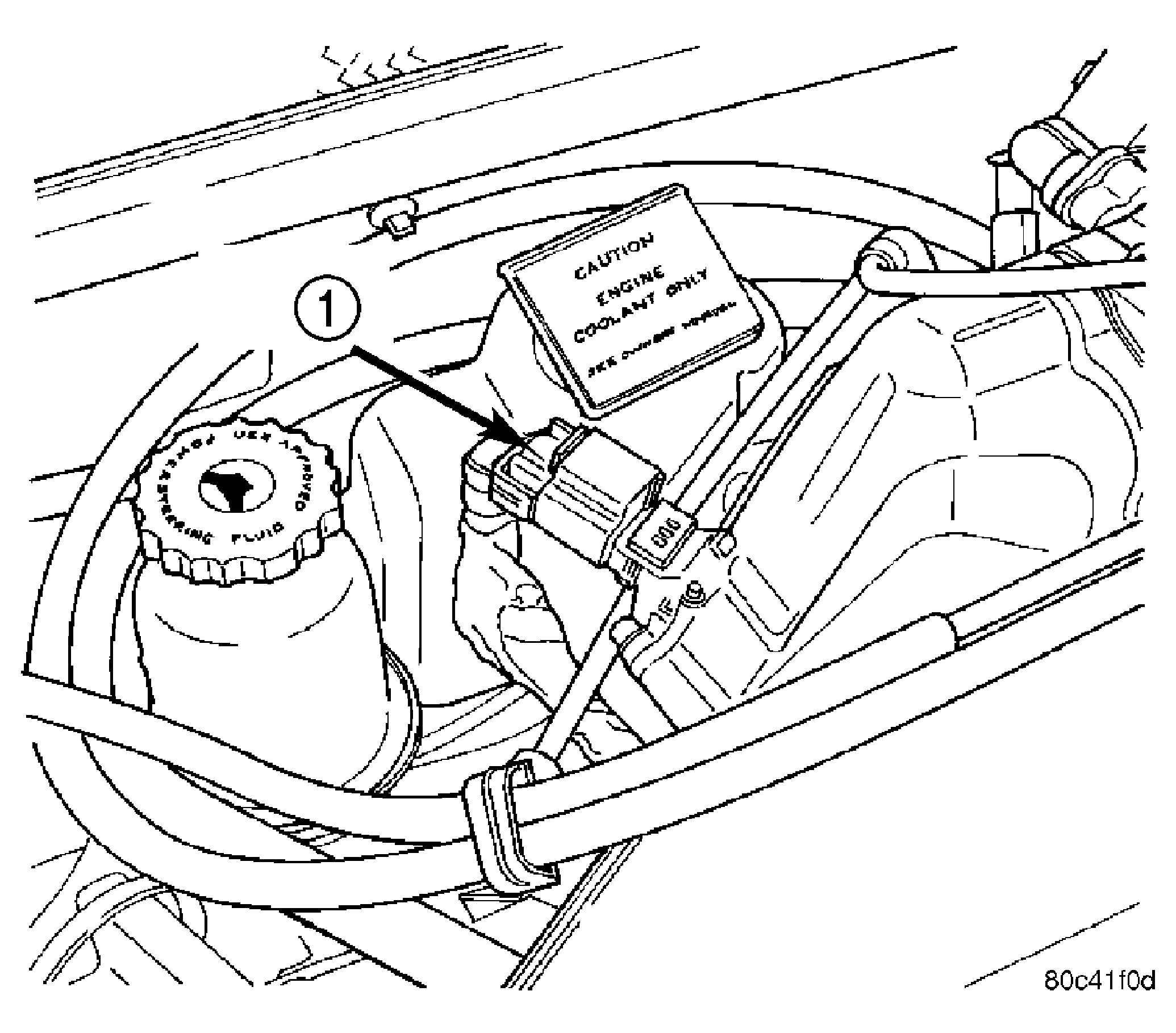

Fig 1: MAP Sensor

GC0021587

Courtesy of DAIMLERCHRYSLER CORP.

1 - MAP SENSOR
