Ignition Coils

Engines	Coil Manufacture	Primary Resistance at 21°C-27°C (70°F-80°F)	Secondary Resistance at 21°C-27°C (70°F-80°F)
1.6L	Weastec	0.45 to 0.65 Ohms	11,500 to 14,700 Ohms
2.0/2.4L	Toyodenso/Diamond	0.45 TO 0.65 Ohms	11,500 to 14,700 Ohms

Fig 1: Coil Polarity - 1.6L

Courtesy of DAIMLERCHRYSLER CORP.

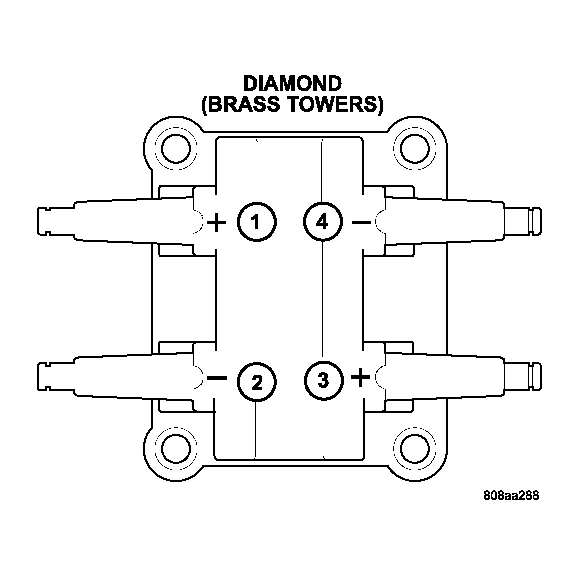

Fig 2: Coil Polarity - 2.0/2.4L

Courtesy of DAIMLERCHRYSLER CORP.
