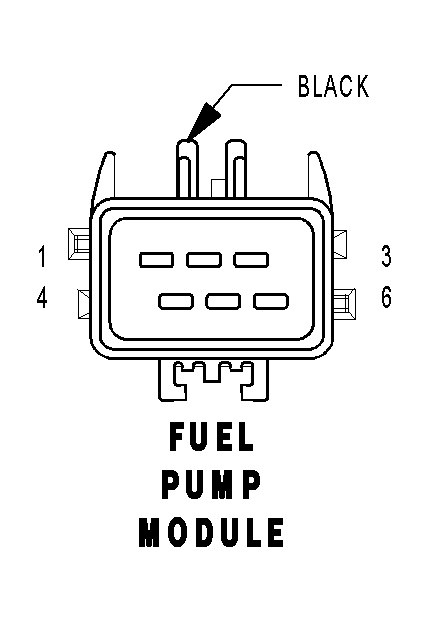

Fuel Pump Module Connector End View
FUEL PUMP MODULE - BLACK 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
N1 16DB/OR |
FUEL PUMP RELAY OUTPUT |
| 2 |
N4 20DB/YL |
FUEL LEVEL SENSOR SIGNAL NO. 1 |
| 3 |
N5 20DB/WT |
FUEL LEVEL SENSOR SIGNAL NO. 2 |
| 4 |
- |
- |
| 5 |
Z210 20BK/LB |
GROUND |
| 6 |
Z201 16BK |
GROUND |
