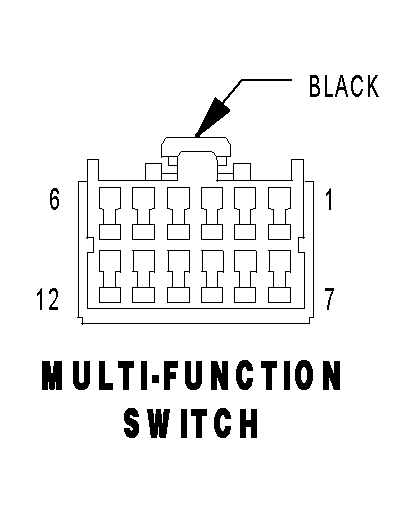

Multifunction Switch Connector End View
MULTI-FUNCTION SWITCH - BLACK 12 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | L306 20LB/WT | RIGHT TURN SWITCH SENSE |
| 4 | L305 22WT/LB | LEFT TURN SWITCH SENSE |
| 5 | E2 22OR/BR | PANEL LAMPS DIMMER SIGNAL |
| 6 | L307 22BR/WT | HEADLAMP SWITCH MUX SENSE |
| 7 | - | - |
| 8 | L87 20WT/OR | FRONT FOG SWITCH SENSE |
| 9 | Z102 20GY/BK | GROUND |
| 10 | L38 20DB/WT | OPTICAL HORN SIGNAL |
| 11 | L37 20WT/BR | HIGH BEAM SWITCH SENSE |
| 12 | L900 22WT/YL | HEADLAMP SWITCH MUX RETURN |
