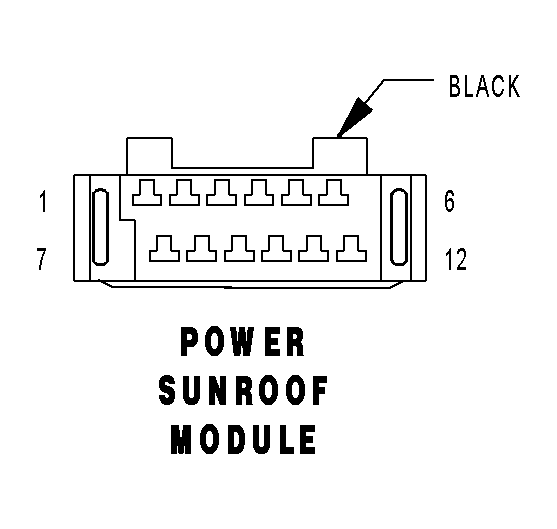

Power Sunroof Module Connector End View
POWER SUNROOF MODULE - BLACK 12 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Q3 20OR/TN |
SUNROOF OPEN |
| 2 |
Q5 20OR/LB |
SUNROOF CLOSE |
| 3 |
Q4 20OR/WT |
SUNROOF VENT |
| 4 |
F316 20PK/OR |
FUSED ACCESSORY RELAY OUTPUT |
| 5 |
A130 12VT/RD |
FUSED B(+) |
| 6 |
Z138 12BK/VT |
GROUND |
| 7 |
- |
- |
| 8 |
- |
- |
| 9 |
- |
- |
| 10 |
- |
- |
| 11 |
- |
- |
| 12 |
- |
- |
