Pacifica Limited
>>
Repair and Diagnosis
>>
Electrical
>>
Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Integrated Power Module
Courtesy of DAIMLERCHRYSLER CORP.

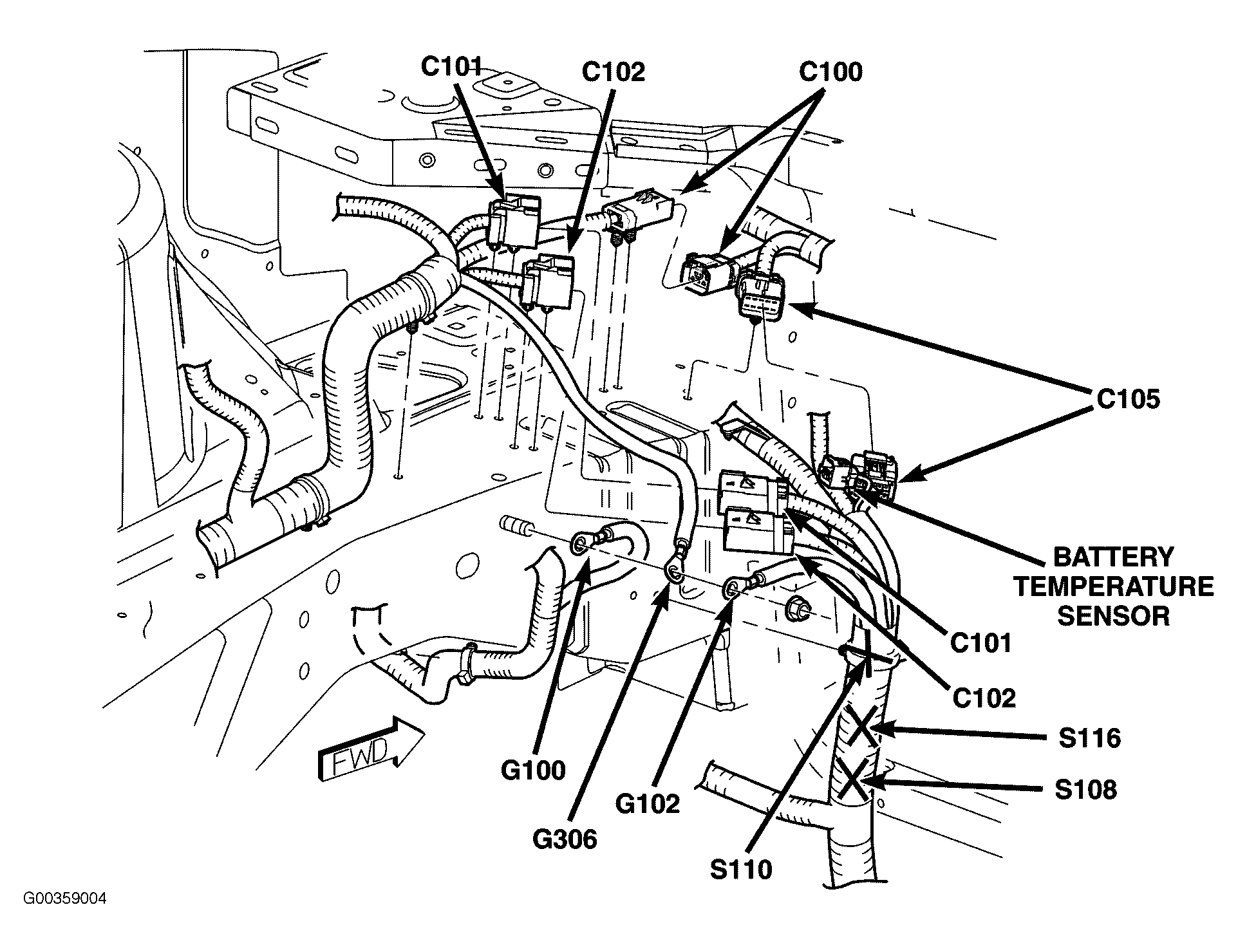

Fig 2: Left Side Of Engine Compartment (3.5L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Left Side Of Engine Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Front Of Engine Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Left Side Of Engine Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 6: Right Side Of Engine Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 7: Left Side Of Engine (3.5L)
Courtesy of DAIMLERCHRYSLER CORP.

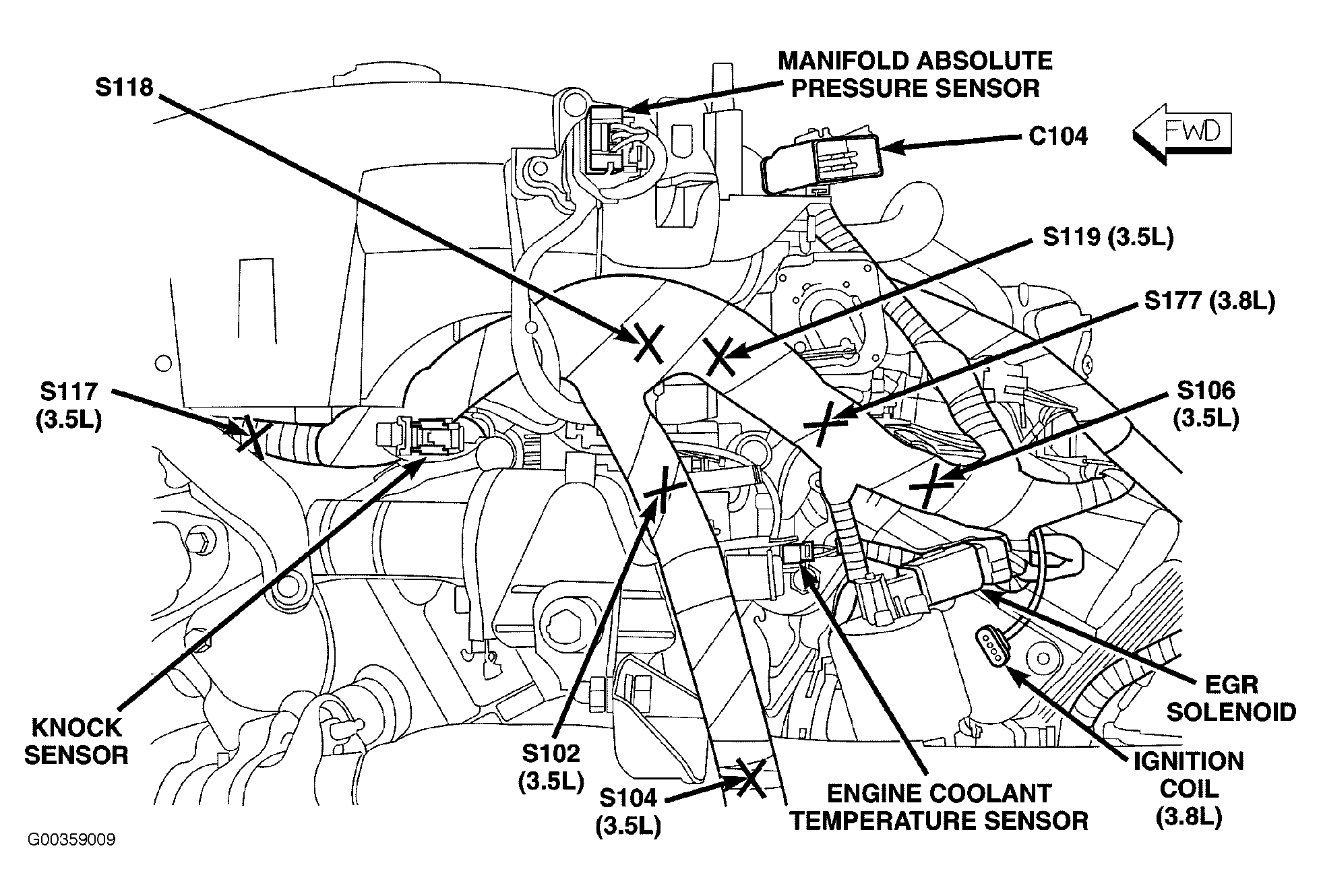

Fig 8: Top Left Of Engine
Courtesy of DAIMLERCHRYSLER CORP.

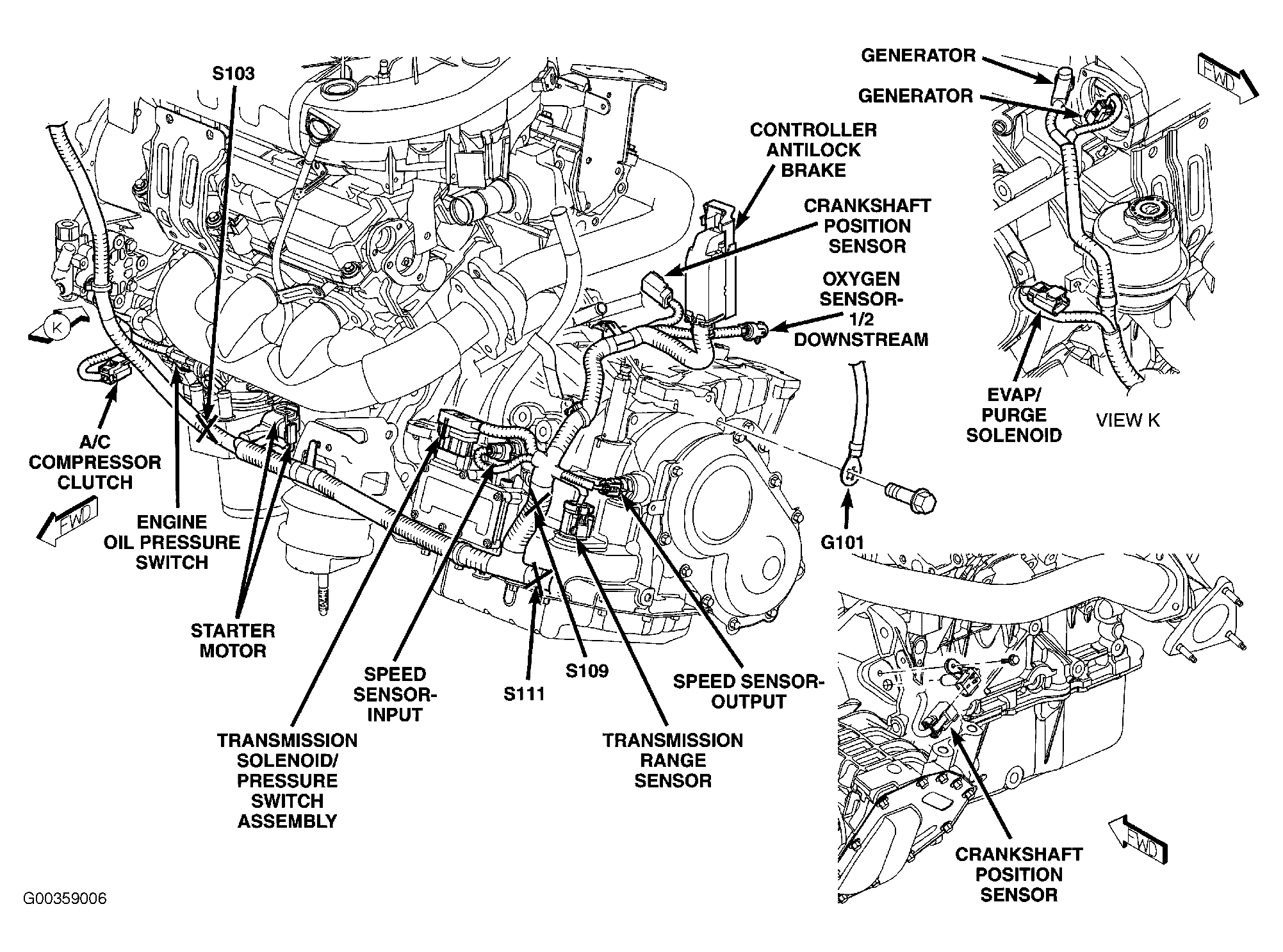

Fig 9: Left Front Of Engine
Courtesy of DAIMLERCHRYSLER CORP.
Fig 10: Top Front Of Engine
Courtesy of DAIMLERCHRYSLER CORP.

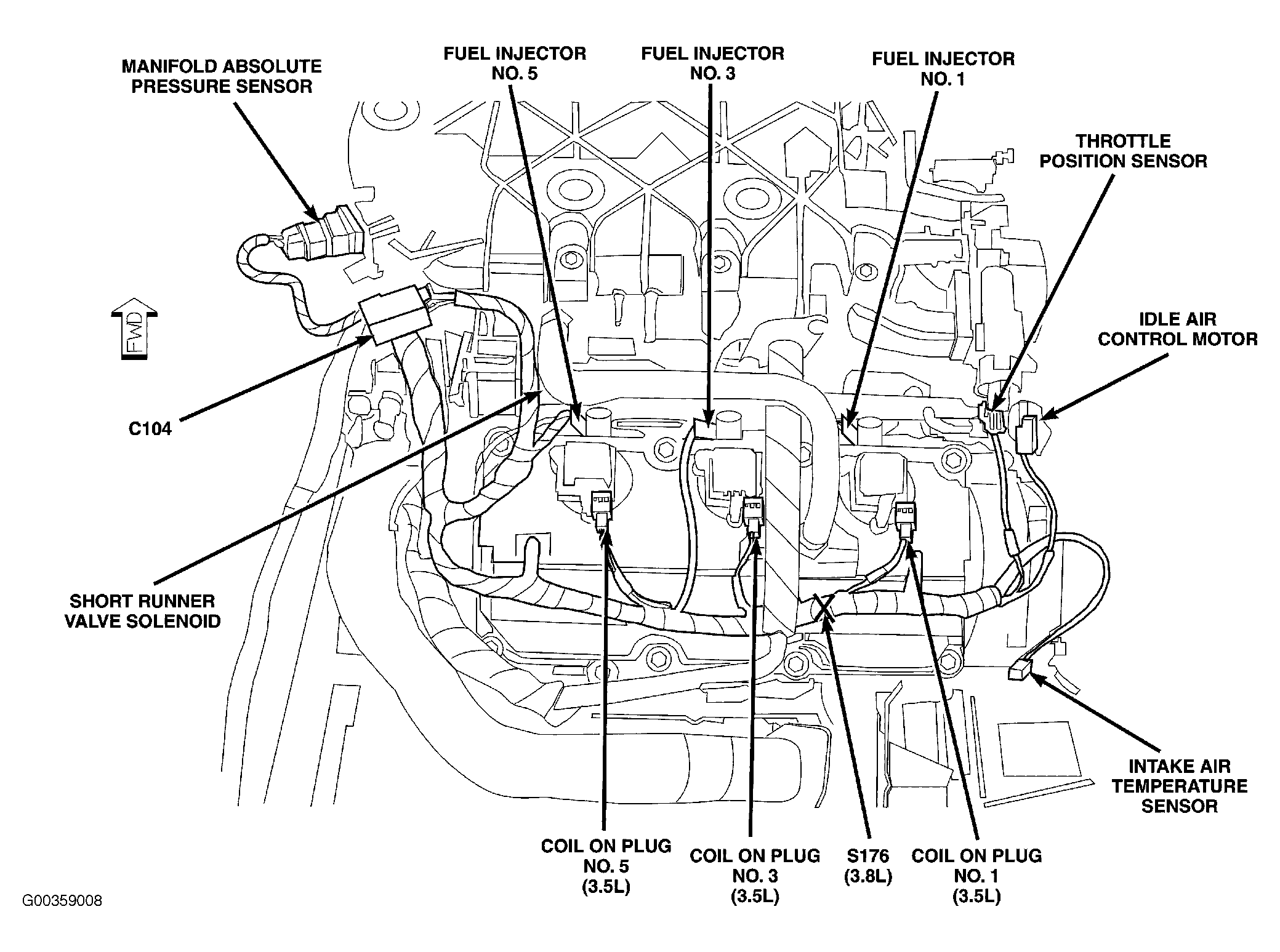

Fig 11: Top Of Engine
Courtesy of DAIMLERCHRYSLER CORP.
Fig 12: HVAC
Courtesy of DAIMLERCHRYSLER CORP.
Fig 13: Rear Of Dash
Courtesy of DAIMLERCHRYSLER CORP.
Fig 14: Rear Of Dash
Courtesy of DAIMLERCHRYSLER CORP.
Fig 15: Steering Wheel
Courtesy of DAIMLERCHRYSLER CORP.
Fig 16: Center Console
Courtesy of DAIMLERCHRYSLER CORP.
Fig 17: Rear Console
Courtesy of DAIMLERCHRYSLER CORP.
Fig 18: Left Kick Panel
Courtesy of DAIMLERCHRYSLER CORP.

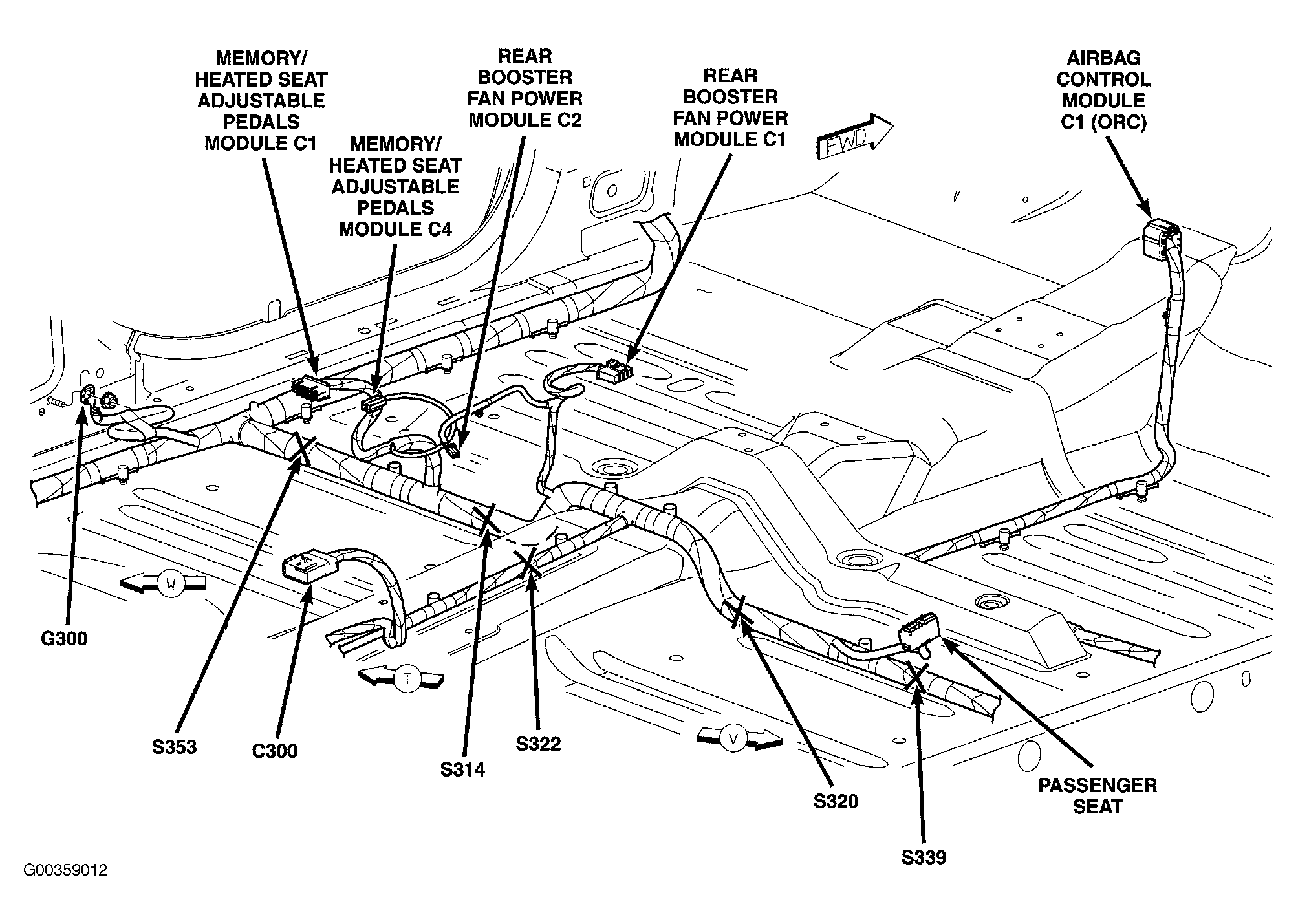

Fig 19: Vehicle Floor
Courtesy of DAIMLERCHRYSLER CORP.
Fig 20: Left Inside Of Body
Courtesy of DAIMLERCHRYSLER CORP.
Fig 21: Left Rear Of Vehicle
Courtesy of DAIMLERCHRYSLER CORP.
Fig 22: Right Side Of Body
Courtesy of DAIMLERCHRYSLER CORP.
Fig 23: Right Rear Of Vehicle
Courtesy of DAIMLERCHRYSLER CORP.
Fig 24: Rear Floor Of Vehicle
Courtesy of DAIMLERCHRYSLER CORP.
Fig 25: Right Rear Of Roof
Courtesy of DAIMLERCHRYSLER CORP.
Fig 26: Right Rear Of Vehicle
Courtesy of DAIMLERCHRYSLER CORP.

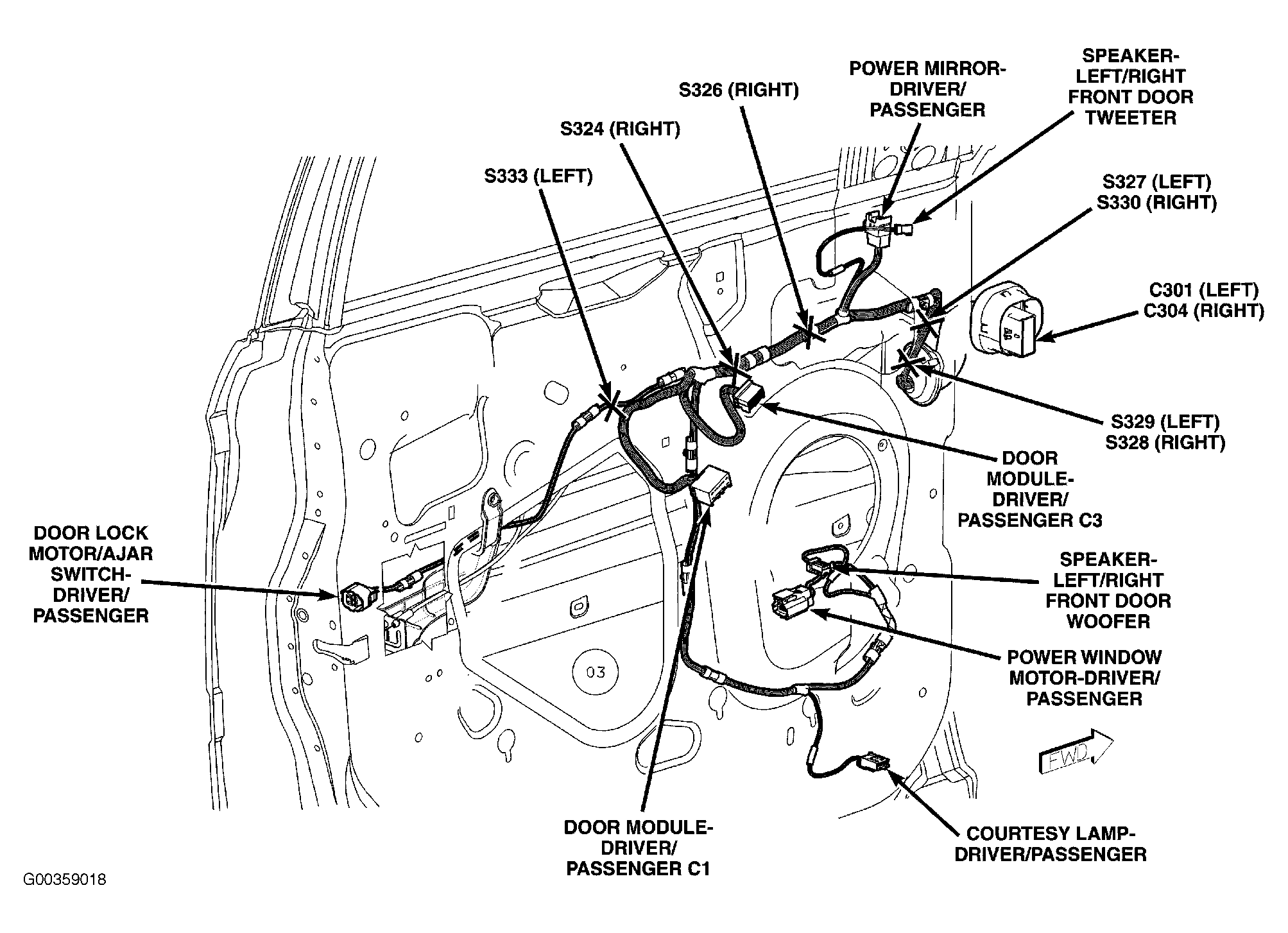

Fig 27: Front Door (Left/Right)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 28: Bottom Of Vehicle
Courtesy of DAIMLERCHRYSLER CORP.
Fig 29: Left/Right Rear Door
Courtesy of DAIMLERCHRYSLER CORP.
Fig 30: Bottom Of Driver Seat
Courtesy of DAIMLERCHRYSLER CORP.
Fig 31: Sides Of Driver Seat
Courtesy of DAIMLERCHRYSLER CORP.
Fig 32: Headliner
Courtesy of DAIMLERCHRYSLER CORP.
Fig 33: Liftgate
Courtesy of DAIMLERCHRYSLER CORP.
Fig 34: Left Side Of Engine Compartment (3.8L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 35: Left Side Of Engine (3.8L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 36: Rear Of Vehicle
Courtesy of DAIMLERCHRYSLER CORP.
Fig 37: Knock Sensor Location - 3.5L
Courtesy of DAIMLERCHRYSLER CORP.
Fig 38: Knock Sensor Location - 3.8L
