Hands Free Module: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the center console between the second row seats.
  3. Remove the mounting fasteners. See Fig 1.

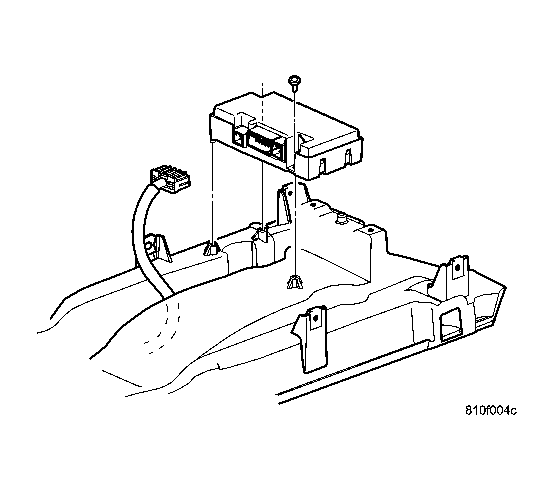

    Fig 1: Hands Free Module
    GC0002417Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the electrical harness connector and remove module.
