Crankshaft Position Sensor: Installation: 3.5L

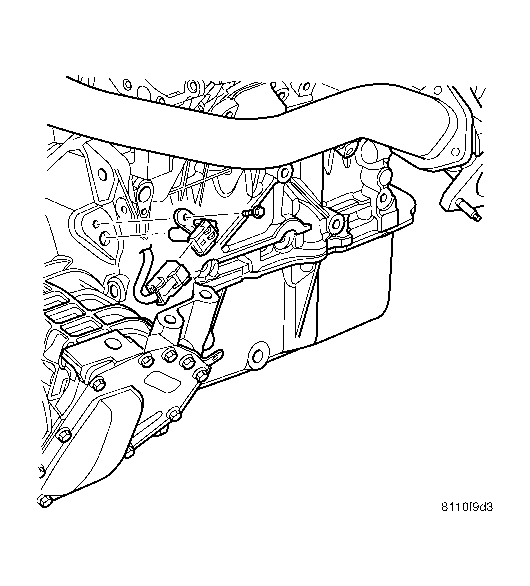

- Install sensor and push sensor down until contact is made with the transmission case. See Fig 1. While holding the sensor in this position, install and tighten the retaining bolt to 12 N.m (105 in. lbs.) torque.
- Connect electrical connector and lock to crankshaft position sensor.
- Install battery.
- Connect the positive then the negative battery cable.
