Camshaft Position Sensor: Installation: 3.8L

Fig 1: CAMSHAFT POSITION SENSOR

Courtesy of DAIMLERCHRYSLER CORP.

1. Camshaft Position Sensor. See Fig 1.

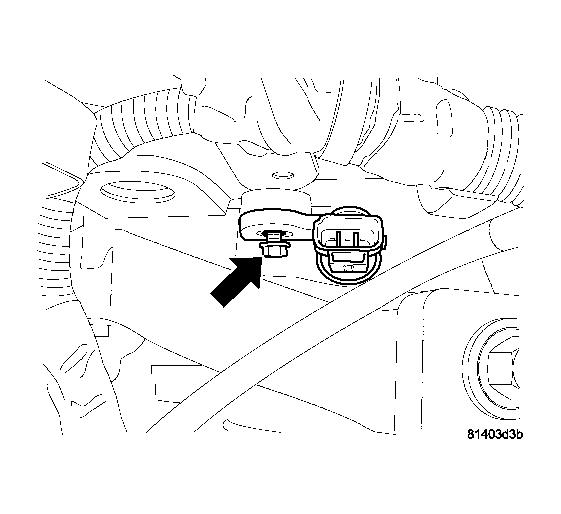

   Fig 2: MOUNTING BOLT LOOSE

   Courtesy of DAIMLERCHRYSLER CORP.
2. Install camshaft position sensor. See Fig 2.

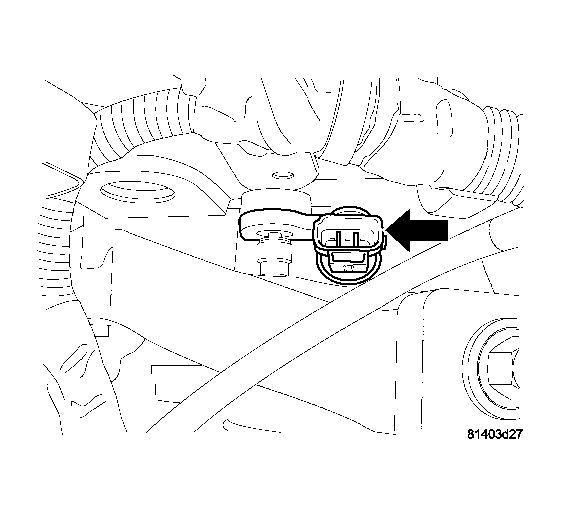

   Fig 3: CAMSHAFT POSITION SENSOR LOCATION

   Courtesy of DAIMLERCHRYSLER CORP.
3. Tighten the mounting bolt to N.m 12 (106 in. lbs.). See Fig 3.
4. Install and lock the camshaft sensor electrical connector.
5. Connect the negative battery cable.
