Natural Vac Leak Detection ASSY: Installation

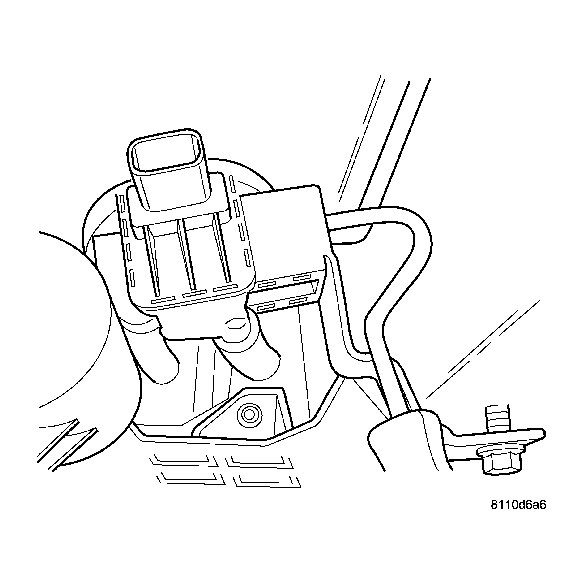

Fig 1: UNLOCKING TAB FOR NVLD

Courtesy of DAIMLERCHRYSLER CORP.

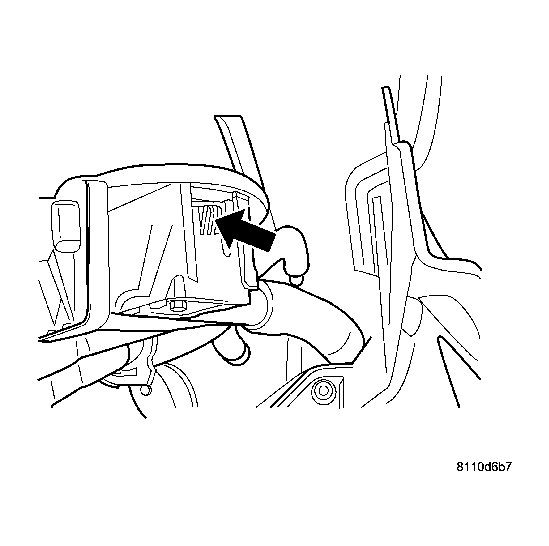

Fig 2: LOCKING TAB

Courtesy of DAIMLERCHRYSLER CORP.

1. Slide. See Fig 1 the Natural Vacuum Leak Detection pump. See Fig 2 onto the bracket and make sure that the tab locks into the bracket.

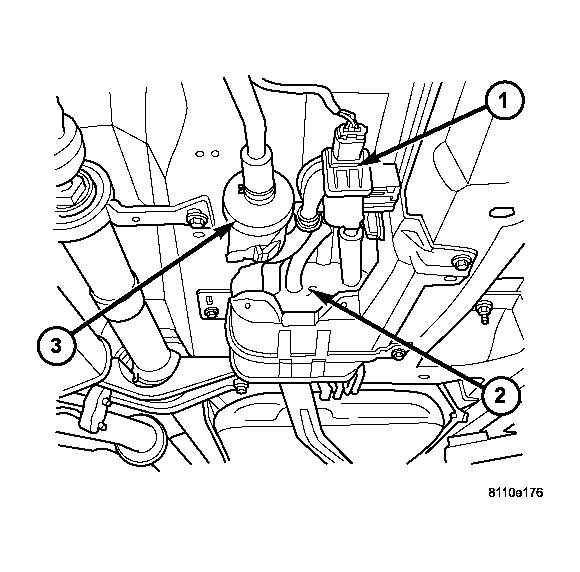

   Fig 3: NVLD/EVAP CANISTER ASSEMBLY

   Courtesy of DAIMLERCHRYSLER CORP.
2. Install hoses and clamps.
3. Connect the electrical connector. See Fig 3 and lock.
4. Lower vehicle.
5. Connect the negative battery cable.
