Component Locations: Sensor

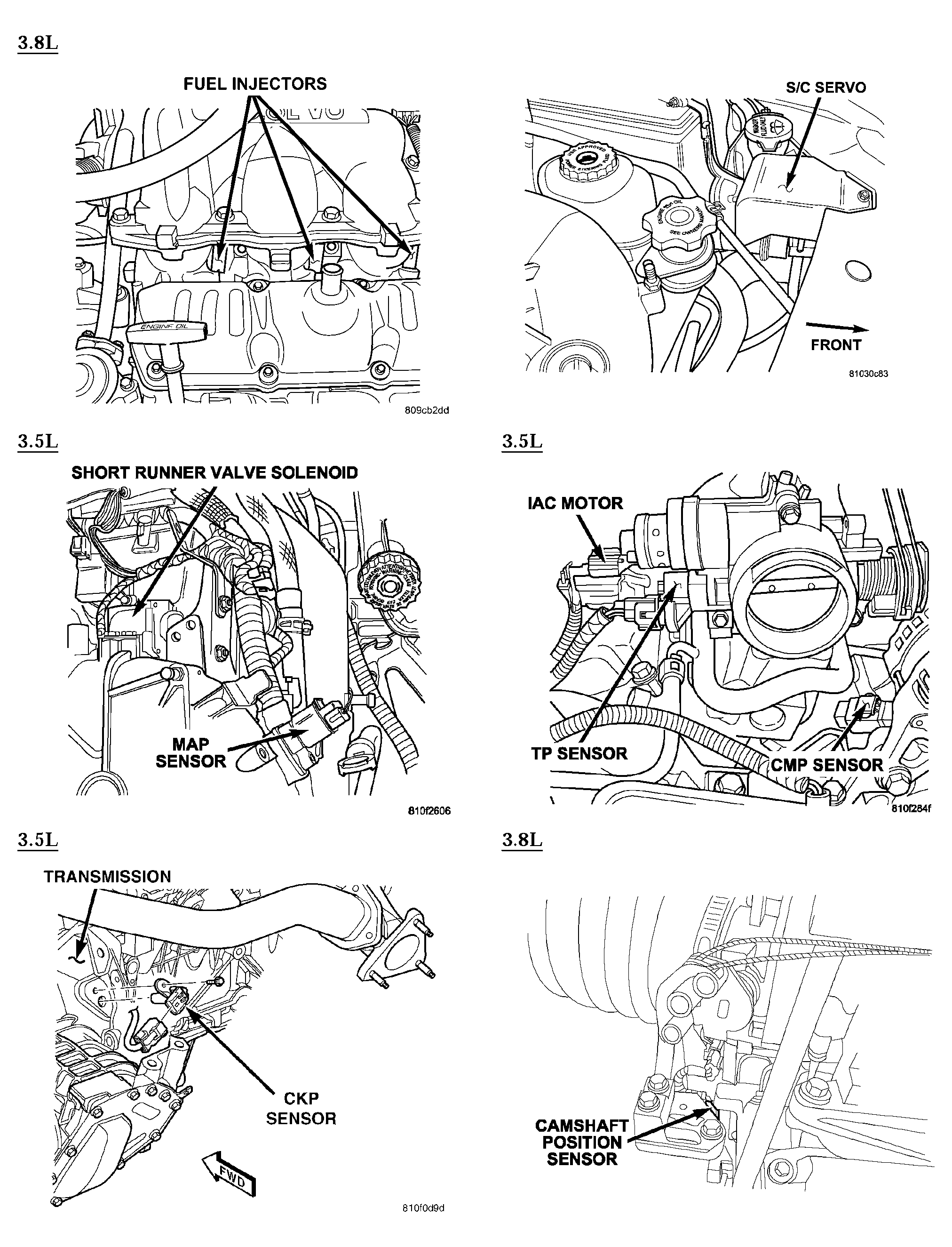

Fig 1: Identifying Sensor Component Locations (1 Of 2)
G04528081Courtesy of DAIMLERCHRYSLER CORP.

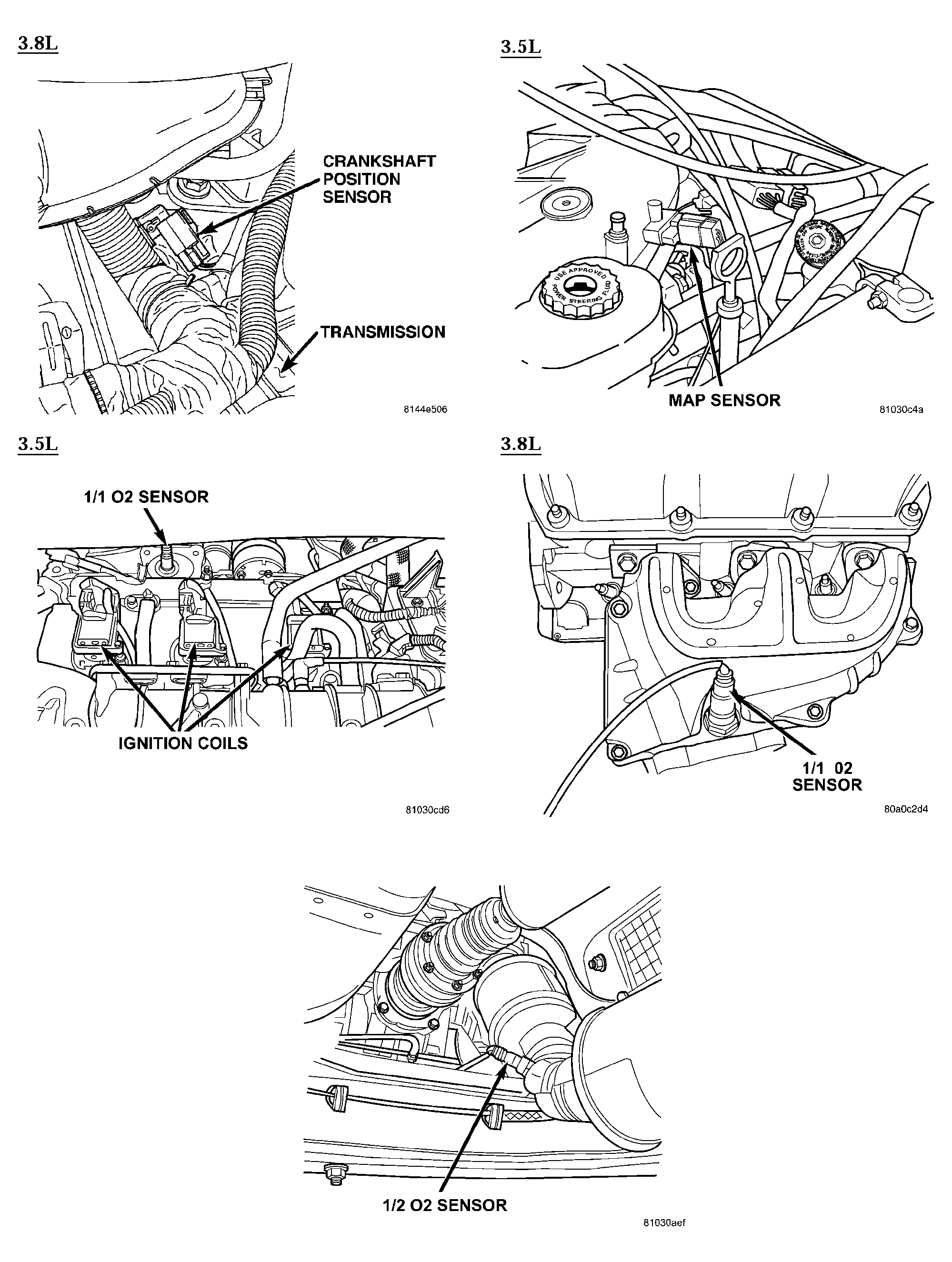

Fig 2: Identifying Sensor Component Locations (2 Of 2)
G04528082Courtesy of DAIMLERCHRYSLER CORP.
