Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Integrated Power Module
Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Right Front Of Engine Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Right Front Of Engine Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Front Of Engine Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Right Side Of Engine Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 6: Right Inner Fender Shield
Courtesy of DAIMLERCHRYSLER CORP.
Fig 7: Left Rear Of Engine Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 8: Rear Of Engine Compartment (V8)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 9: Right Rear Of Engine (2.7L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 10: Left Rear Of Engine (2.7L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 11: Front Of Engine (3.5L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 12: Right Rear Of Engine (3.5L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 13: Left Rear Of Engine (3.5L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 14: Left Side Of Engine (3.5L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 15: Right Front Of Engine (5.7L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 16: Locating Knock Sensor (5.7L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 17: Right Rear Of Engine (5.7L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 18: Left Rear Of Engine (5.7L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 19: Transmission
Courtesy of DAIMLERCHRYSLER CORP.
Fig 20: HVAC Unit
Courtesy of DAIMLERCHRYSLER CORP.
Fig 21: Instrument Panel
Courtesy of DAIMLERCHRYSLER CORP.
Fig 22: Left Side Of Dash
Courtesy of DAIMLERCHRYSLER CORP.
Fig 23: Steering Column
Courtesy of DAIMLERCHRYSLER CORP.
Fig 24: Left Side Of Dash
Courtesy of DAIMLERCHRYSLER CORP.
Fig 25: Center/Left Side Of Dash
Courtesy of DAIMLERCHRYSLER CORP.
Fig 26: Center Of Dash
Courtesy of DAIMLERCHRYSLER CORP.
Fig 27: Center/Right Side Of Dash
Courtesy of DAIMLERCHRYSLER CORP.
Fig 28: Right Side Of Dash
Courtesy of DAIMLERCHRYSLER CORP.
Fig 29: Left "A" Pillar
Courtesy of DAIMLERCHRYSLER CORP.
Fig 30: Left Side Of Passenger Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 31: Right Front Of Passenger Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 32: Driver Seat
Courtesy of DAIMLERCHRYSLER CORP.
Fig 33: Passenger Seat
Courtesy of DAIMLERCHRYSLER CORP.
Fig 34: Left Side Of Passenger Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 35: Right Side Of Passenger Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 36: Left Side Of Vehicle
Courtesy of DAIMLERCHRYSLER CORP.
Fig 37: Driver Door (Right Front Door Similar)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 38: Left/Right Rear Door
Courtesy of DAIMLERCHRYSLER CORP.
Fig 39: Left Rear Quarterpanel (300, 300C)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 40: Left Rear Quarterpanel (Magnum)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 41: Right Rear Quarterpanel (300, 300C)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 42: Right Rear Quarterpanel (Magnum)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 43: Headliner
Courtesy of DAIMLERCHRYSLER CORP.
Fig 44: Headliner
Courtesy of DAIMLERCHRYSLER CORP.
Fig 45: Left Rear Of Trunk (300, 300C)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 46: Left Rear Of Cargo Area (Magnum)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 47: Right Rear Of Cargo Area (Magnum)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 48: Trunk (300, 300C)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 49: Liftgate (Magnum)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 50: Trunk Battery
Courtesy of DAIMLERCHRYSLER CORP.
Fig 51: Rear Of Vehicle
Courtesy of DAIMLERCHRYSLER CORP.
Fig 52: Rear Fascia
Courtesy of DAIMLERCHRYSLER CORP.
Fig 53: HVAC Unit
Courtesy of DAIMLERCHRYSLER CORP.
Fig 54: Steering Column
Courtesy of DAIMLERCHRYSLER CORP.
Fig 55: Rear Cargo Area
Courtesy of DAIMLERCHRYSLER CORP.
Fig 56: Power Distribution Center
Courtesy of DAIMLERCHRYSLER CORP.
Fig 57: Right Side Of Engine Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 58: Left Side Of Engine
Courtesy of DAIMLERCHRYSLER CORP.

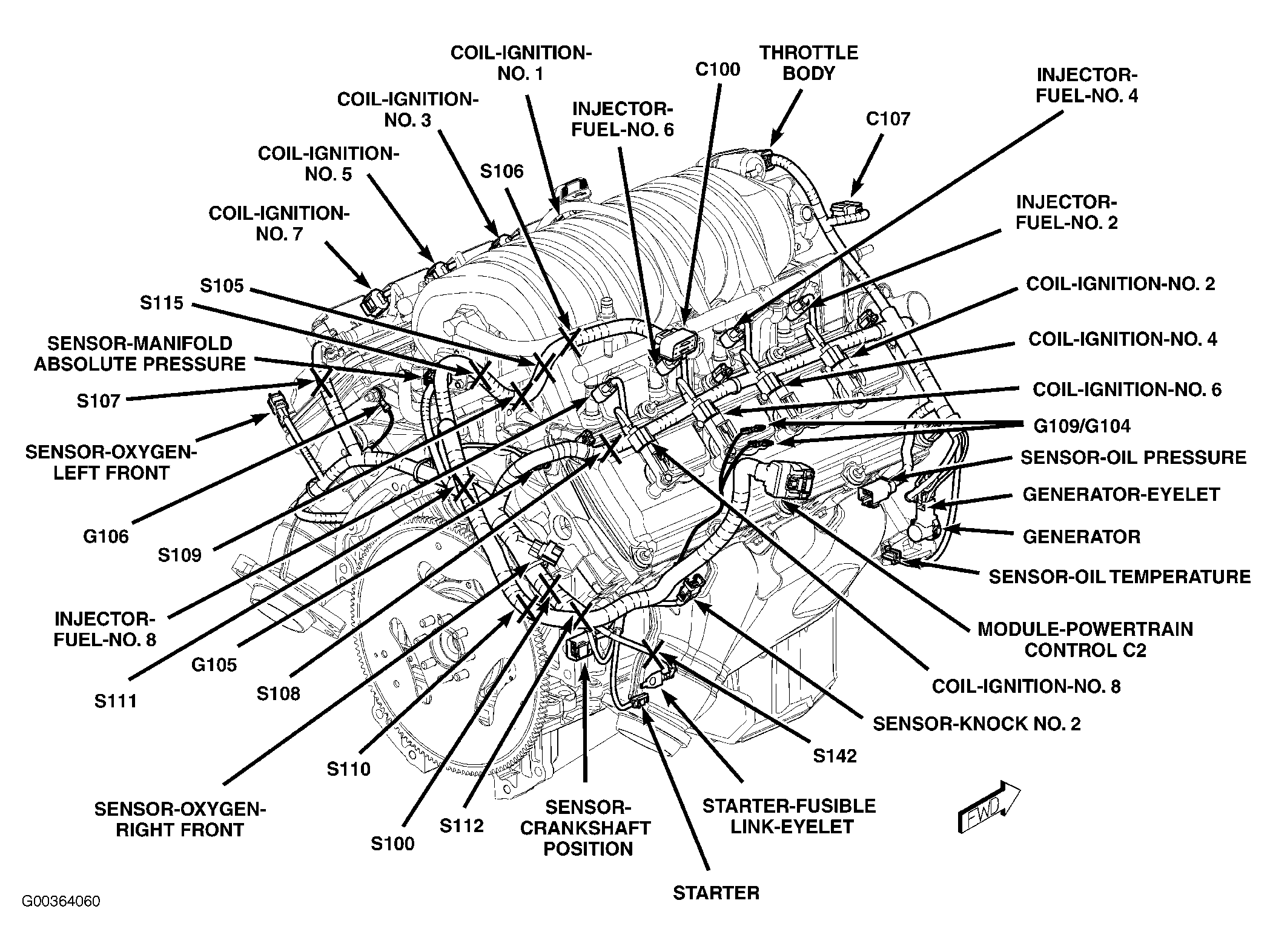

Fig 59: Right Rear Of Engine (6.1L)
Courtesy of DAIMLERCHRYSLER CORP.

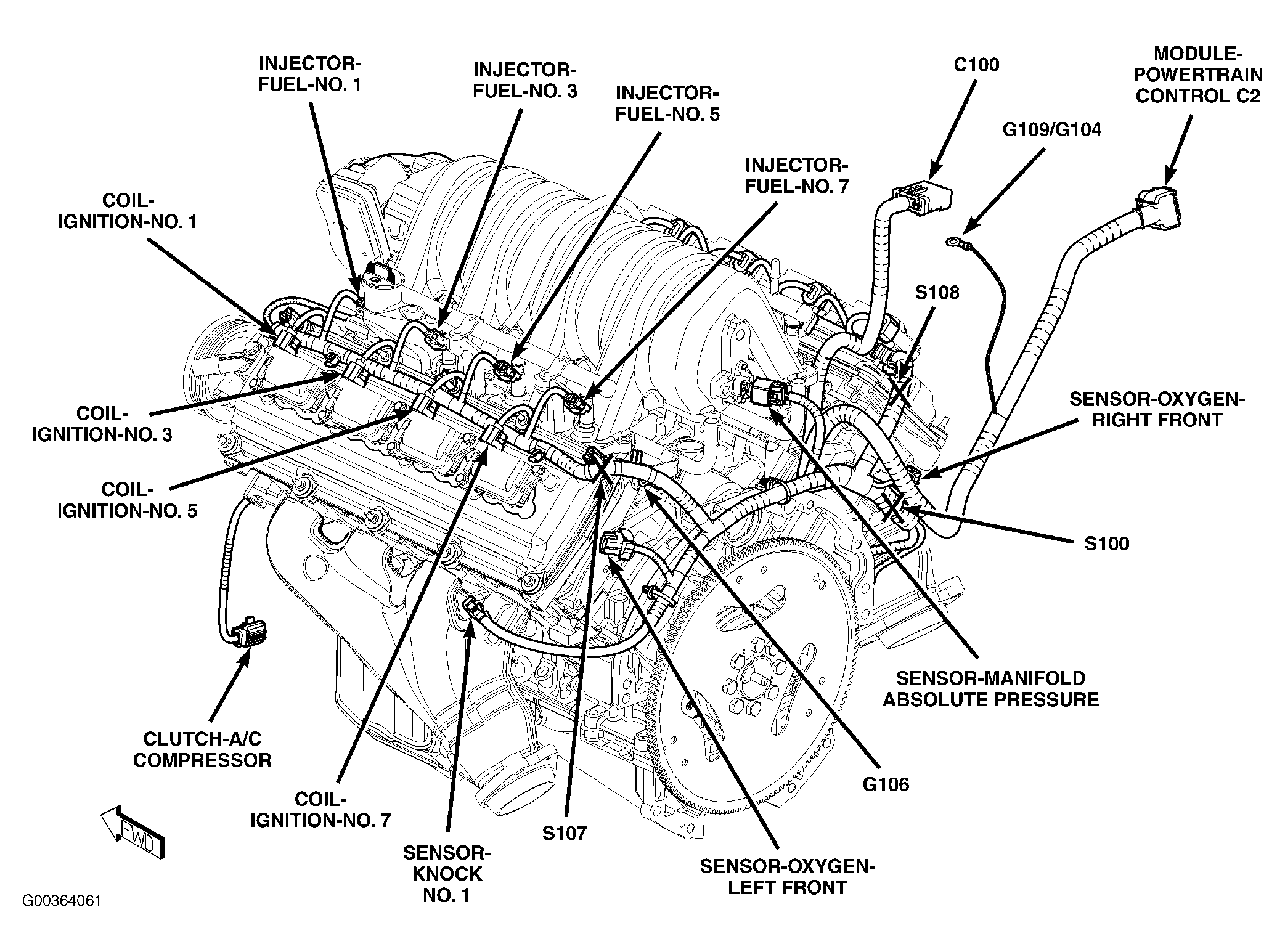

Fig 60: Left Rear Of Engine (6.1L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 61: Police Fuse/Relay Block
Courtesy of DAIMLERCHRYSLER CORP.
Fig 62: Top Of Engine (3.5L)
Courtesy of DAIMLERCHRYSLER CORP.
