Sentry Key Remote Entry Module Connector End View (C2)

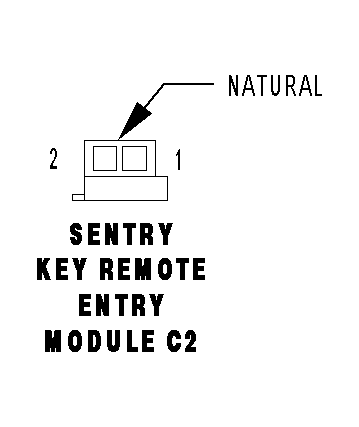

SENTRY KEY REMOTE ENTRY MODULE C2 - NATURAL 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	22DG	CAN C BUS (-)
2	22WT	CAN C BUS (+)
