Engine Fuse Block: Installation

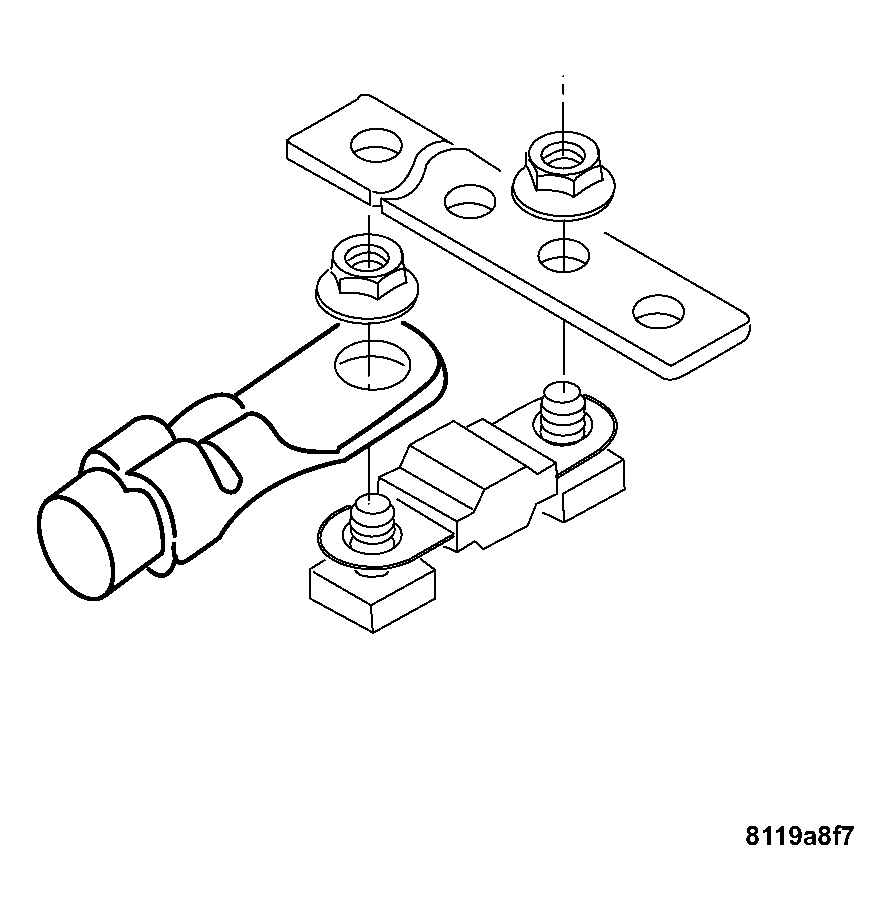

Fig 1: Electrical Leads To Engine Fuse Block
GC0035891Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the engine fuse onto the studs.
  2. Install the plate and the electrical lead to the engine fuse block.
    Fig 2: Engine Fuse Block Lid
    GC0035890Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the negative battery cable.
  4. Close the lid (1) to the engine fuse block.
  5. Close the hood.
