Air Pump: Installation: Notes

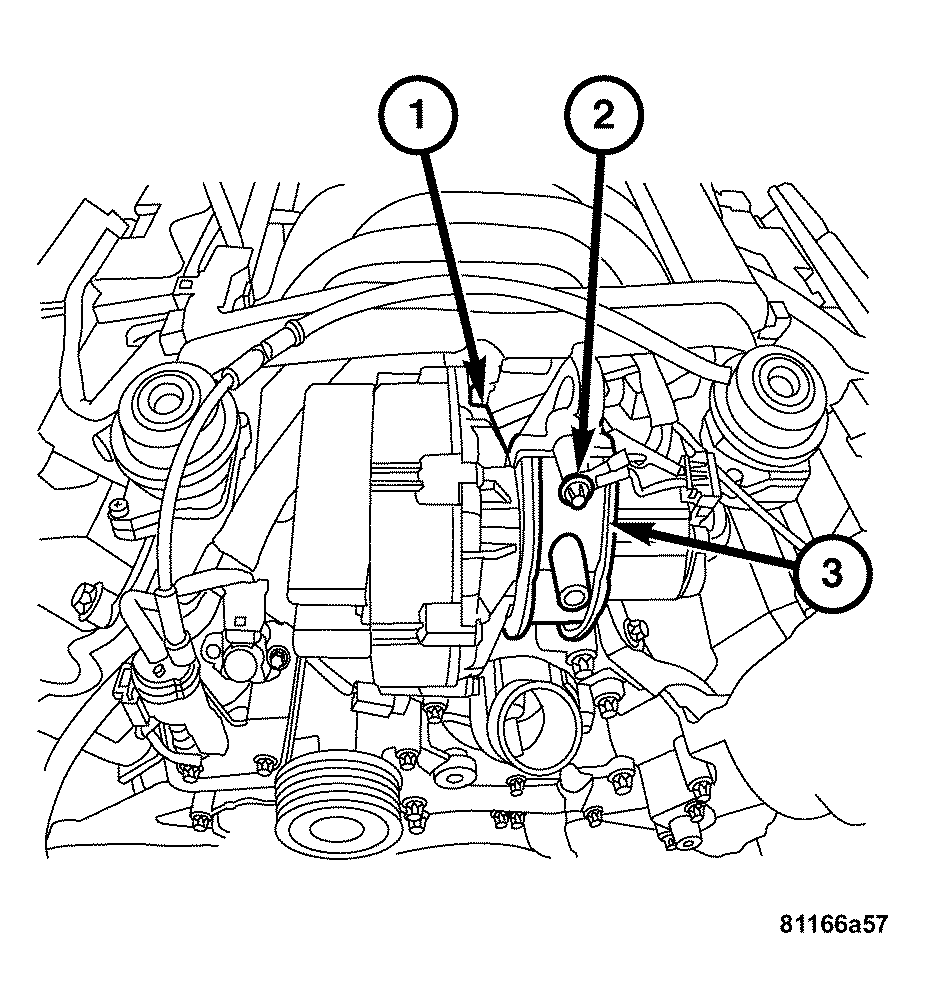

Fig 1: Locating Air Pump, Bracket & Retaining Bolt (3.2L)
GC0033621Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the air pump (1) into the air pump retaining bracket (3).
  2. Install the air pump retaining bolt (2). Tighten bolt to 20 N.m (177 in. lbs.).

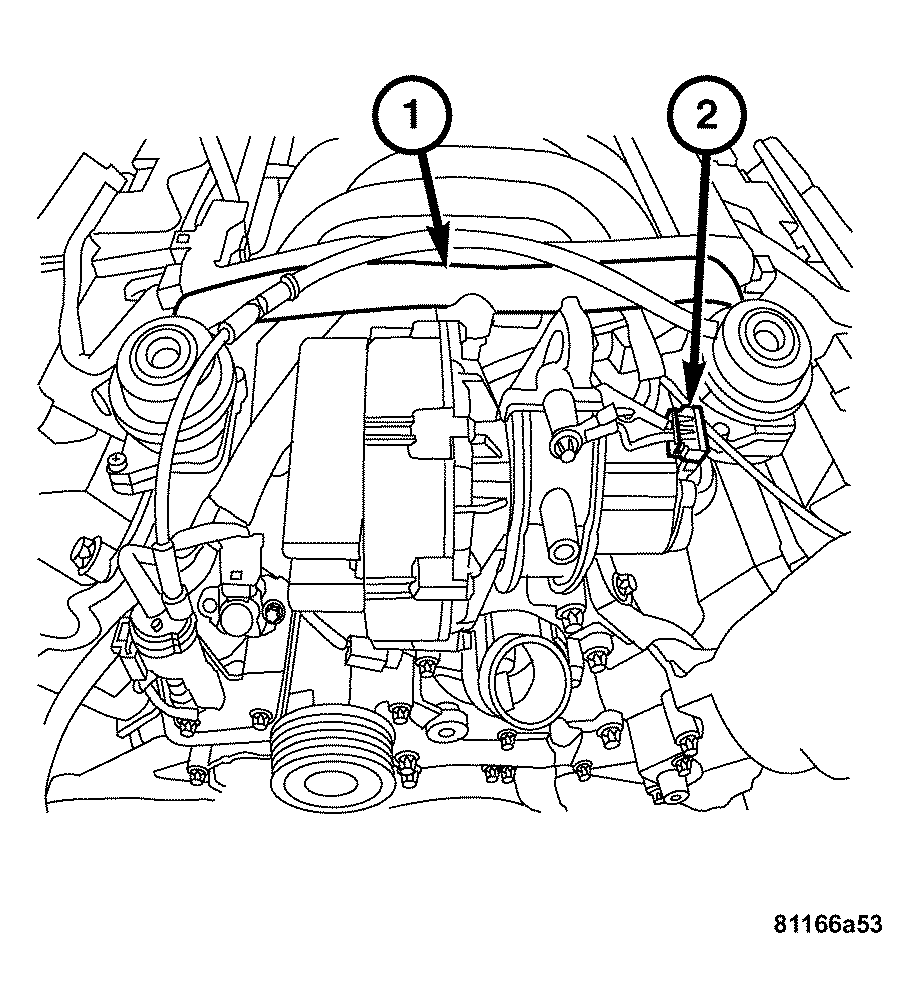

    Fig 2: Connecting Switchover Tube & Harness Connector (3.2L)
    GC0033622Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the air pump harness connector (2).
  4. Connect the air pump switchover tube (1).
  5. Install the air cleaner housing.
  6. Connect the negative battery cable.
