O2 Sensor Locations (3.8L)

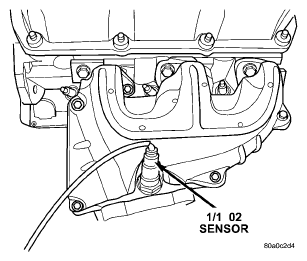

Fig 1: Identifying 1/1 O2 Sensor (3.8L)

G04762142

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Identifying 1/2 O2 Sensor (3.8L)

G04762143

Courtesy of DAIMLERCHRYSLER CORPORATION
