Input Speed Sensor Connector End View
Input Speed Sensor Connector End View

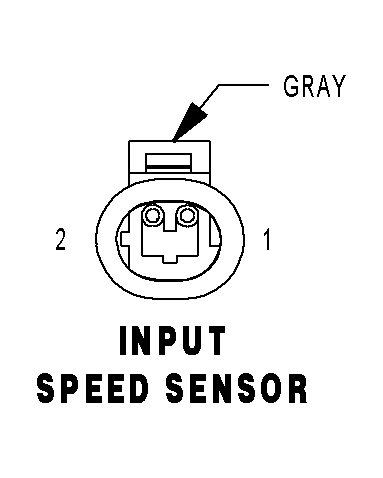

INPUT SPEED SENSOR - GRAY 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
T13 18DB/BK
SPEED SENSOR GROUND
2
T52 18RD/BK
INPUT SPEED SENSOR SIGNAL
Courtesy of DAIMLERCHRYSLER CORP.
