Left Speed Control Switch Connector End View

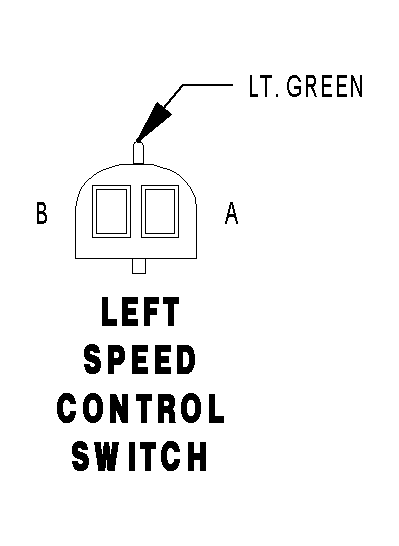

LEFT SPEED CONTROL SWITCH - LT. GREEN 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
A	V37 22RD/LG	S/C SWITCH SIGNAL
B	Z123 22BK/LB	GROUND
