Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

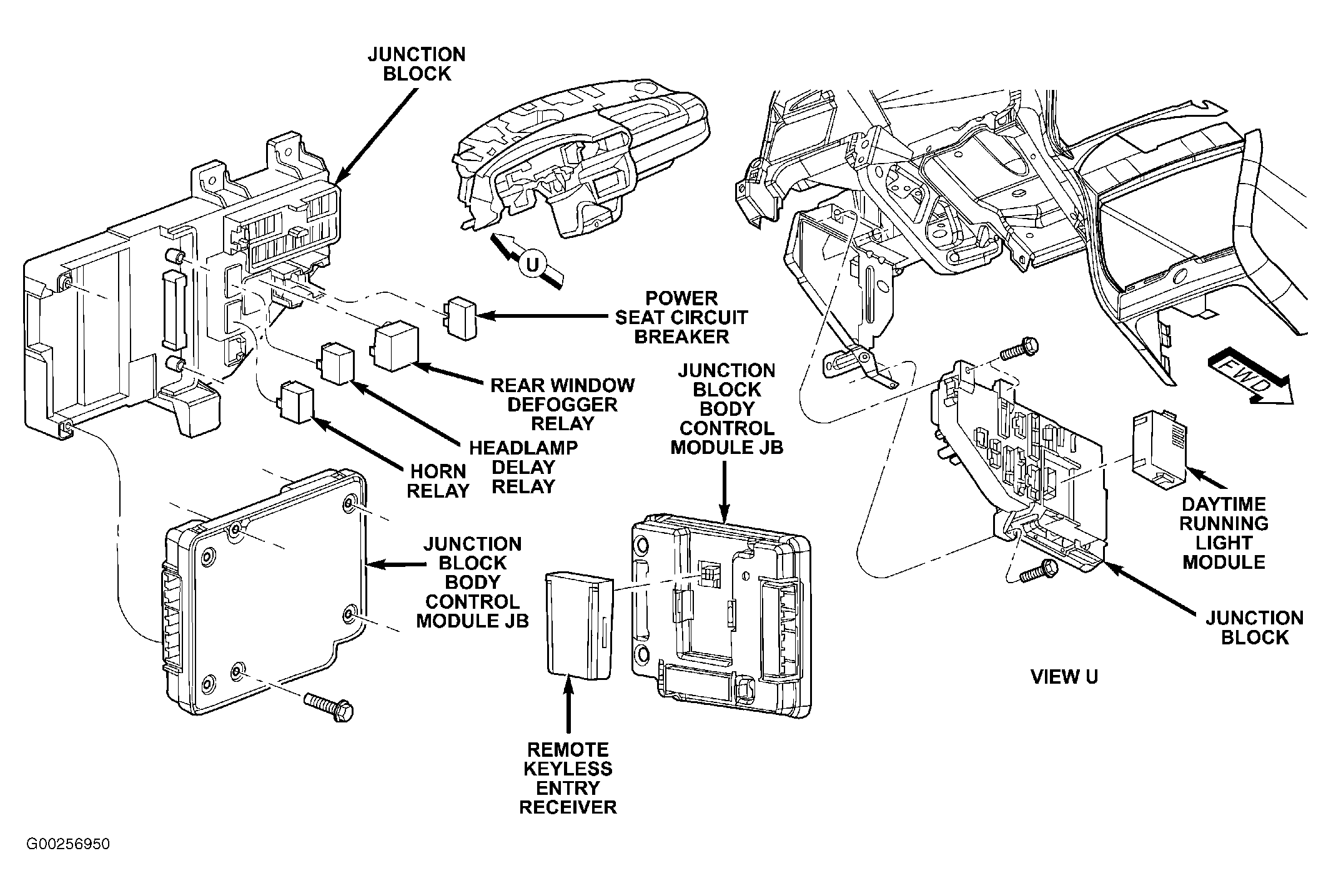

| Junction Block |
Left kick panel. See Figure
. |
| Power Distribution Center |
On left front inner fender. See Figure
. |
| Power Seat Circuit Breaker |
On junction block. See Figure
. |
