Map Sensor: Description

The MAP sensor mounts to the driver side of the intake manifold plenum or See Fig 1.Figure.

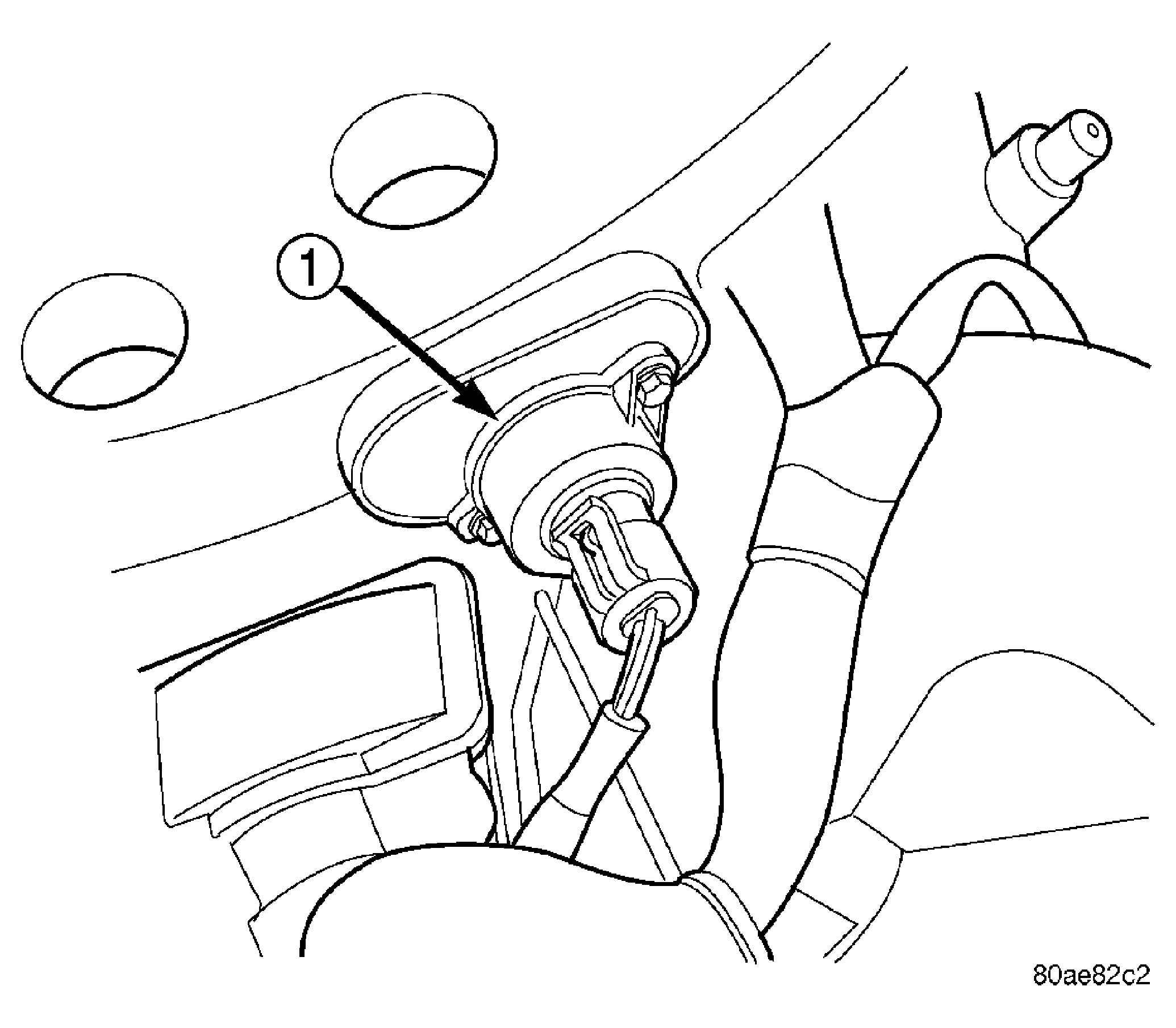

Fig 1: MAP Sensor 2.7L

GC0047724

Courtesy of DAIMLERCHRYSLER CORP.

1 - MAP SENSOR
