Ignition Coil: Installation: 2.7L

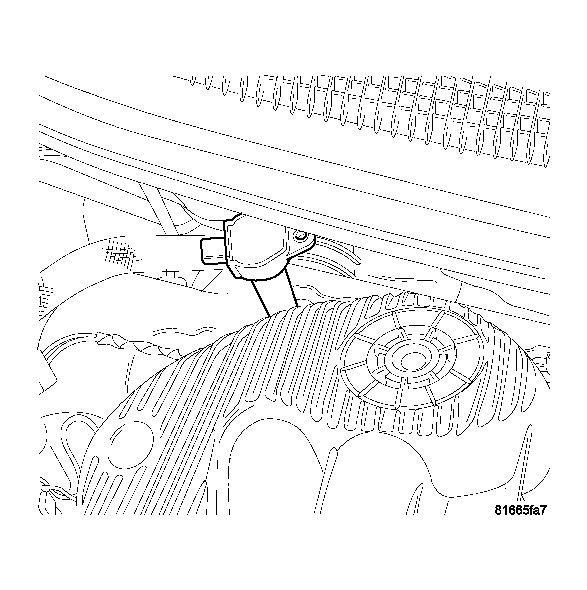

Fig 1: Locating Rear Passenger Side Coil
GC0047779Courtesy of DAIMLERCHRYSLER CORP.
  1. Align passenger side coil with top of spark plug.
  2. Twist center coil assembly down on to spark plug and valve cover. Install mounting bolt and tighten to 7.5 N.m (65 in. lbs.).
  3. Connect the electrical connector to coil.

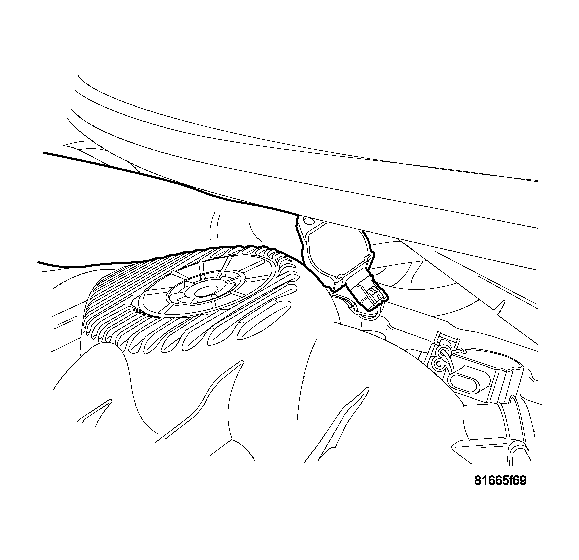

    Fig 2: Rear Center Coils Removal/Install
    GC0047777Courtesy of DAIMLERCHRYSLER CORP.
  4. Align center coil with top of spark plug.
  5. Twist center coil assembly down on to spark plug and valve cover. Install mounting bolt and tighten to 7.5 N.m (65 in. lbs.).

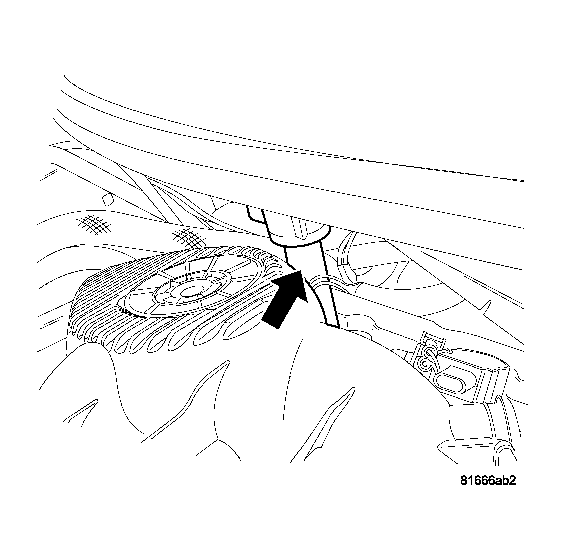

    Fig 3: Locating Rear Center Ignition Coil
    GC0047781Courtesy of DAIMLERCHRYSLER CORP.
  6. Connect the electrical connector to coil.
  7. Align coil with top of spark plug.
  8. Twist center coil assembly down on to spark plug and valve cover. Install mounting bolt and tighten to 7.5 N.m (65 in. lbs.).

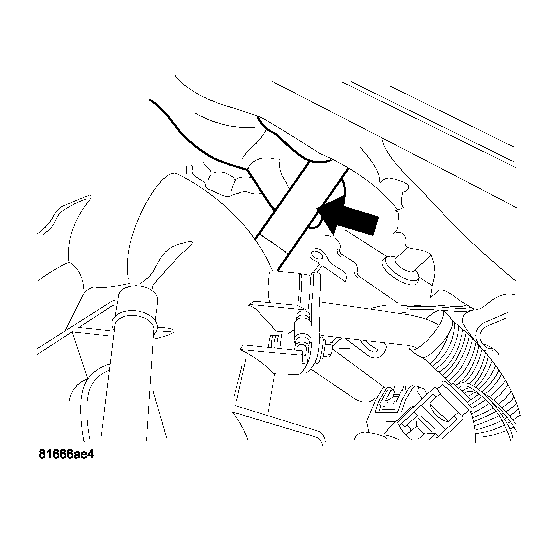

    Fig 4: Removal Of Rear Driver Side Coil
    GC0047784Courtesy of DAIMLERCHRYSLER CORP.
  9. Angle coil from rear of vehicle into valve cover.

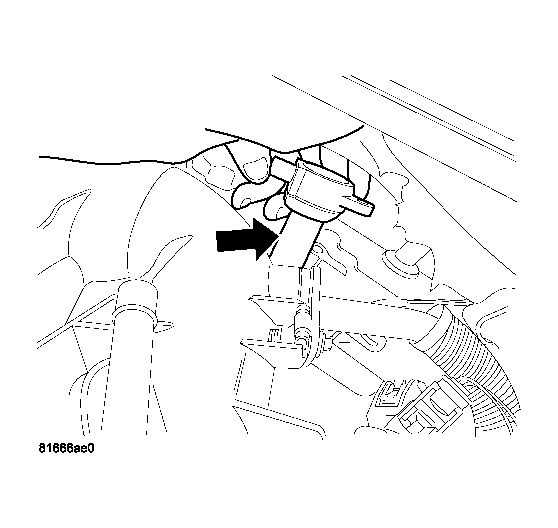

    Fig 5: Twisting Rear Driver Side Ignition Coil
    GC0047783Courtesy of DAIMLERCHRYSLER CORP.
  10. Align coil with top of spark plug.

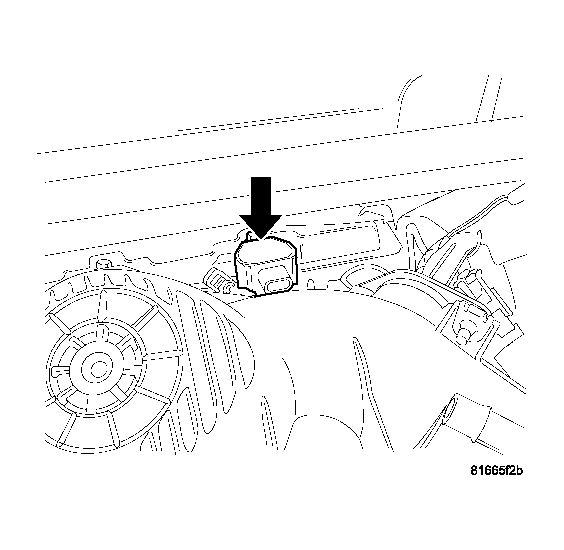

    Fig 6: Locating Rear Driver Side Coil
    GC0047775Courtesy of DAIMLERCHRYSLER CORP.
  11. Twist driver side coil assembly down on to spark plug and valve cover. Install mounting bolt and tighten to 7.5 N.m (65 in. lbs.).
  12. Connect the electrical connector to coil.

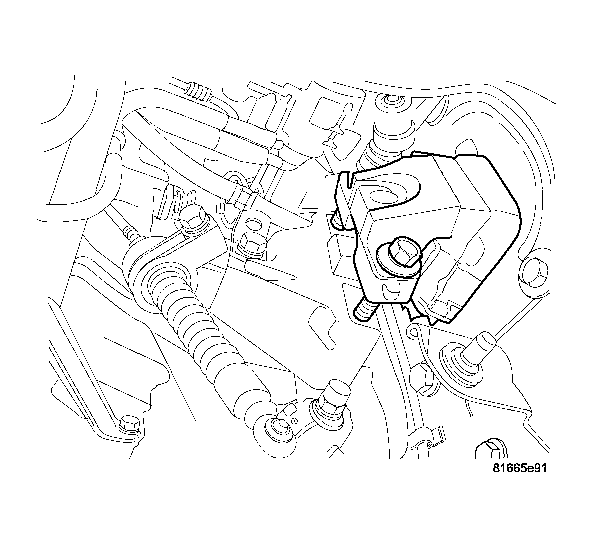

    Fig 7: Loosened Transmission Mount
    GC0047773Courtesy of DAIMLERCHRYSLER CORP.
  13. Raise engine and transmission.
  14. Tighten the transmission mount, torque fasteners to 61 N.m (45 ft. lbs.).
  15. Remove floor jack from under engine.
  16. Install the air cleaner box. For 2.4L, (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLATION) . For 2.7L, (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLATION) .
