Connecting Tube: Installation

  1. Route tube.
  2. Connect to one way check valve and tube to air pump. See Figure and Figure.
  3. Install air inlet duct to air cleaner box. See Figure.

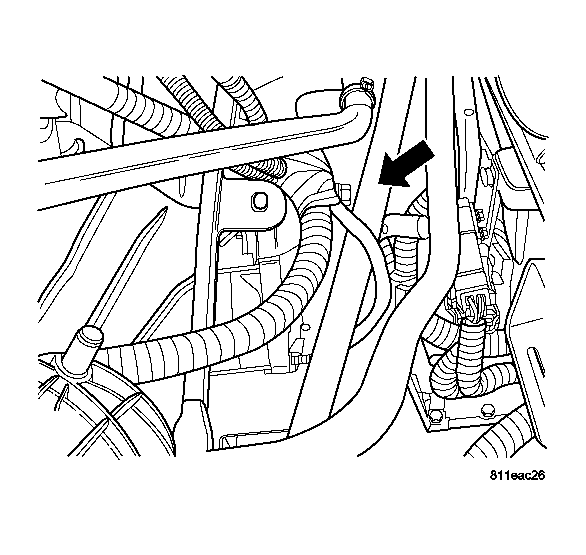

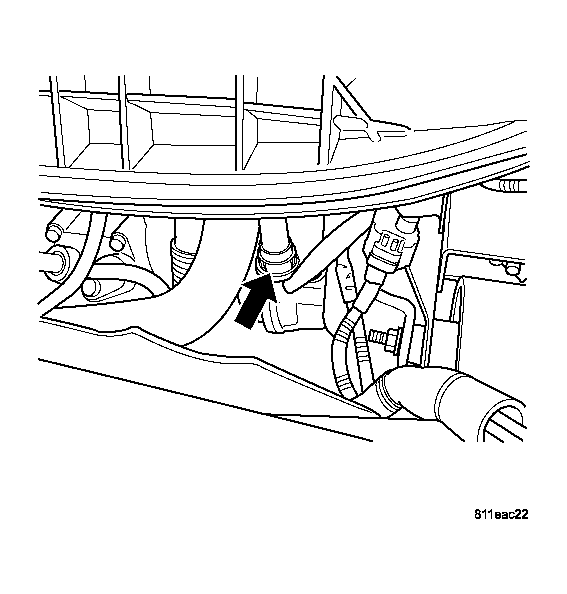

Fig 1: Connector Tube Routing (1 Of 3)
GC0031937Courtesy of DAIMLERCHRYSLER CORP.

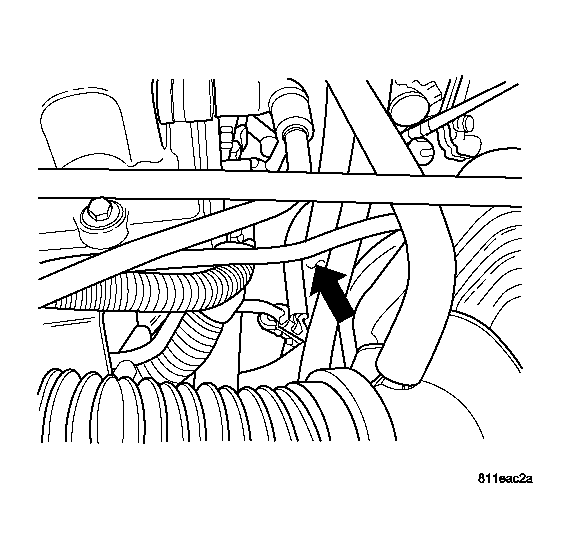

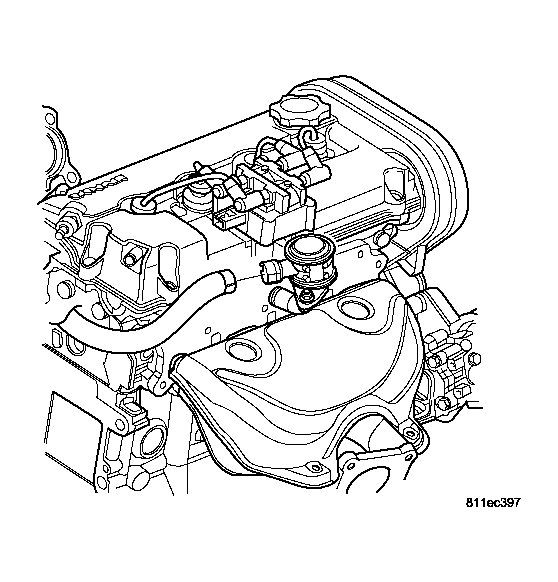

Fig 2: Connector Tube Routing (2 Of 3)
GC0031938Courtesy of DAIMLERCHRYSLER CORP.

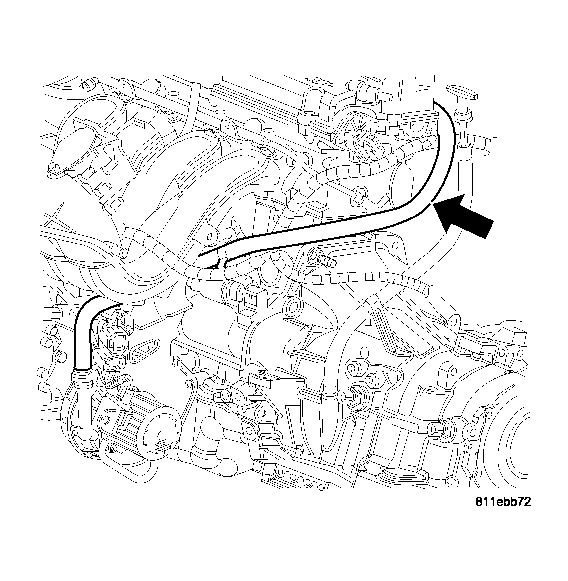

Fig 3: Connector Tube Routing (3 Of 3)
GC0031940Courtesy of DAIMLERCHRYSLER CORP.
