Generator - 3.0L Diesel

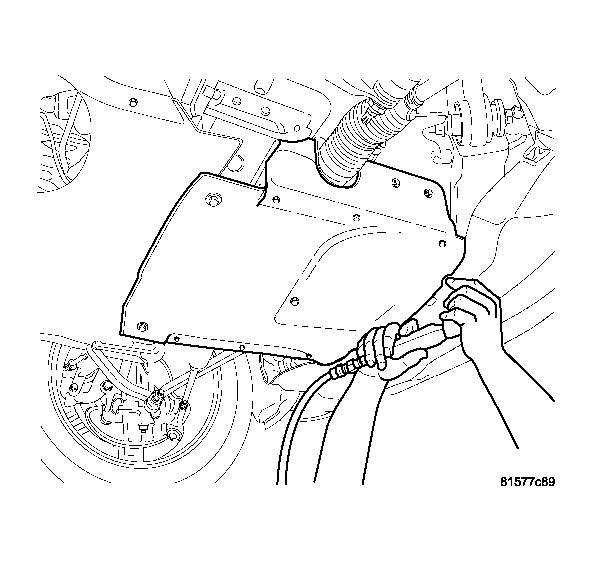

Fig 1: Identifying Belly Pans

Courtesy of CHRYSLER LLC

Disconnect negative battery cable.
Raise vehicle and support.
Remove front belly pan.

Fig 2: Removal Of Middle Pan
Courtesy of CHRYSLER LLC
Remove middle belly pan.
Remove rear belly pan.

Fig 3: Removing/Installing Side Shield
Courtesy of CHRYSLER LLC
Remove side covers.

Fig 4: Removing/Installing Sway Bar Heat Shield
Courtesy of CHRYSLER LLC
Remove sway bar heat shields.

Fig 5: Removing/Installing Sway Bar Mounts
Courtesy of CHRYSLER LLC
Remove sway bar brackets.

Fig 6: Relocating Sway Bar
Courtesy of CHRYSLER LLC
Swing sway bar down and out of the way.

Fig 7: Clamping/Unclamping Front Heater Hose
Courtesy of CHRYSLER LLC
Clamp front heater hose.

Fig 8: Clamping/Unclamping Rear Heater Hose
Courtesy of CHRYSLER LLC
Clamp rear heater hose.

Fig 9: Disconnecting/Connecting Heater Tube Nut
Courtesy of CHRYSLER LLC

Fig 10: Disconnecting/Connecting Tube
Courtesy of CHRYSLER LLC
Disconnect heater tube connection. There will be some coolant loss.

Fig 11: Removing/Installing Mount Heat Shield
Courtesy of CHRYSLER LLC
Support engine.
Remove heat shield from motor mount.

Fig 12: Removing/Installing Mount Lower Bolt
Courtesy of CHRYSLER LLC
Remove lower engine mount bolts.

Fig 13: Removing/Installing Upper Engine Mount Bolts
Courtesy of CHRYSLER LLC
Remove upper engine mount bolts.

Fig 14: Removing/Installing Engine Mount
Courtesy of CHRYSLER LLC
Raise engine and remove motor mount.

Fig 15: Disconnecting/Connecting Fuel Tube Bracket
Courtesy of CHRYSLER LLC
Disconnect fuel line bracket from engine mount bracket.

Fig 16: Removing/Installing Engine Mount Bracket
Courtesy of CHRYSLER LLC
Remove engine mount bracket from vehicle. Fuel line bracket mounting hole (1), engine mount holes (2), Bracket mounting holes (3).

Fig 17: Disconnecting/Connecting Electrical Connectors
Courtesy of CHRYSLER LLC
Lower engine.
Disconnect electrical connectors from generator.

Fig 18: Loosening/Tightening Upper Mounting Bolts
Courtesy of CHRYSLER LLC
Loosen upper mounting bolts.
Loosen lower mounting bolts.
Relocate heater tube.

Fig 19: Removing/Installing Generator
Courtesy of CHRYSLER LLC
Remove generator from vehicle.
