Home >> Chrysler >> 2007 >> 300 Base >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P1502 To P2097 >> P2066-Fuel Level Sensor 2 Performance >> Diagnostic Test

Diagnostic Test

  1. 1) DTC IS ACTIVE

    Turn the ignition on.

    With the scan tool, select View DTCs and review the DTC environmental information.

    Is the good trip counter greater than 0?

    Yes

    1. DTC is not active at this time. Refer to *CHECKING FOR AN INTERMITTENT DTC .

    No

    1. Go to step  2).
  2. 2) EXTERIOR FUEL TANK DAMAGE

    Inspect the exterior of the fuel tank for any damage that may restrict the movement of the fuel level sensor floats.

    Were any problems found?

    Yes

    1. Replace the fuel tank as necessary.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go to step  3).
  3. 3) FUEL PUMP MODULE WIRING AND CONNECTORS

    Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Fuel Pump Module harness connector and the Body Control Module (BCM).

    Look for any chafed, pierced, pinched, or partially broken wires.

    Look for broken, bent, pushed out or corroded terminals.

    Refer to any Technical Service Bulletins that may apply.

    Were any problems found?

    Yes

    1. Repair as necessary.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go to step  4).
  4. 4) (N5) FUEL LEVEL SIGNAL 2 CIRCUIT VOLTAGE

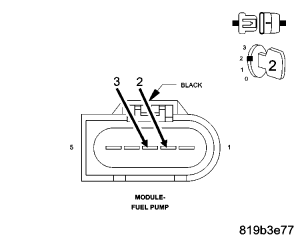

    Fig 1: Checking Fuel Level Signal Circuit
    GC0052714Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Fuel Pump Module harness connector.

    Turn the ignition on.

    With the scan tool, read the Fuel Level Sensor 2 circuit voltage.

    NOTE: The sensor voltage should be approximately 5.0 volts (plus or minus.1 volt) with connector disconnected.

    Turn the ignition off.

    Connect a jumper wire between ground and the (N5) Fuel Level Signal 2 circuit in the Fuel Pump Module harness connector.

    Turn the ignition on.

    With the scan tool, read the Fuel Level Sensor 2 circuit voltage.

    NOTE: The sensor voltage should be approximately 0.0 volts (plus or minus.1 volt) with the jumper wire in place.

    Does the scan tool display the voltage as described above?

    Yes

    1. Go to step  5).

    No

    1. Go to step  11).
  5. 5) (N4) FUEL LEVEL SIGNAL 1 CIRCUIT VOLTAGE

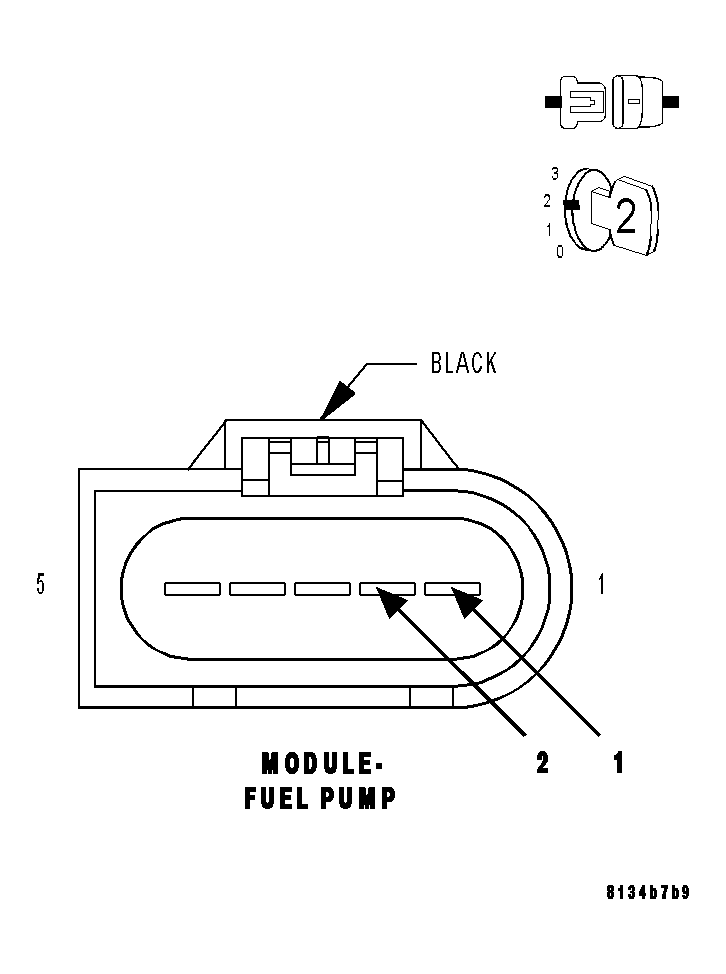

    Fig 2: Checking Fuel Level Sensor Signal Circuit & Ground Circuit
    GC0015001Courtesy of CHRYSLER LLC

    With the scan tool, read the Fuel Level Sensor 1 circuit voltage.

    NOTE: The sensor voltage should be approximately 5.0 volts (plus or minus.1 volt) with connector disconnected.

    Turn the ignition off.

    Connect a jumper wire between ground and the (N4) Fuel Level Signal 1 circuit in the Fuel Pump Module harness connector.

    Turn the ignition on.

    With the scan tool, read the Fuel Level Sensor 1 circuit voltage.

    NOTE: The sensor voltage should be approximately 0.0 volts (plus or minus.1 volt) with the jumper wire in place.

    Does the scan tool display the voltage as described above?

    Yes

    1. Go to step  6).

    No

    1. Go to step  14).
  6. 6) (Z210) GROUND CIRCUIT OPEN OR HIGH RESISTANCE

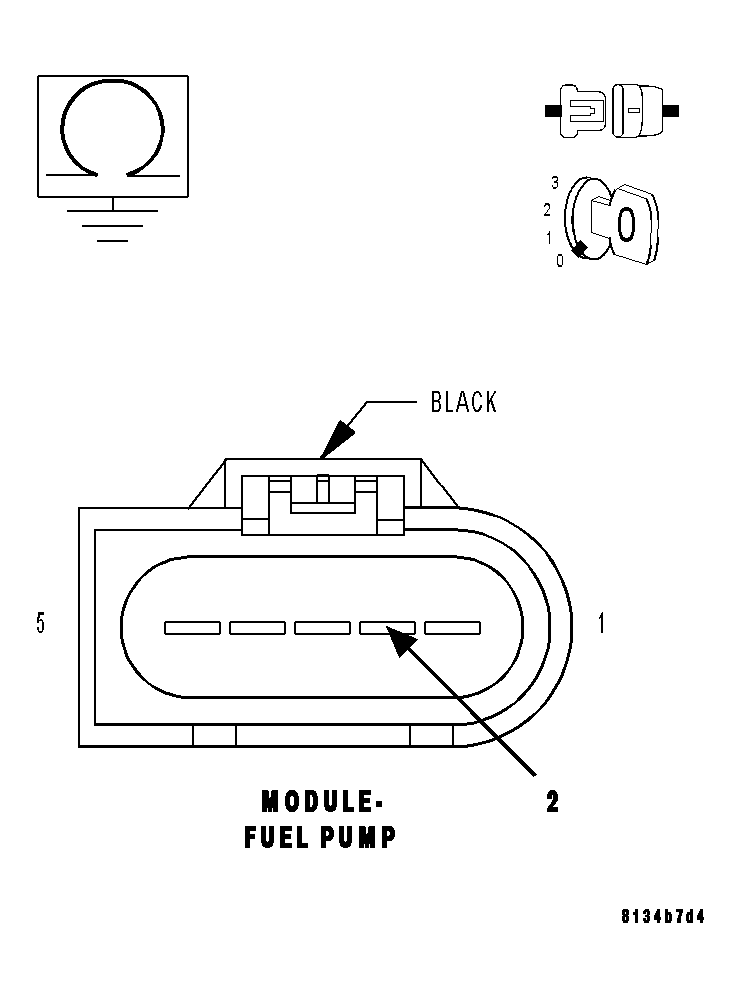

    Fig 3: Checking Fuel Level Sensor Ground Circuit
    GC0014999Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Using a 12 volt test light connected to 12 volts, check the (Z210) Ground circuit in the Fuel Pump Module harness connector.

    NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

    Is the test light illuminated and bright?

    Yes

    1. Go to step  7).

    No

    1. Repair the (Z210) Ground for an open circuit or high resistance.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  7. 7) FUEL TANK WIRING HARNESS INSPECTION
    WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or servicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow these instructions can result in personal injury or death.

    Remove the fuel tank in accordance with the Service Information.

    Inspect the wiring and connectors between the Fuel Pump Module harness connector and both Fuel Level Sensors.

    Look for any chafed, pierced, pinched, or partially broken wires.

    Look for broken, bent, pushed out or corroded terminals.

    Were any problems found?

    Yes

    1. Repair as necessary.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go to step  8).
  8. 8) FUEL LEVEL SENSOR 1 INSPECTION

    Remove the Fuel Level Sensor 1.

    Inspect the Fuel Level Sensor 1 and the inside of the fuel tank for any condition that would restrict the movement of the fuel level sensor float.

    Were any problems found?

    Yes

    1. Repair or replace the fuel tank components as necessary.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go to step  9).
  9. 9) FUEL LEVEL SENSOR 1 RESISTANCE

    Move the Fuel Level Sensor 1 float to its lowest point of travel.

    Measure the resistance between the terminals of Fuel Level Sensor 1.

    NOTE: The resistance should be approximately 220 ohms with the float at its lowest point of travel (empty).

    Move the Fuel Level Sensor 1 float to its highest point of travel.

    Measure the resistance between the terminals of Fuel Level Sensor 1.

    NOTE: The resistance should be approximately 20 ohms with the float at its highest point of travel (full).

    Is the resistance of the sensor within the values described above?

    Yes

    1. Go to step  10).

    No

    1. Replace the Fuel Level Sensor 2.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  10. 10) FUEL LEVEL SENSOR 2 INSPECTION

    Remove the Fuel Level Sensor 2 sensor.

    Inspect the Fuel Level Sensor 2 and the inside of the fuel tank for any condition that would restrict the movement of the fuel level sensor float.

    Were any problems found?

    Yes

    1. Repair or replace the fuel tank components as necessary.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Replace the Fuel Level Sensor 2.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  11. 11) (N5) FUEL LEVEL SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE

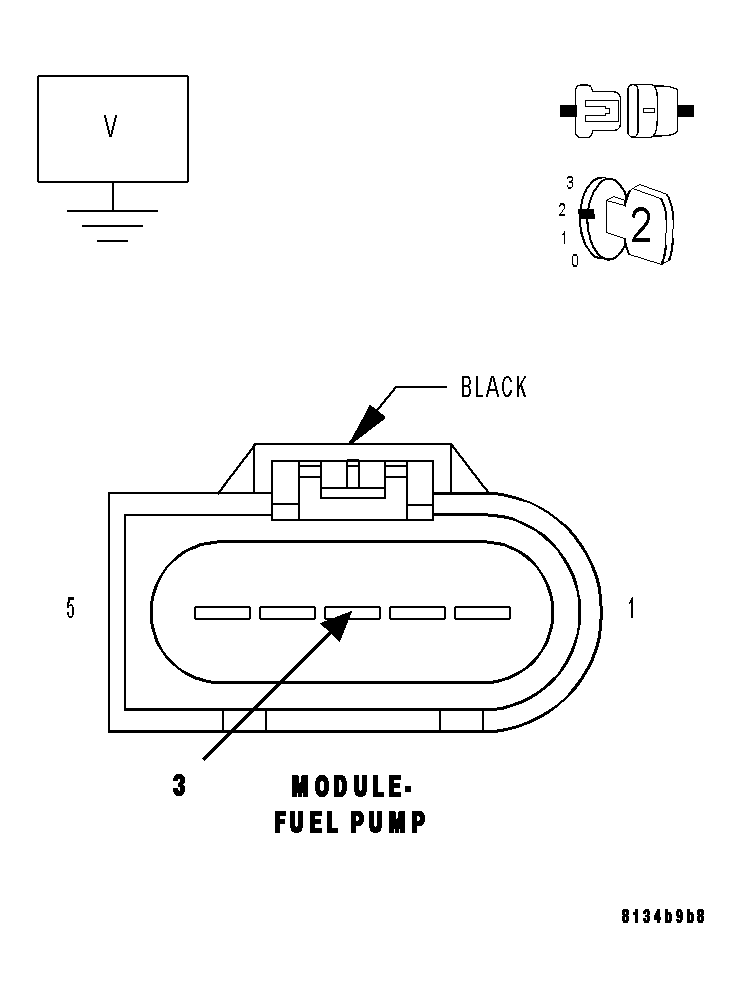

    Fig 4: Checking Fuel Level Sensor Signal Circuit
    GC0015125Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Body Control Module (BCM) connector.

    Turn the ignition on.

    Measure the voltage of the (N5) Fuel Level Signal 2 circuit in the Fuel Level Sensor 2 harness connector.

    Is there any voltage present?

    Yes

    1. Repair the (N5) Fuel Level Signal 2 circuit for a short to voltage.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go to step  12).
  12. 12) (N5) FUEL LEVEL SIGNAL 2 CIRCUIT SHORTED TO GROUND

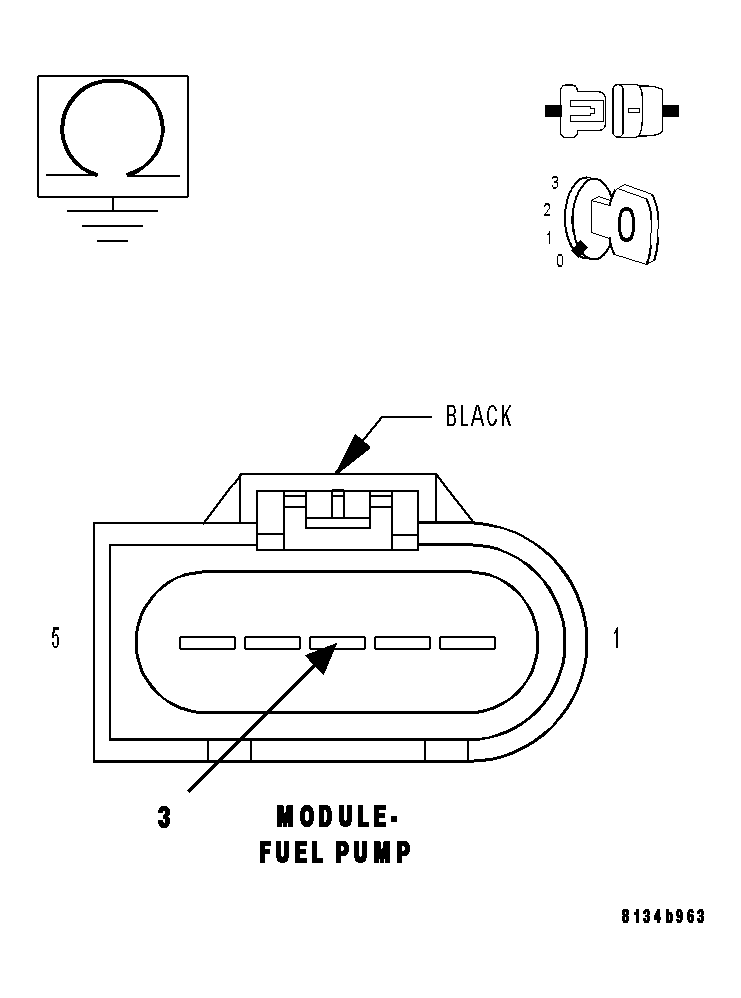

    Fig 5: Checking Fuel Level Sensor Signal Circuit
    GC0015122Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Measure the resistance between ground and the (N5) Fuel Level Signal 2 circuit in the Fuel Level Sensor 2 harness connector.

    Is the resistance above 100 ohms?

    Yes

    1. Go to step  13).

    No

    1. Repair the (N5) Fuel Level Signal 2 circuit for a short to ground.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  13. 13) (N5) FUEL LEVEL SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE

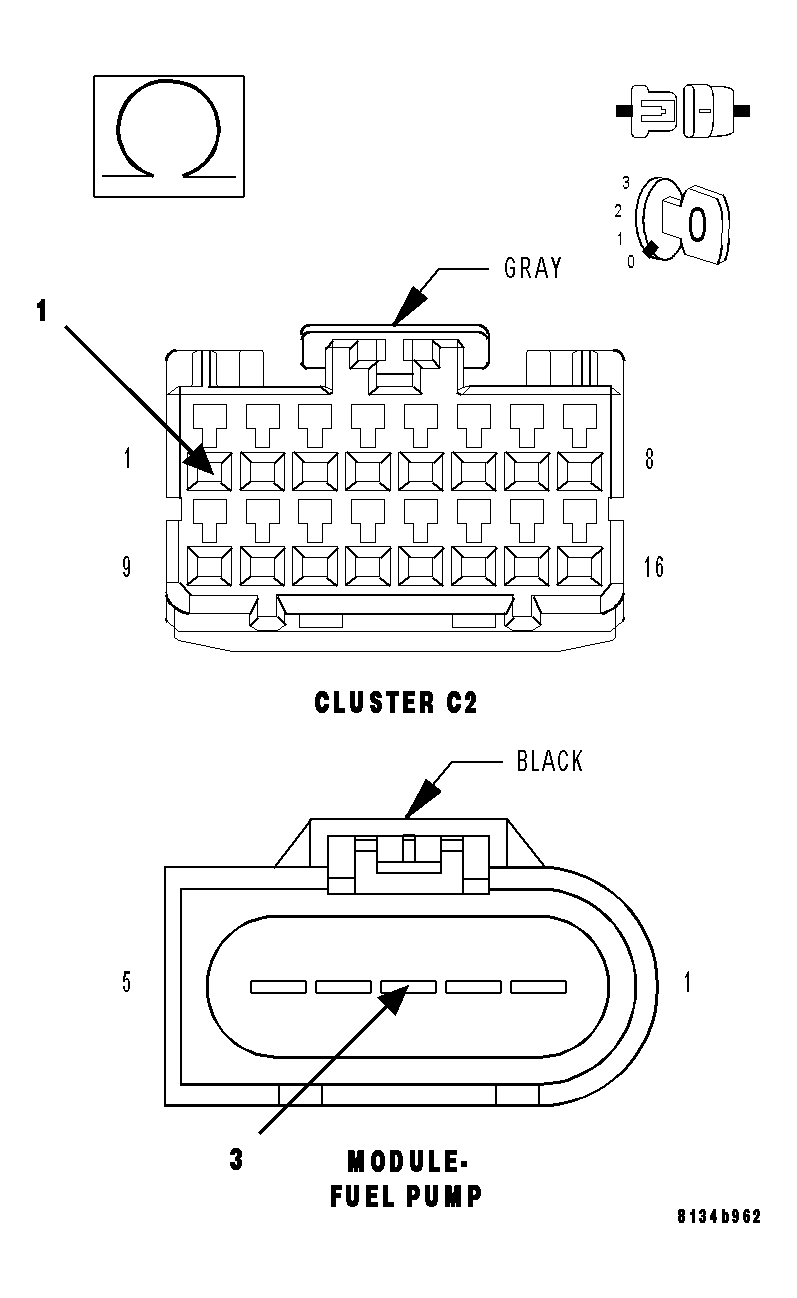

    Fig 6: Checking Fuel Level Sensor Signal Circuit
    GC0015121Courtesy of CHRYSLER LLC

    Measure the resistance of the (N5) Fuel Level Signal 2 circuit between the Fuel Level Sensor 2 harness connector and the Body Control Module (BCM) harness connector.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go to step  17).

    No

    1. Repair the (N5) Fuel Level Signal 2 circuit for an open circuit or high resistance.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  14. 14) (N4) FUEL LEVEL SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE

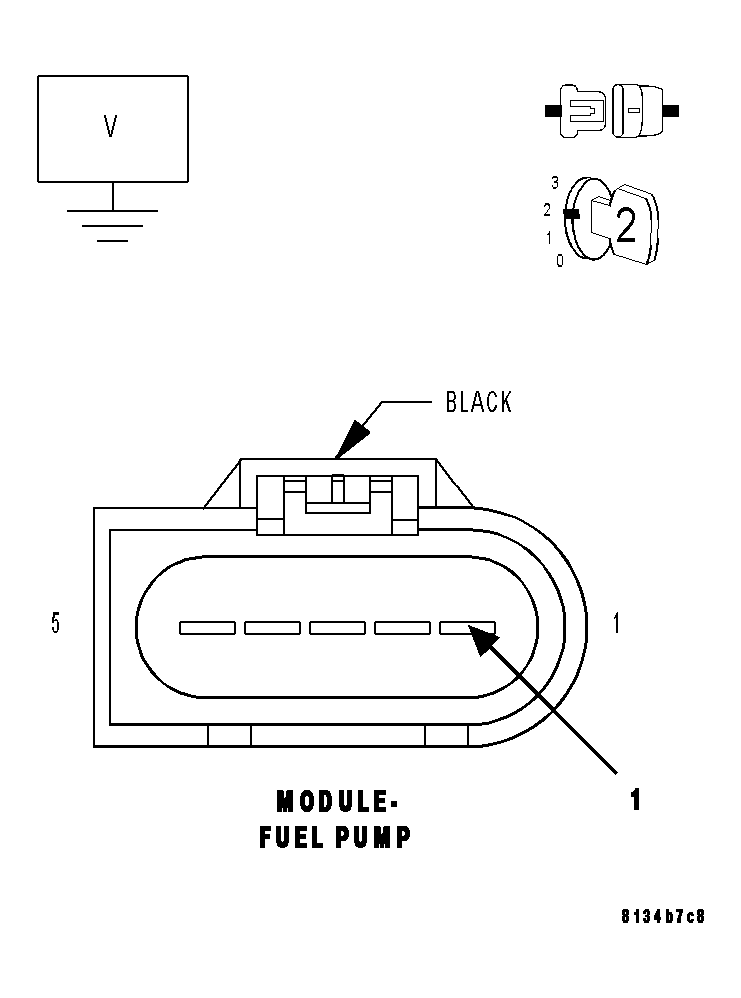

    Fig 7: Checking Fuel Level Sensor Signal Circuit
    GC0015002Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Body Control Module (BCM) connector.

    Turn the ignition on.

    Measure the voltage of the (N4) Fuel Level Signal 1 circuit in the Fuel Level Sensor 1 harness connector.

    Is there any voltage present?

    Yes

    1. Repair the (N4) Fuel Level Signal 1 circuit for a short to voltage.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go to step  15).
  15. 15) (N4) FUEL LEVEL SIGNAL 1 CIRCUIT SHORTED TO GROUND

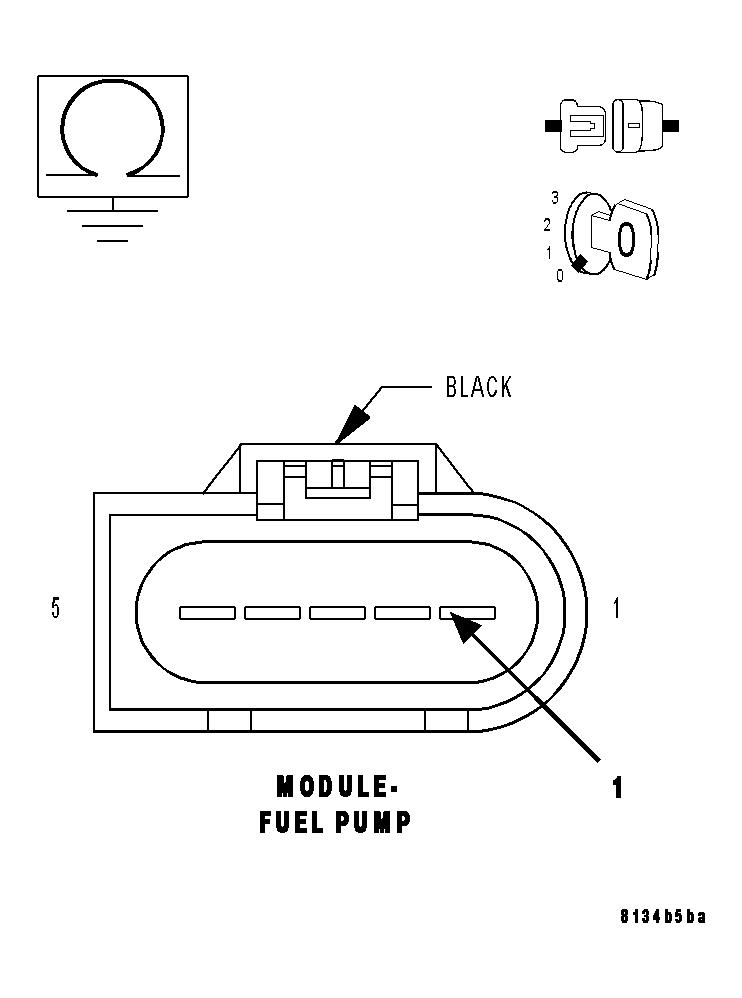

    Fig 8: Checking Fuel Level Sensor Signal Circuit
    GC0014998Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Measure the resistance between ground and the (N4) Fuel Level Signal 1 circuit in the Fuel Level Sensor 1 harness connector.

    Is the resistance above 100 ohms?

    Yes

    1. Go to step  16).

    No

    1. Repair the (N4) Fuel Level Signal 1 circuit for a short to ground.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  16. 16) (N4) FUEL LEVEL SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE

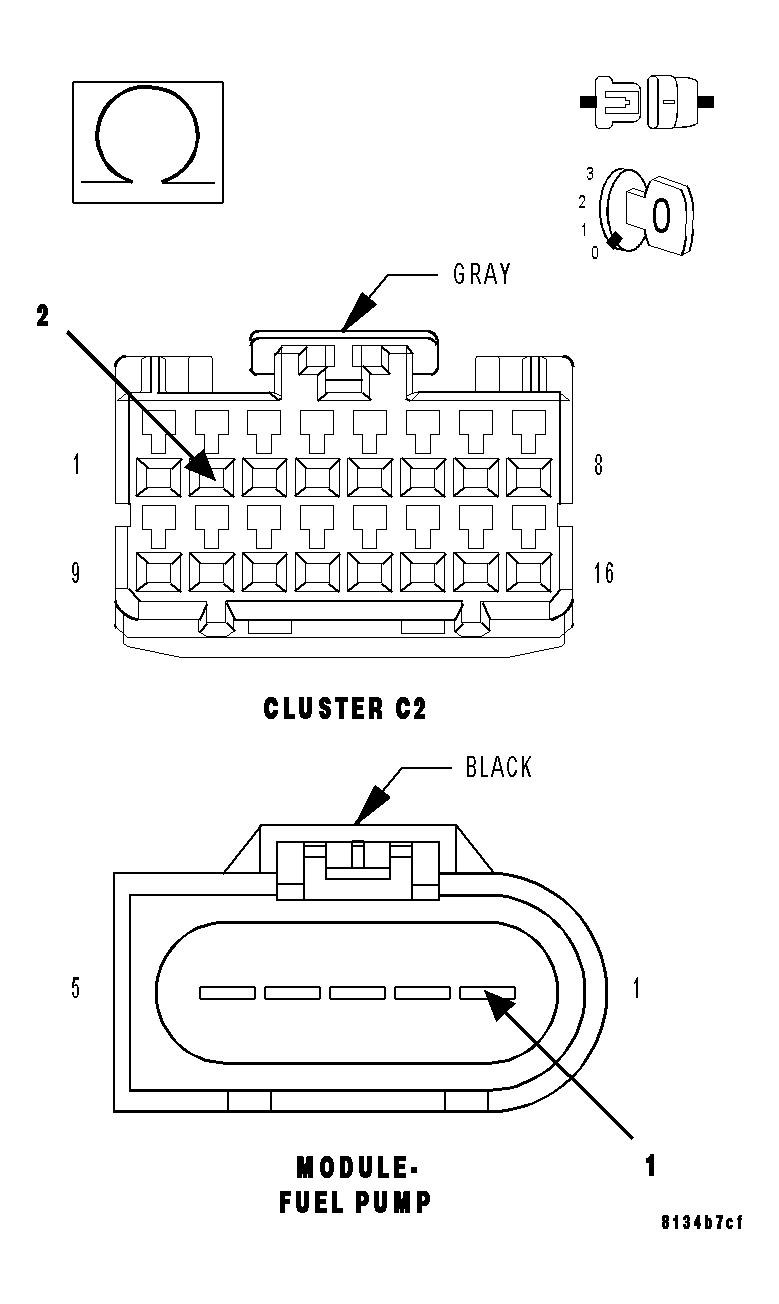

    Fig 9: Checking Fuel Level Sensor Signal Circuit
    GC0014997Courtesy of CHRYSLER LLC

    Measure the resistance of the (N4) Fuel Level Signal 1 circuit between the Fuel Level Sensor 1 harness connector and the Body Control Module (BCM) harness connector.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go to step  17).

    No

    1. Repair the (N4) Fuel Level Signal 1 circuit for an open circuit or high resistance.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  17. 17) BODY CONTROL MODULE (BCM)

    Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Fuel Pump Module and the Body Control Module (BCM).

    Look for any chafed, pierced, pinched, or partially broken wires.

    Look for broken, bent, pushed out or corroded terminals.

    Refer to any Technical Service Bulletins that may apply.

    Were any problems found?

    Yes

    1. Repair as necessary.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Replace the Body Control Module (BCM) in accordance with the Service Information.
    2. Perform BODY VERIFICATION TEST - VER 1 .
