Body Control Module Connector End View (C1)

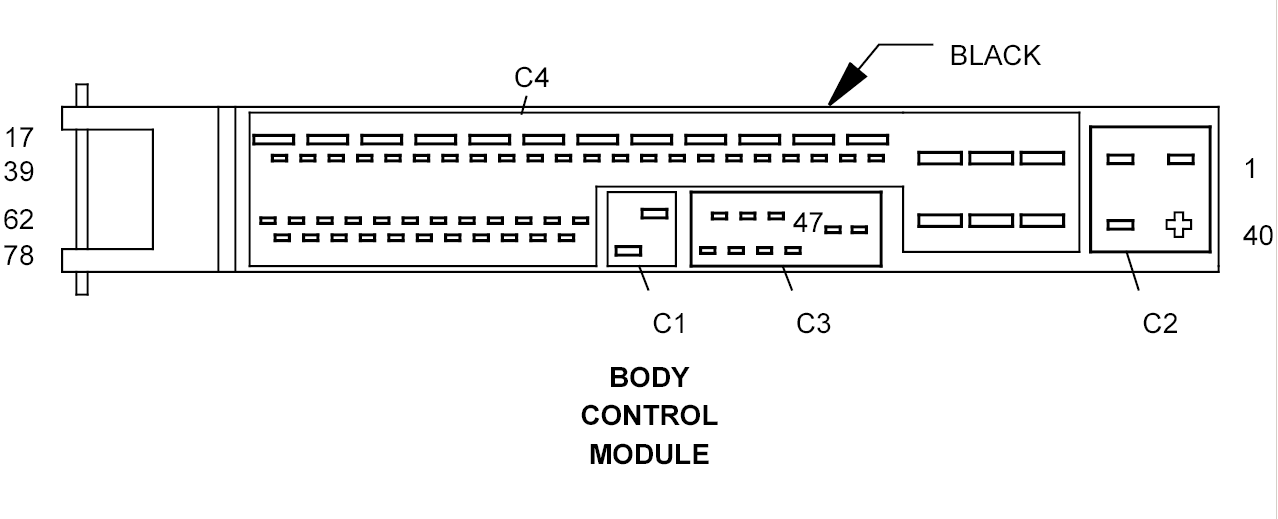

BODY CONTROL MODULE C1 - BLACK 2-WAY

GZH780020Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
50 20RD 12 VOLT SUPPLY
67 20BR CONTROL MODULE COOLING FAN CONTROL
