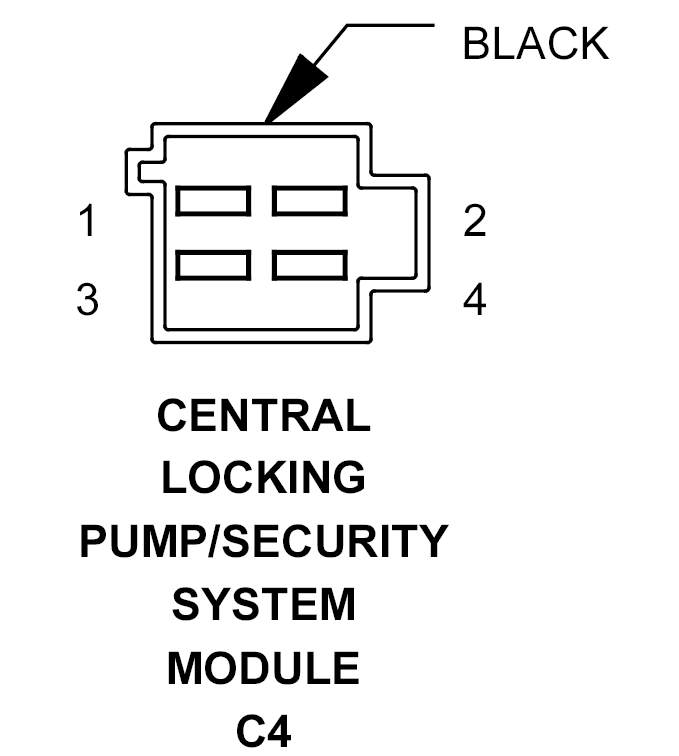

Central Locking Pump Module/Security System Module Connector End View (C4)
CENTRAL LOCKING PUMP/SECURITY SYSTEM MODULE C4 - BLACK 4-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | 14YL/BK | FOG LAMP SWITCH OUTPUT |
| 2 | 18GY/RD | RIGHT TAIL LAMP OUTPUT (EXCEPT EXPORT) |
| 2 | 18BK/DG | RIGHT TAIL LAMP OUTPUT (EXPORT) |
| 3 | - | - |
| 4 | 18GY/BK | LEFT TAIL LAMP OUTPUT (EXCEPT EXPORT) |
| 4 | 18BK/WT | LEFT TAIL LAMP OUTPUT (EXPORT) |
