Installation-Rear Heat Shield

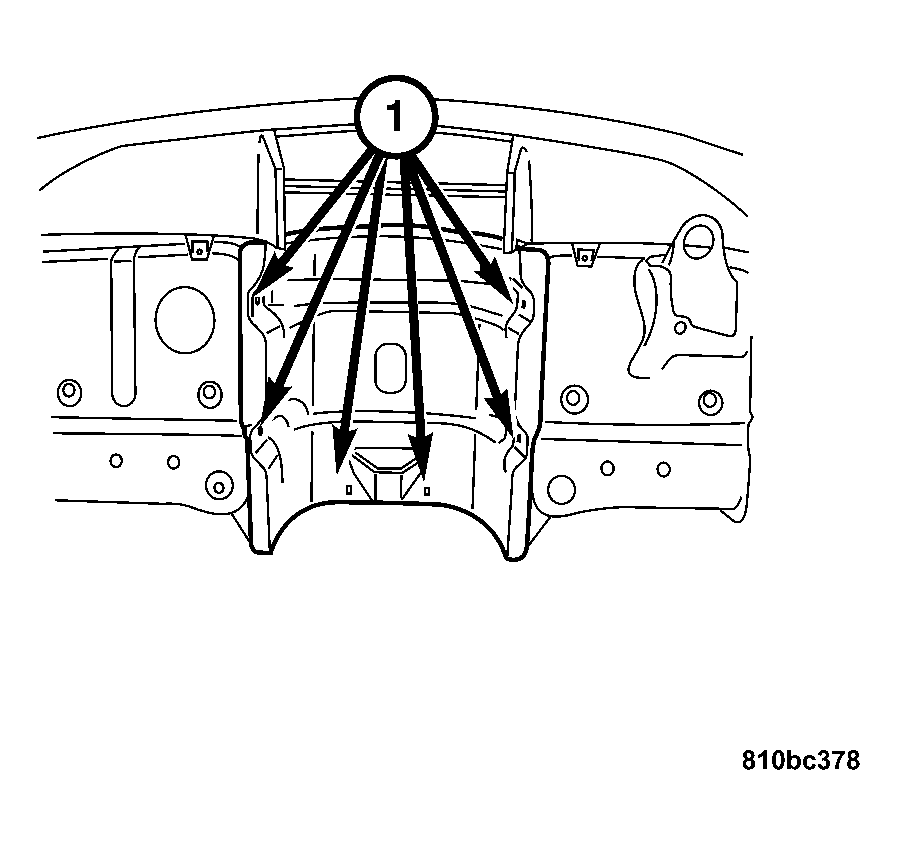

Fig 1: Removing/Installing Heat Shield Nuts & Heat Shield
GC0032293Courtesy of CHRYSLER LLC
  1. Install the heat shield and the nuts (1). Tighten the nuts to 10 N.m (89 in. lbs.).
  2. Install the muffler. See INSTALLATION .
