Downstream Oxygen Sensor

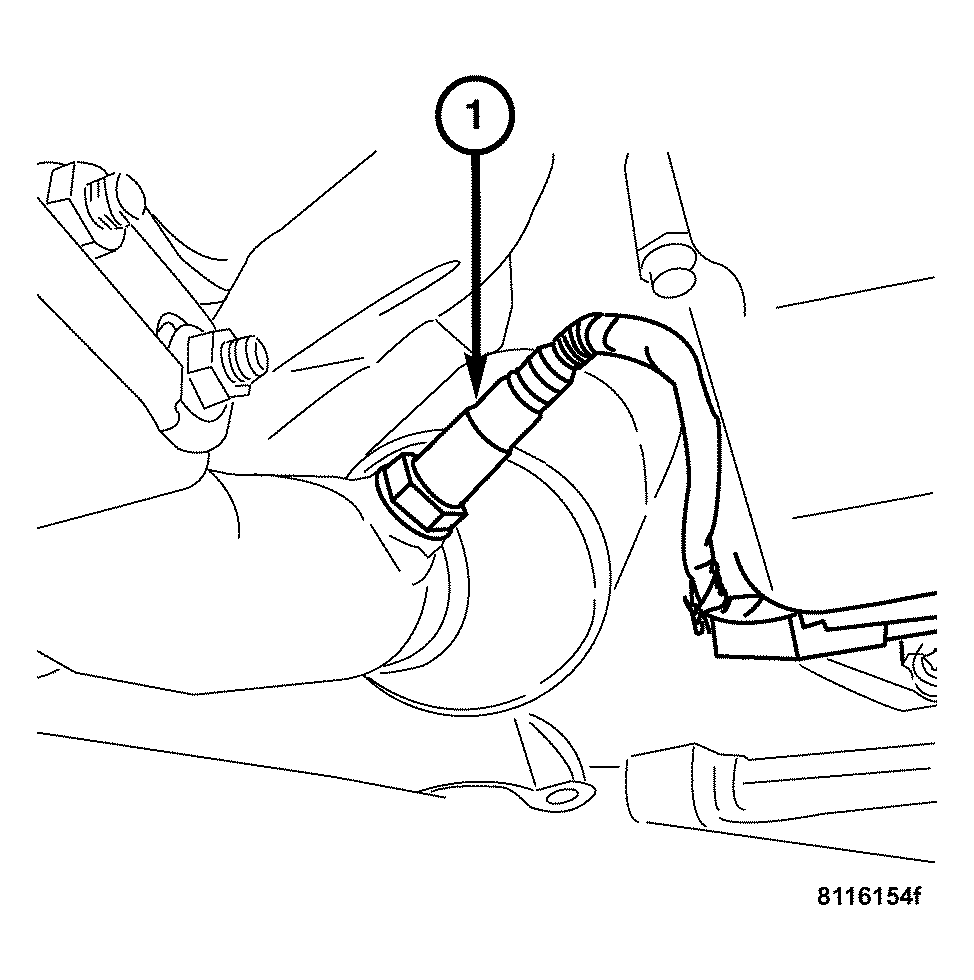

Fig 1: Removing/Installing Downstream O2 Sensor
GC0032361Courtesy of CHRYSLER LLC
  1. Disconnect the negative battery cable.
    NOTE: The left side O2 sensor is shown in the illustration. The right side is similar.
  2. Raise and support the vehicle.
  3. Disconnect the O2 sensor harness connector.
  4. Remove the O2 sensor (1).
