Coil Spring

Fig 1: Locating Cover Bolts

Courtesy of CHRYSLER LLC

Raise and support the vehicle.
Remove the wheel and tire assembly.
Remove the control arm cover by removing the bolts (1) from the cover.

Fig 2: Rear Shock Absorber Mounting
Courtesy of CHRYSLER LLC
Remove the lower shock bolts (2) from the lower control arm.

Fig 3: Locating Rear Spring
Courtesy of CHRYSLER LLC
Brace the rear suspension lower control arm with a suitable lifting device.
Raise the control arm until the halfshaft is horizontal.
Using Special Tool 9152 Compressor Plates and 9150 Spring Compressor (1) compress the rear spring.

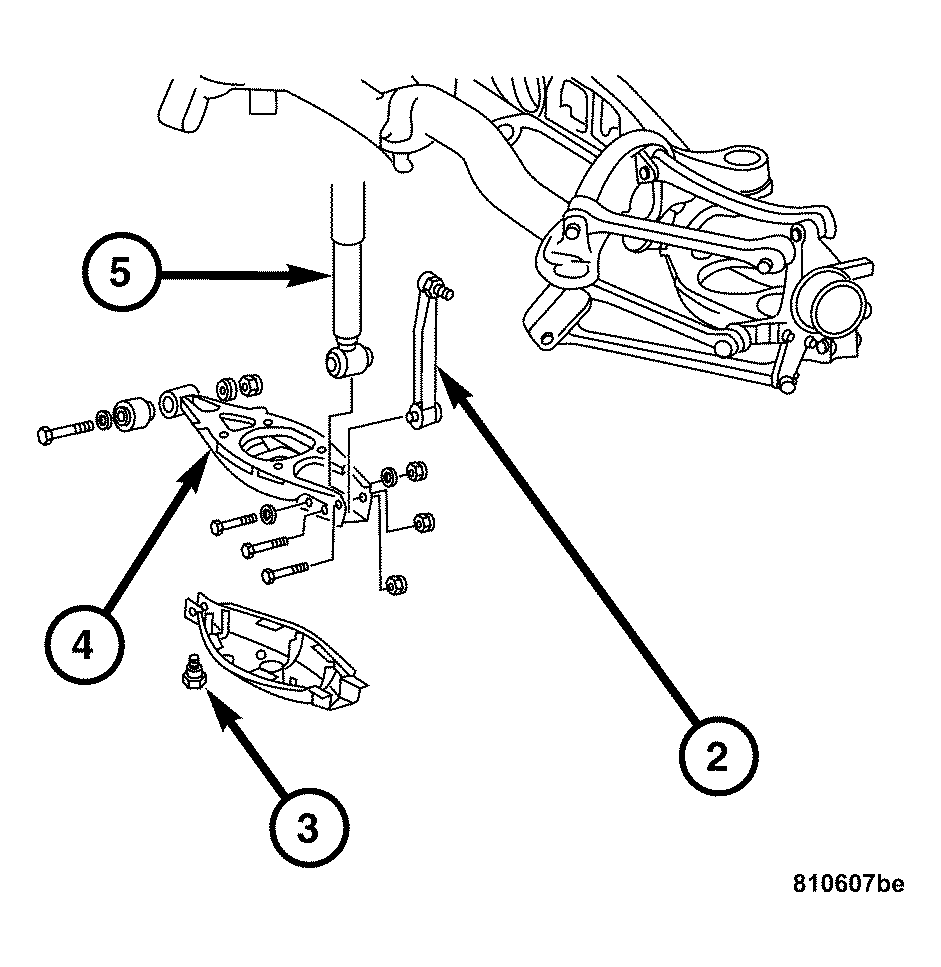

Fig 4: Locating Rear Lower Control Arm & Bolts
Courtesy of CHRYSLER LLC
Remove the rear bolts on the lower control arm (4) attaching the control arm to the frame.
Remove the lifting device.

Fig 5: Locating Mounting Flange/Frame
Courtesy of CHRYSLER LLC
Swing the lower control arm (2) down away from the mounting flange (1).
Carefully remove the spring from the vehicle.
