Generator-2.0/2.4 L

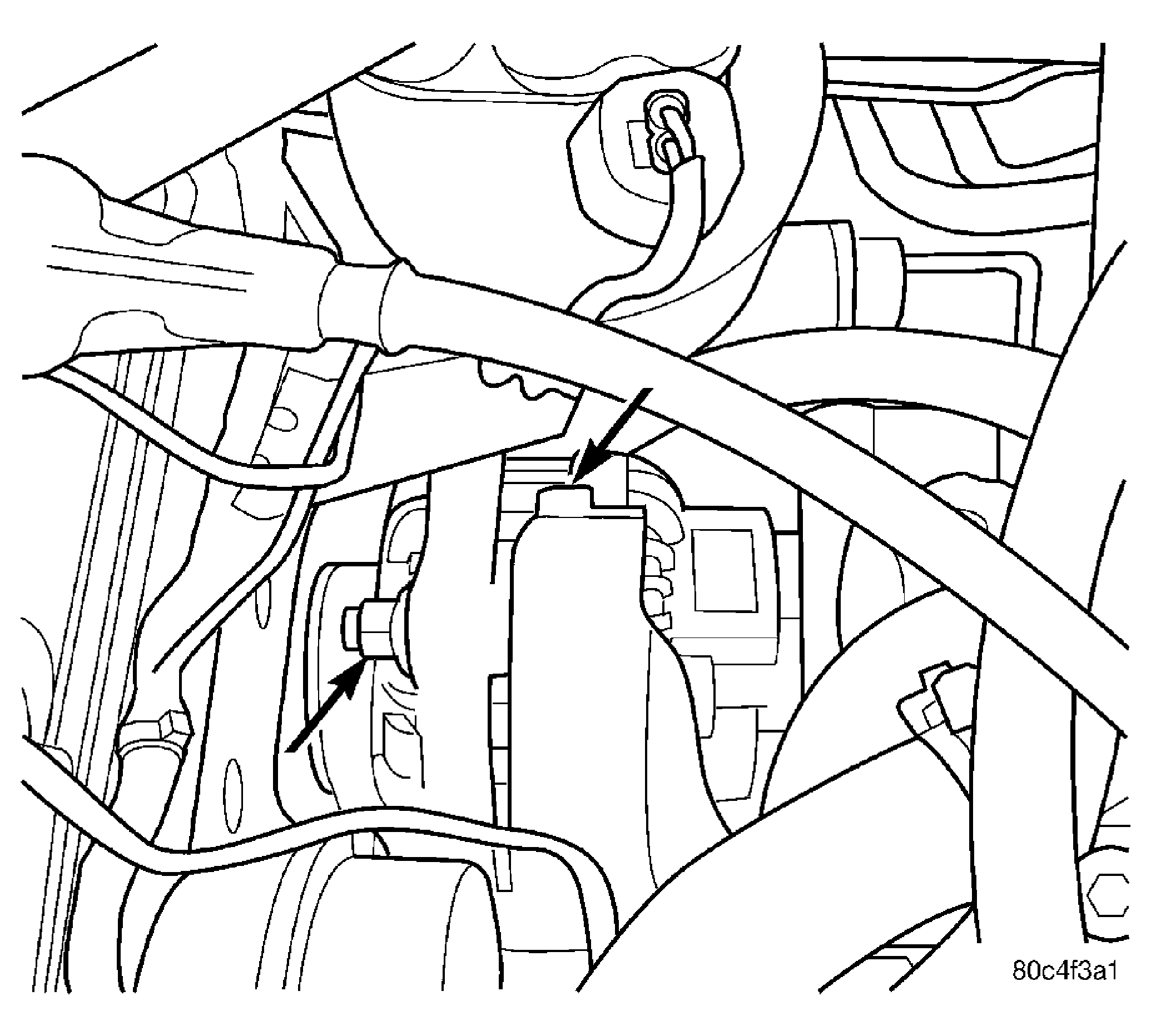

Fig 1: Generator T-Bolt Locknut & Adjustment Bolt

Courtesy of CHRYSLER LLC

Remove the air cleaner lid, disconnect the inlet air sensor and makeup air hose.
Disconnect the negative battery cable.
Loosen the upper generator T-bolt lock nut.

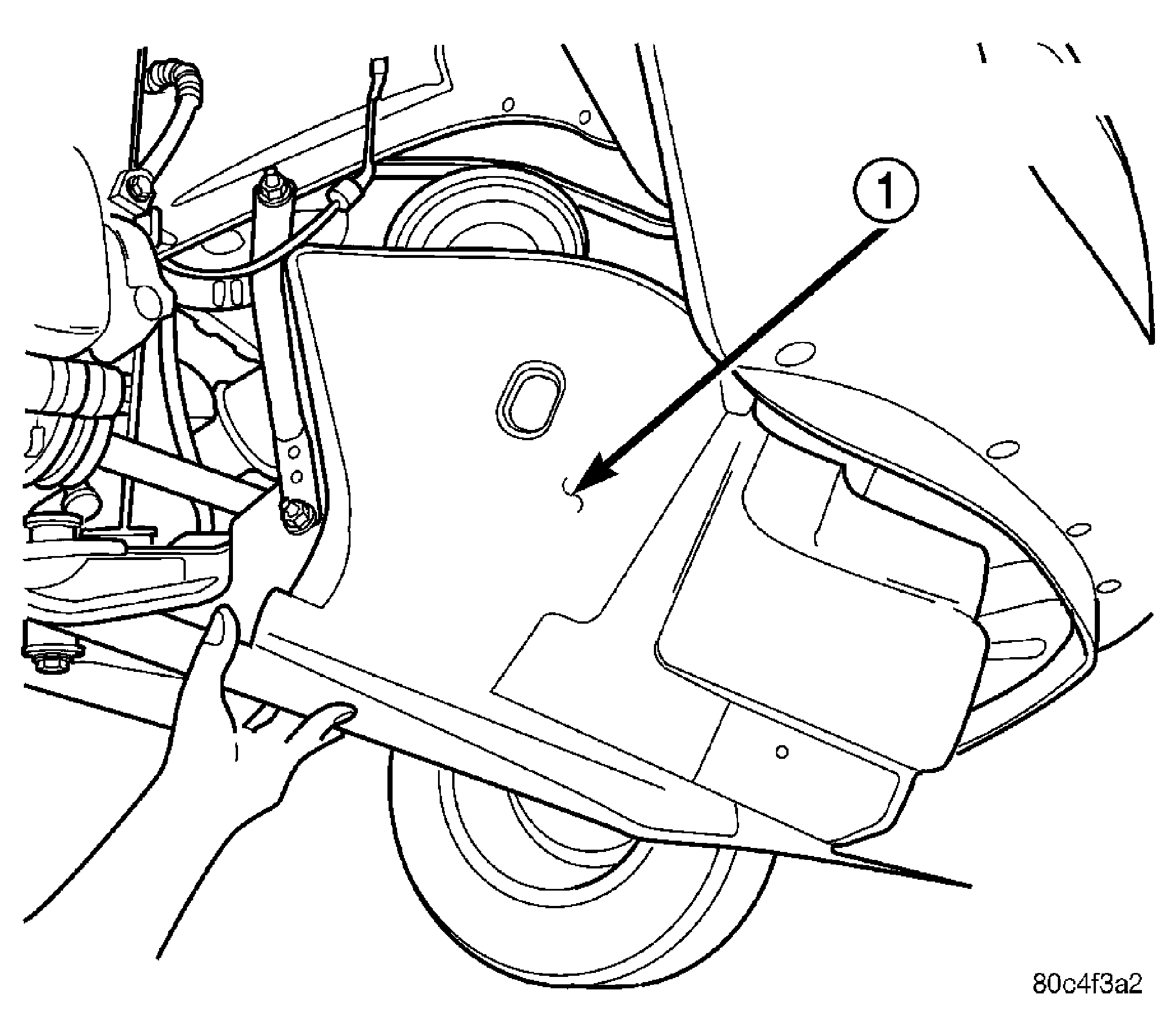

Fig 2: Accessory Drive Splash Shield
Courtesy of CHRYSLER LLC

1 - ACCESSORY DRIVE BELT SPLASH SHIELD
Raise vehicle on hoist.
Remove the right front wheel.
Remove the accessory drive splash shield.

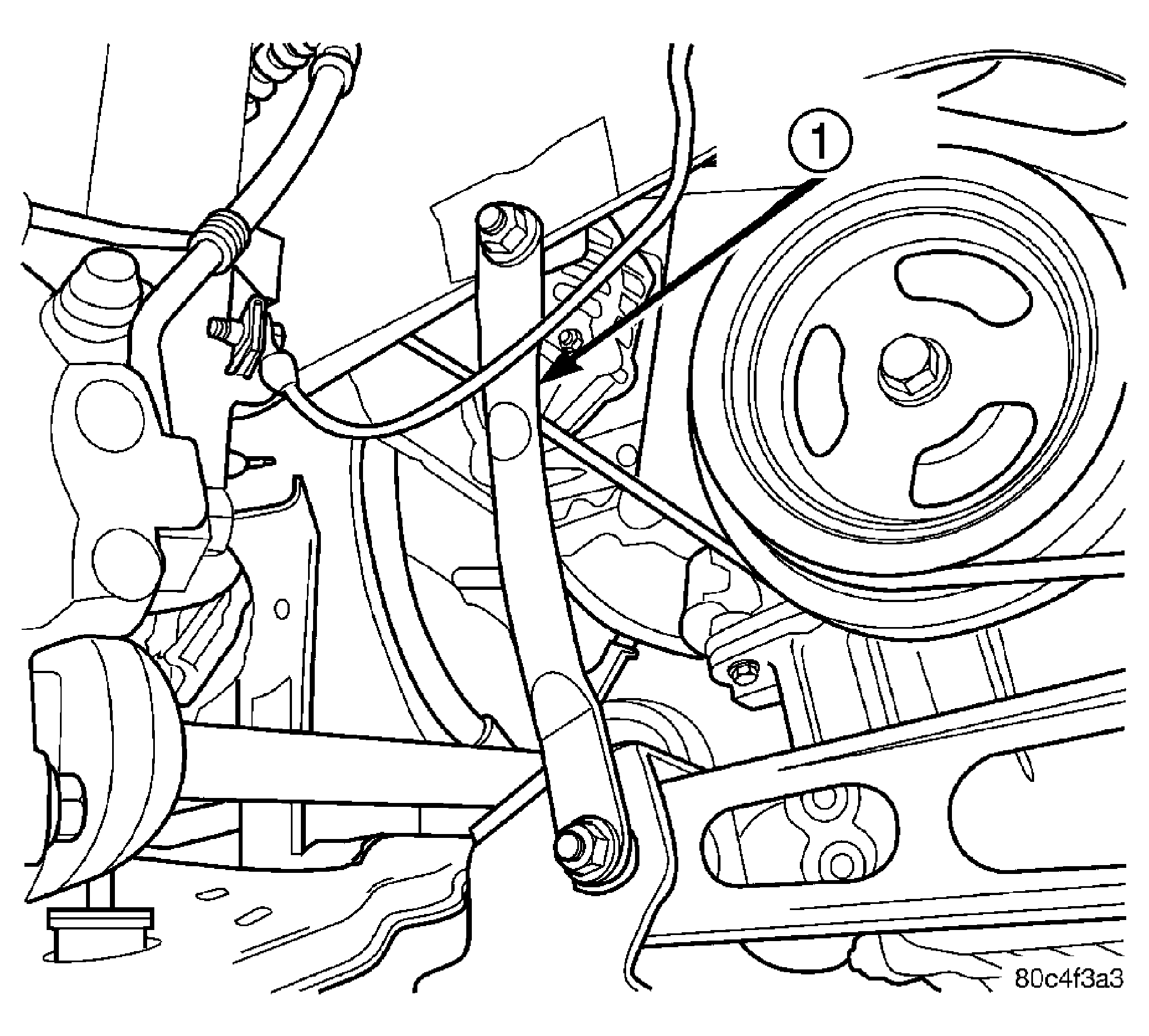

Fig 3: View Of Pencil Strut
Courtesy of CHRYSLER LLC

1 - PENCIL STRUT
Remove the pencil strut.

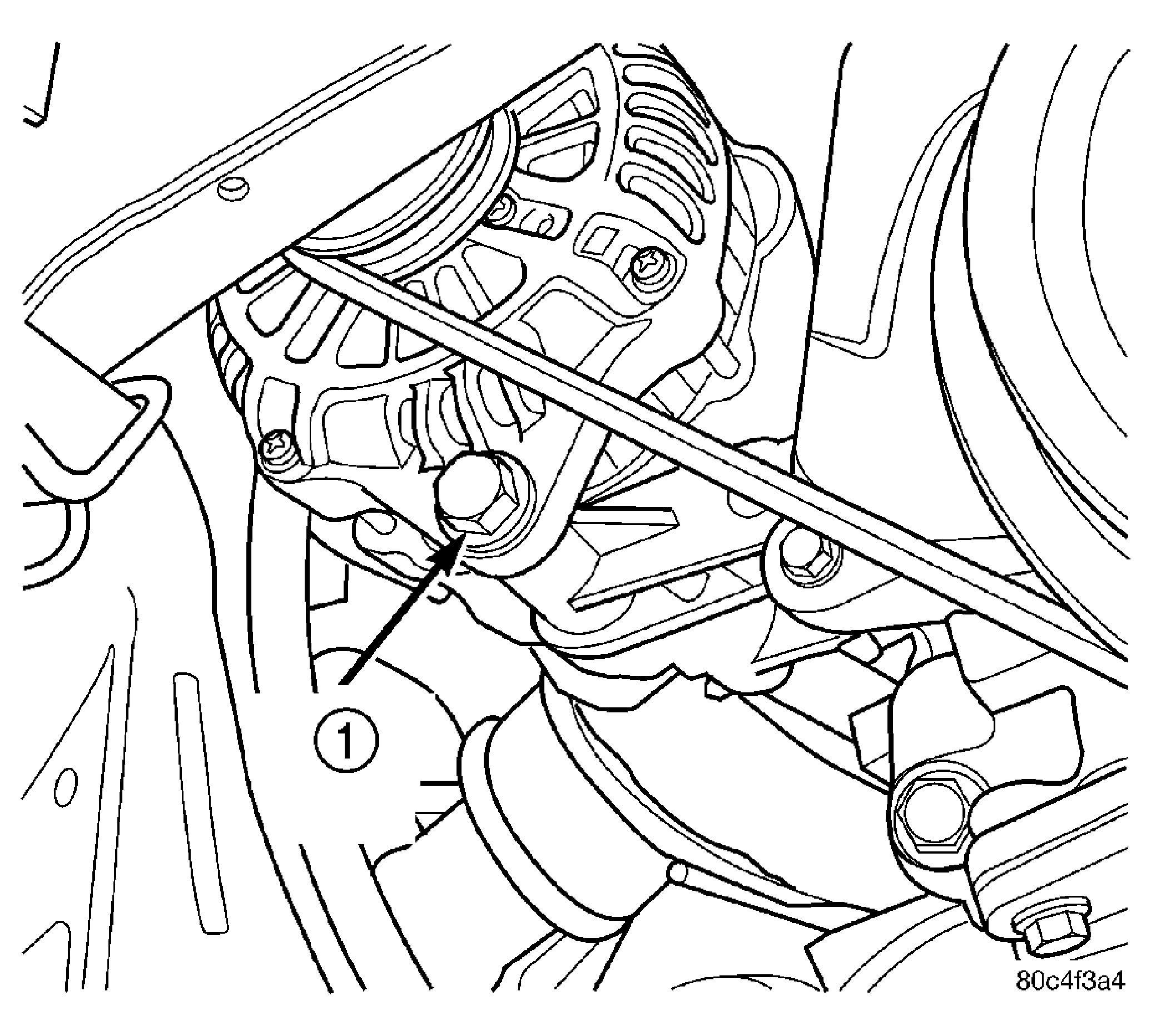

Fig 4: Generator Lower Pivot Bolt
Courtesy of CHRYSLER LLC

1 - LOWER PIVOT BOLT
Loosen the lower pivot bolt.

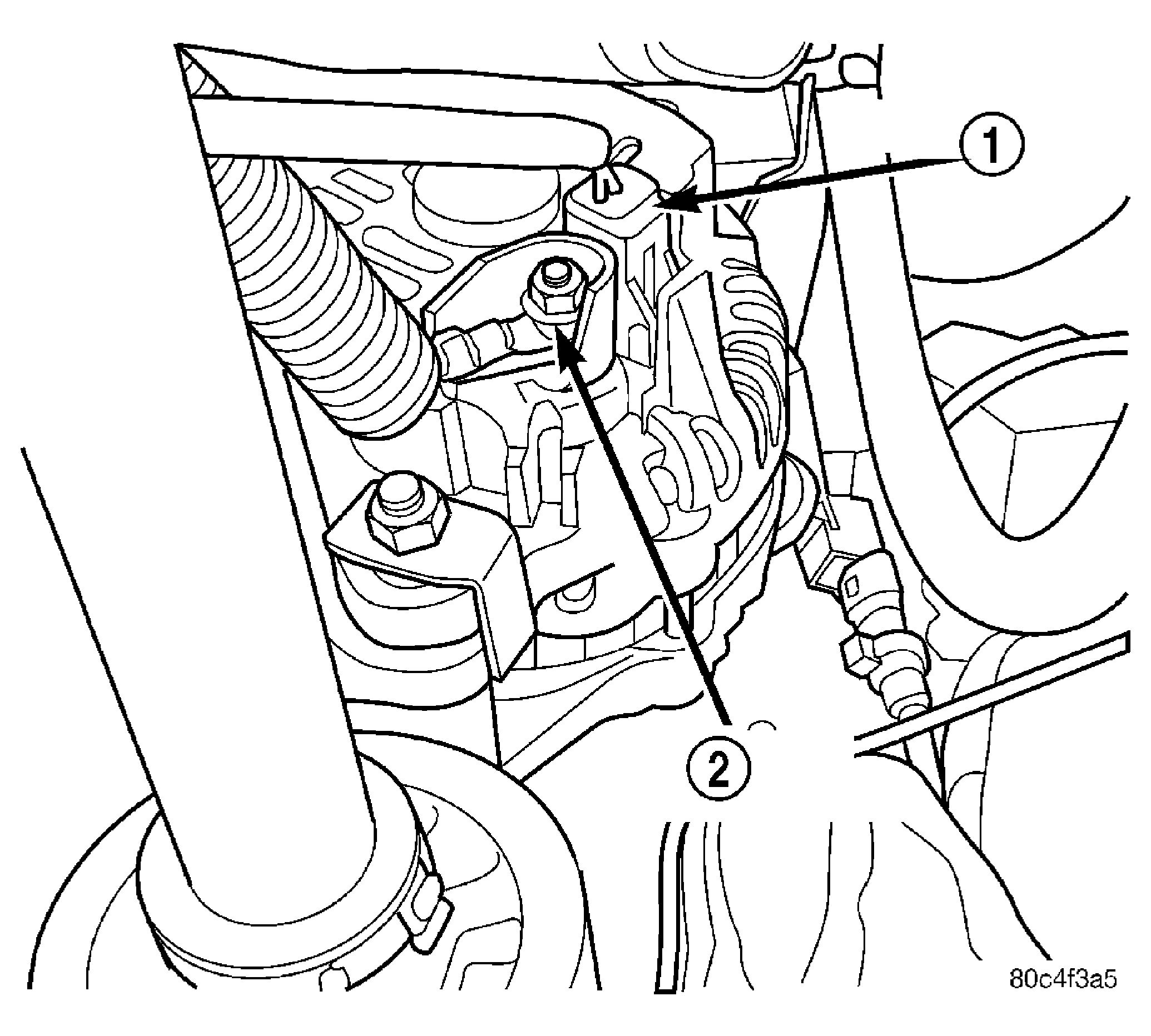

Fig 5: Identifying Battery (+) Connector and Field Connector
Courtesy of CHRYSLER LLC

1 - FIELD CONNECTOR

2 - BATTERY CONNECTION
Loosen the accessory drive belt T-bolt.
Unplug field circuit from generator.

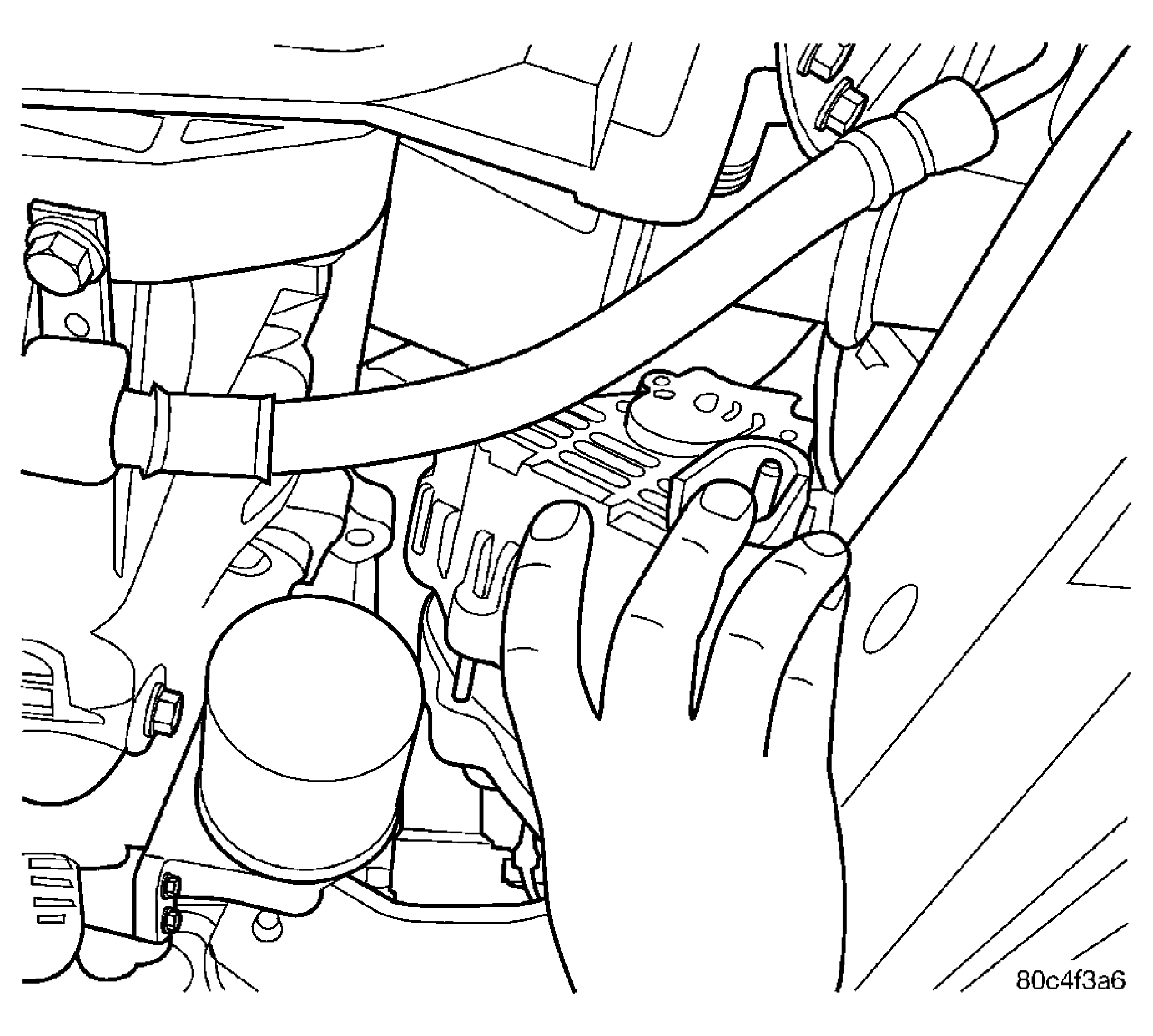

Fig 6: Removing/Installing Generator
Courtesy of CHRYSLER LLC
Remove the B+ terminal nut and wire.
Remove the generator belt. Refer to REMOVAL .
Remove the axle retaining nut.
Remove the lower control arm from steering knuckle.
Remove axle shaft. Put a container under the transmission to catch the transmission fluid from the transmission.
Remove the generator lower mounting bolt and nut from the upper T-bolt.
Remove generator out the bottom.
