Inlet Air Temperature Sensor

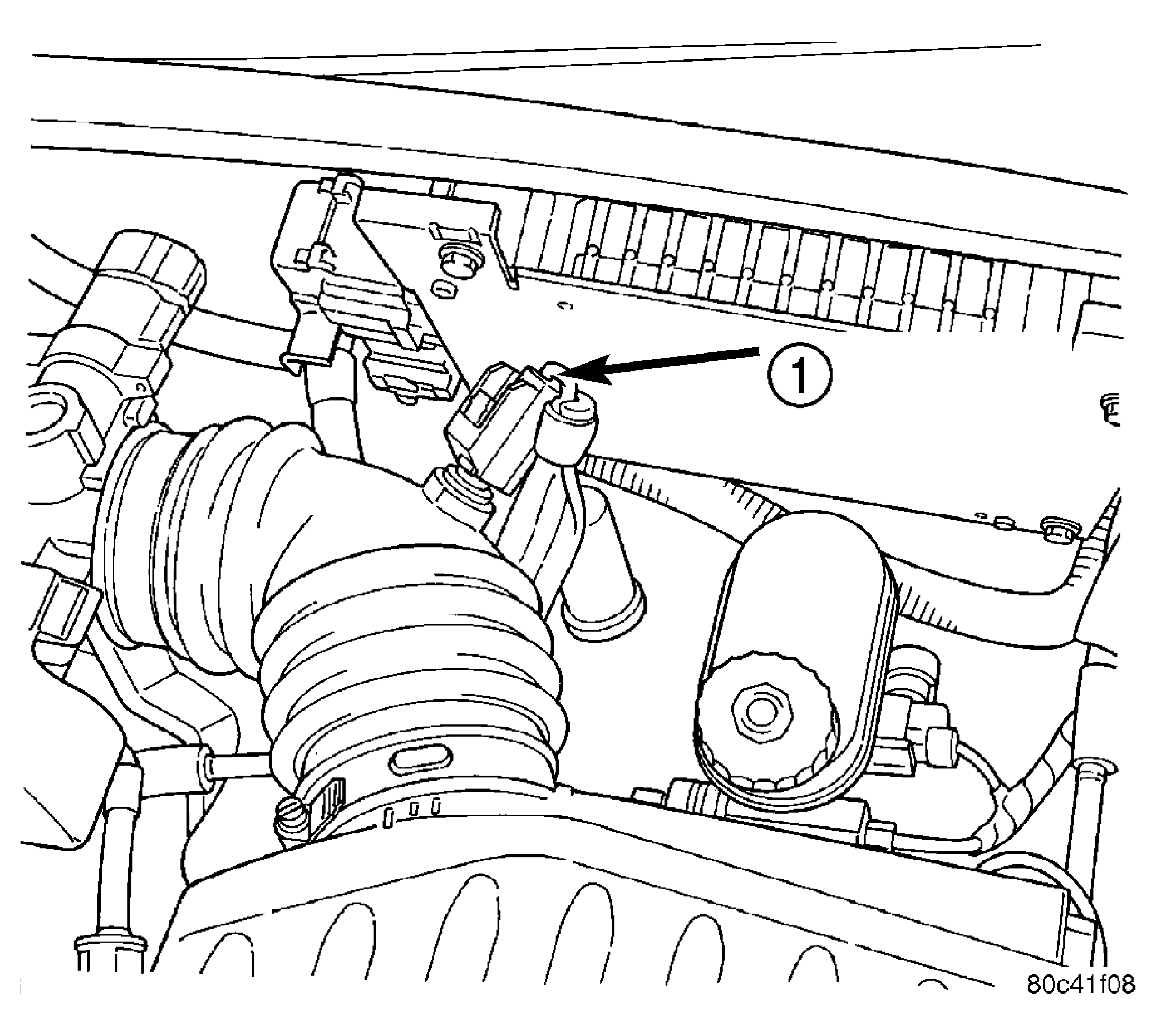

Fig 1: Inlet Air Temperature Sensor
GC0021655Courtesy of CHRYSLER LLC
1 - INLET AIR TEMPERATURE SENSOR

The sensors is in the air inlet tube (1).

  1. Install sensor.
  2. Attach electrical connector to sensor.
  3. Connect the negative battery cable.
  4. Install the air cleaner lid.
