Map Sensor - 1.6L

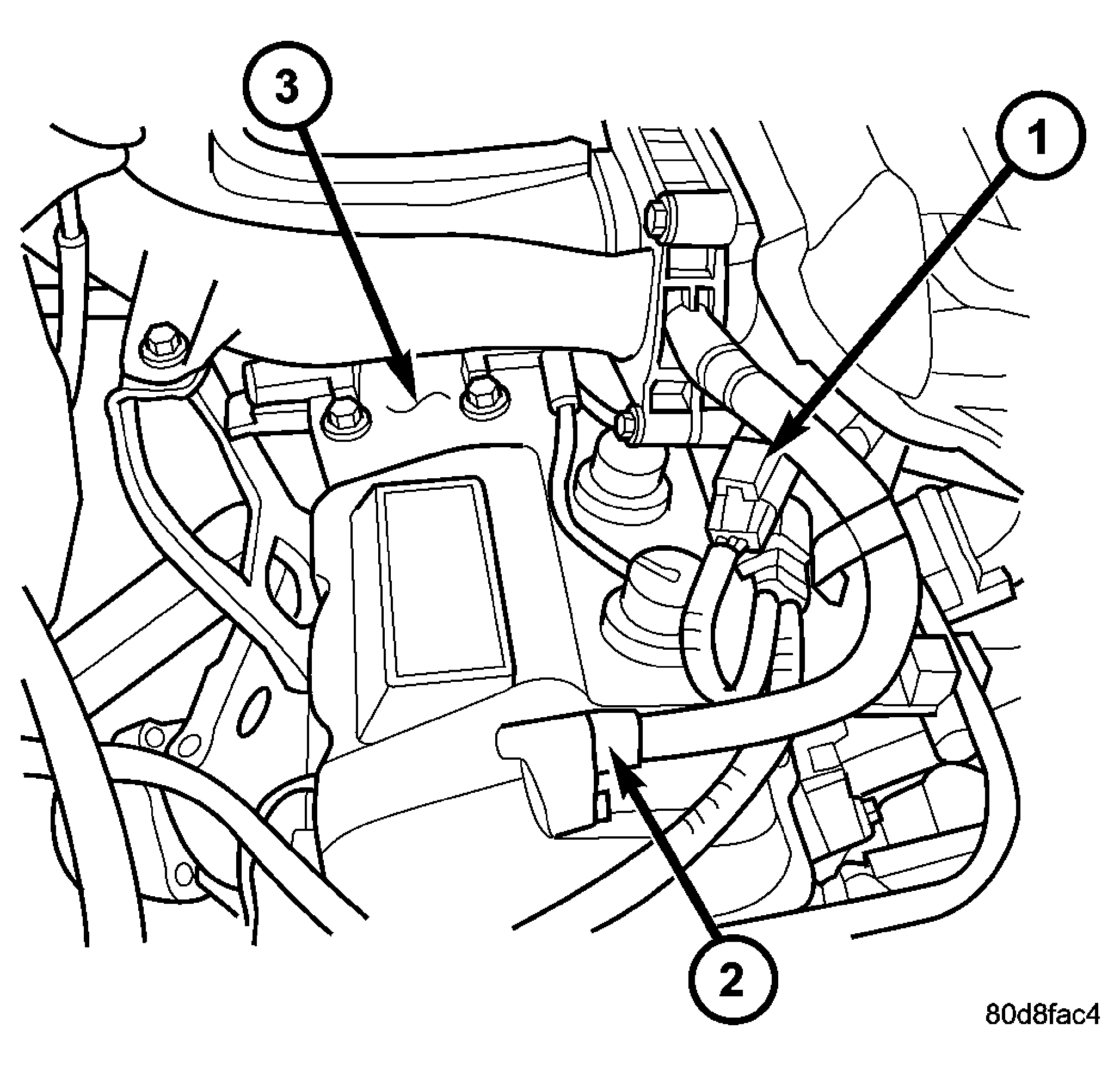

Fig 1: Ignition Coil, PCV, Manifold Absolute Pressure Sensor
GC0021656Courtesy of CHRYSLER LLC
1 - MAP Sensor
2 - PCV valve
3 - Ignition Coil
  1. Remove the air cleaner cover.
  2. Disconnect the negative battery cable.
  3. Disconnect the electrical connector from the MAP sensor.
  4. Remove the screws from the MAP sensor.
  5. Remove the MAP sensor.
