Home >> Chrysler >> 2007 >> Sebring Base, 2.4 K >> Repair and Diagnosis >> Electrical >> Component Locations >> Electrical Component Locator >> Circuit Protection Devices

Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

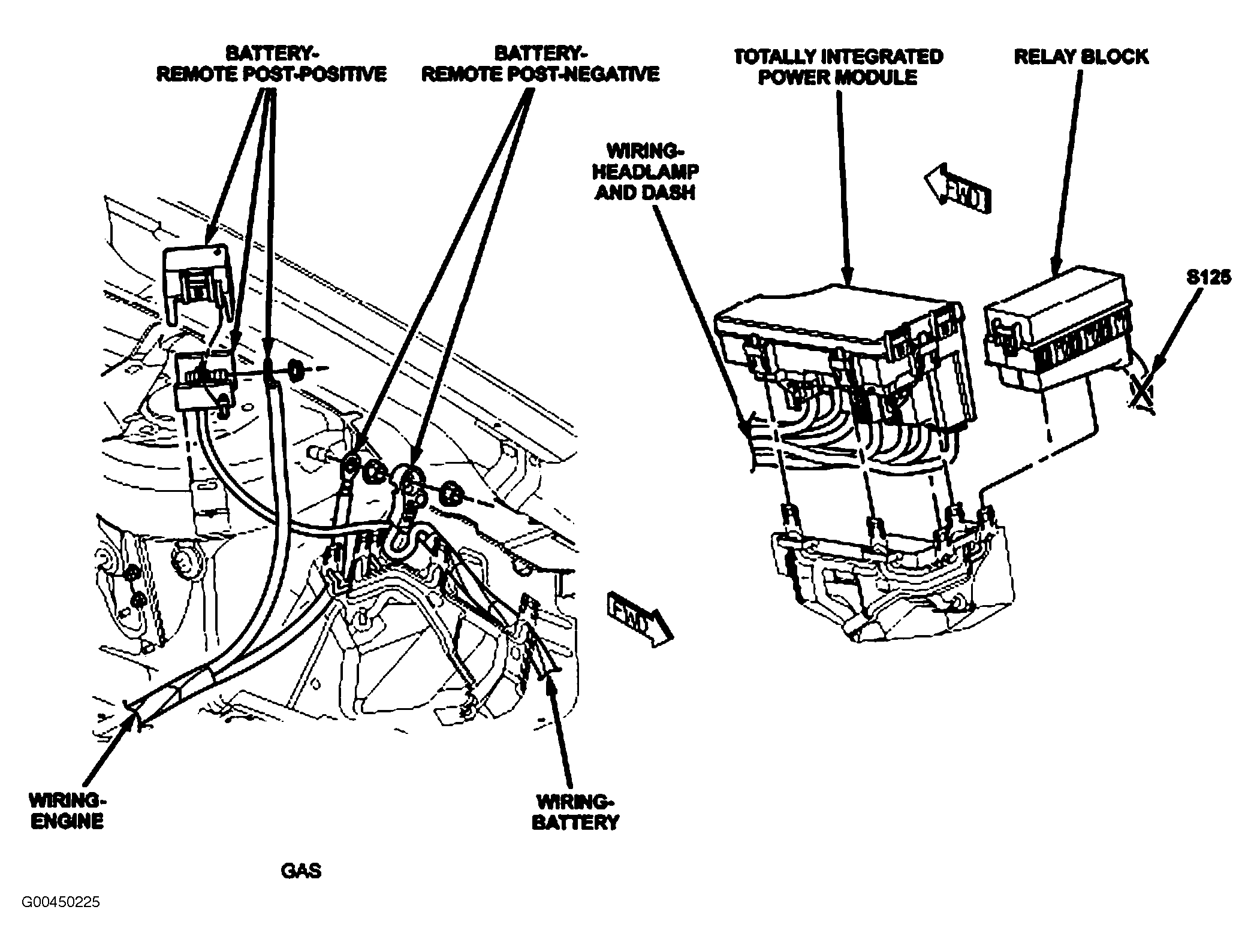

Relay Block Left side of engine compartment. See Figure.
Totally Integrated Power Module Left side of engine compartment. See Figure.
