Sensor-Map 3.5L

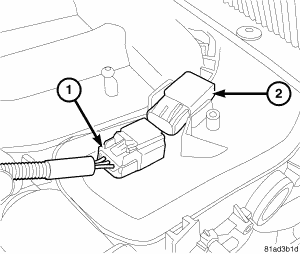

Fig 1: Identifying MAP Sensor
GC0060571Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Disconnect the electrical connector from the MAP sensor.

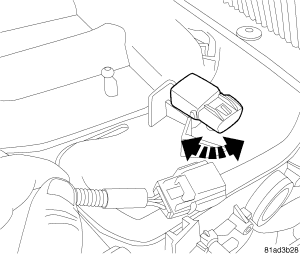

    Fig 2: Rotating MAP Sensor
    GC0060572Courtesy of CHRYSLER LLC
  3. Rotate sensor.

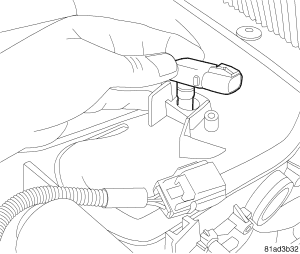

    Fig 3: Removing/Installing MAP Sensor
    GC0060573Courtesy of CHRYSLER LLC
  4. Lift to remove.
