Charging System: Charging: Generator: Removal: Generator-3.5L

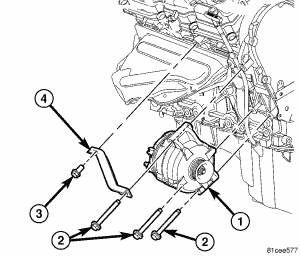

Fig 1: GENERATOR 3.5L

Courtesy of CHRYSLER LLC

WARNING: DISCONNECT NEGATIVE CABLE FROM BATTERY BEFORE REMOVING BATTERY OUTPUT WIRE (B+ WIRE) FROM GENERATOR. FAILURE TO DO SO CAN RESULT IN INJURY OR DAMAGE TO ELECTRICAL SYSTEM.

1. Disconnect and isolate negative battery cable at battery.
2. Remove generator drive belt, refer to REMOVAL .
3. Remove upper most mounting bolt (2) from generator (1).
4. Remove generator bracket bolt (3) and remove bracket (4).

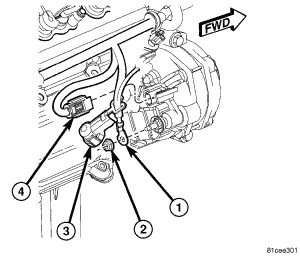

   Fig 2: ALTERNATOR ELECTRICAL CONNECTION

   Courtesy of CHRYSLER LLC
5. Unsnap plastic protective cover (3) from B+ mounting stud.
6. Remove B+ terminal mounting nut (2) and B+ terminal (1) at rear of generator.
7. Disconnect field wire electrical connector (4) by pushing on connector tab.

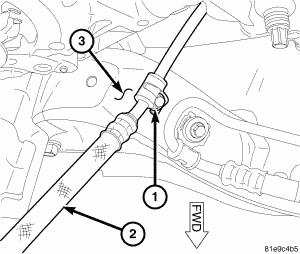

   Fig 3: TRANS COOLER LINE CLAMP

   Courtesy of CHRYSLER LLC
8. Raise and support vehicle.
9. Remove middle splash shield.
10. Remove bolt (1) from transmission cooler line clamp at right crossmember (3) and reposition transmission cooler line (2).
    Fig 4: GENERATOR 3.5L

    Courtesy of CHRYSLER LLC
11. Remove lower mounting bolts (2) from generator (1).
12. Remove generator from engine compartment.
