Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Integrated Power Module

G00358893

Courtesy of CHRYSLER LLC

Fig 2: Right Front Of Engine Compartment

G00364052

Courtesy of CHRYSLER LLC

Fig 3: Front Of Engine Compartment

G00364053

Courtesy of CHRYSLER LLC

Fig 4: Right Side Of Engine Compartment

G00450315

Courtesy of CHRYSLER LLC

Fig 5: Right Inner Fender Shield

G00450324

Courtesy of CHRYSLER LLC

Fig 6: Right Rear Of Engine (2.7L)

G00450311

Courtesy of CHRYSLER LLC

Fig 7: Left Rear Of Engine (2.7L)

G00358902

Courtesy of CHRYSLER LLC

Fig 8: Front Of Engine (3.5L)

G00358903

Courtesy of CHRYSLER LLC

Fig 9: Right Rear Of Engine (3.5L)

G00450310

Courtesy of CHRYSLER LLC

Fig 10: Left Rear Of Engine (3.5L)

G00450312

Courtesy of CHRYSLER LLC

Fig 11: Left Side Of Engine (3.5L)

G00358906

Courtesy of CHRYSLER LLC

Fig 12: Right Front Of Engine (5.7L)

G00358907

Courtesy of CHRYSLER LLC

Fig 13: Right Rear Of Engine (5.7L)

G00450316

Courtesy of CHRYSLER LLC

Fig 14: Left Rear Of Engine (5.7L)

G00450317

Courtesy of CHRYSLER LLC

Fig 15: HVAC Unit

G00358911

Courtesy of CHRYSLER LLC

Fig 16: Instrument Panel

G00358912

Courtesy of CHRYSLER LLC

Fig 17: Left Side Of Dash

G00358913

Courtesy of CHRYSLER LLC

Fig 18: Steering Column

G00358914

Courtesy of CHRYSLER LLC

Fig 19: Left Side Of Dash

G00358915

Courtesy of CHRYSLER LLC

Fig 20: Center/Left Side Of Dash

G00450327

Courtesy of CHRYSLER LLC

Fig 21: Center Of Dash

G00450328

Courtesy of CHRYSLER LLC

Fig 22: Right Side Of Dash

G00450313

Courtesy of CHRYSLER LLC

Fig 23: Left "A" Pillar

G00358920

Courtesy of CHRYSLER LLC

Fig 24: Right Front Of Passenger Compartment

G00450320

Courtesy of CHRYSLER LLC

Fig 25: Driver Seat

G00358923

Courtesy of CHRYSLER LLC

Fig 26: Left Side Of Passenger Compartment

G00358925

Courtesy of CHRYSLER LLC

Fig 27: Driver Door (Right Front Door Similar)

G00358928

Courtesy of CHRYSLER LLC

Fig 28: Left/Right Rear Door

G00358929

Courtesy of CHRYSLER LLC

Fig 29: Left Rear Quarterpanel (Except Magnum)

G00358930

Courtesy of CHRYSLER LLC

Fig 30: Right Rear Quarterpanel (Magnum)

G00450322

Courtesy of CHRYSLER LLC

Fig 31: Headliner

G00358934

Courtesy of CHRYSLER LLC

Fig 32: Headliner

G00358935

Courtesy of CHRYSLER LLC

Fig 33: Left Rear Of Trunk (Except Magnum)

G00358936

Courtesy of CHRYSLER LLC

Fig 34: Left Rear Of Cargo Area (Magnum)

G00358937

Courtesy of CHRYSLER LLC

Fig 35: Trunk (Except Magnum)

G00364063

Courtesy of CHRYSLER LLC

Fig 36: Trunk Battery

G00358942

Courtesy of CHRYSLER LLC

Fig 37: Rear Of Vehicle

G00358943

Courtesy of CHRYSLER LLC

Fig 38: Rear Fascia

G00450323

Courtesy of CHRYSLER LLC

Fig 39: HVAC Unit

G00359201

Courtesy of CHRYSLER LLC

Fig 40: Power Distribution Center

G00364592

Courtesy of CHRYSLER LLC

Fig 41: Right Side Of Engine Compartment

G00364054

Courtesy of CHRYSLER LLC

Fig 42: Right Rear Of Engine (6.1L)

G00450318

Courtesy of CHRYSLER LLC

Fig 43: Left Rear Of Engine (6.1L)

G00450319

Courtesy of CHRYSLER LLC

Fig 44: Police Fuse/Relay Block

G00364065

Courtesy of CHRYSLER LLC

Fig 45: Right Tail Lamp Assembly (Left Similar)

G00450329

Courtesy of CHRYSLER LLC

Fig 46: Front Of Vehicle

G00450332

Courtesy of CHRYSLER LLC

Fig 47: Dash

G00450333

Courtesy of CHRYSLER LLC

Fig 48: Engine Assembly (3.5L)

G00450326

Courtesy of CHRYSLER LLC

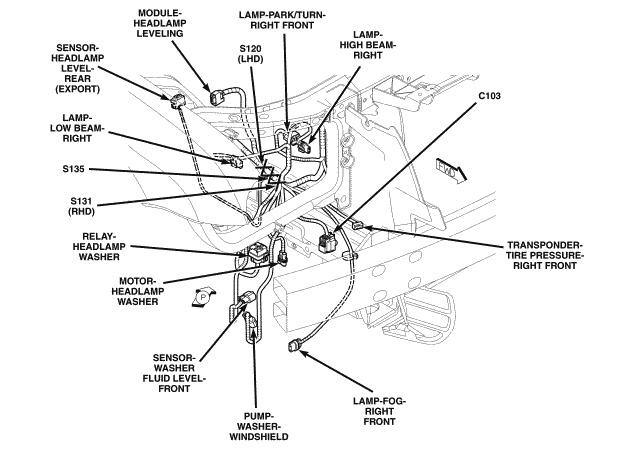

Fig 49: Right Front Of Engine Compartment

G00457461

Courtesy of CHRYSLER LLC

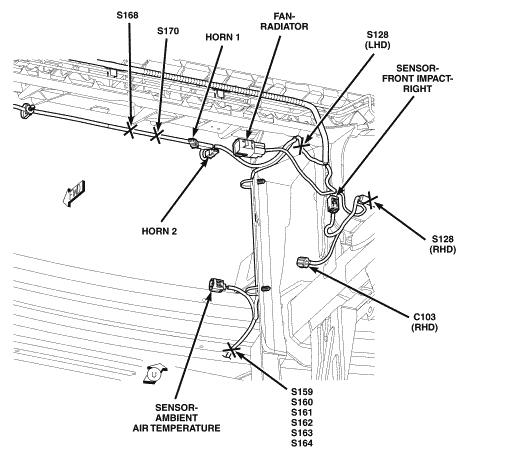

Fig 50: Right Front Of Engine Compartment

G00457462

Courtesy of CHRYSLER LLC

Fig 51: Right Side Of Engine Compartment

G00457463

Courtesy of CHRYSLER LLC

Fig 52: Right Inner Fender Shield

G00457464

Courtesy of CHRYSLER LLC

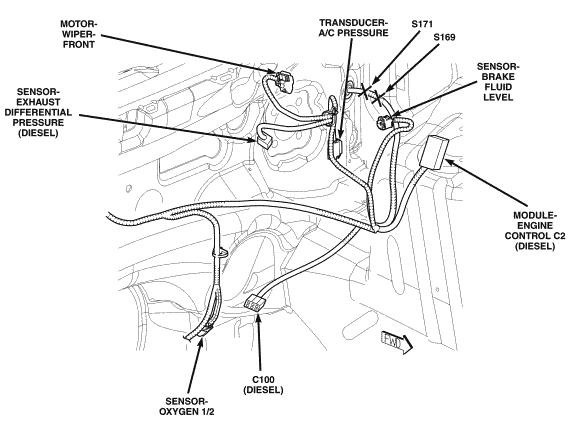

Fig 53: Left Rear Of Engine Compartment (LHD)

G00457465

Courtesy of CHRYSLER LLC

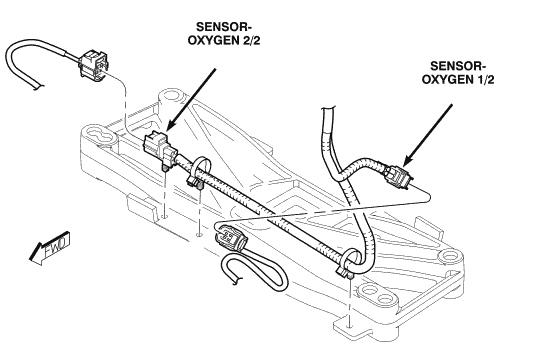

Fig 54: Rear Of Engine Compartment (V6)

G00457466

Courtesy of CHRYSLER LLC

Fig 55: Instrument Panel (LHD)

G00457467

Courtesy of CHRYSLER LLC

Fig 56: Police/Taxi Interface Module (LHD)

G00457468

Courtesy of CHRYSLER LLC

Fig 57: Body, Left Front

G00457469

Courtesy of CHRYSLER LLC

Fig 58: Body, Right Front

G00457470

Courtesy of CHRYSLER LLC

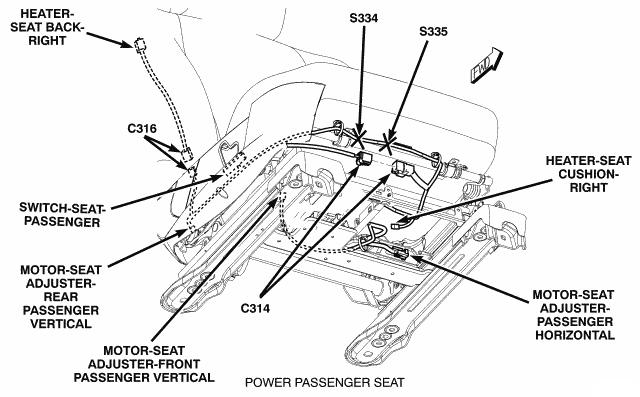

Fig 59: Passenger Seat

G00457471

Courtesy of CHRYSLER LLC

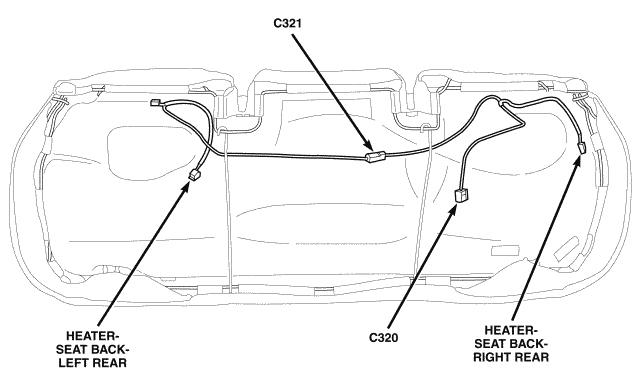

Fig 60: Rear Heated Seat Harness

G00457472

Courtesy of CHRYSLER LLC

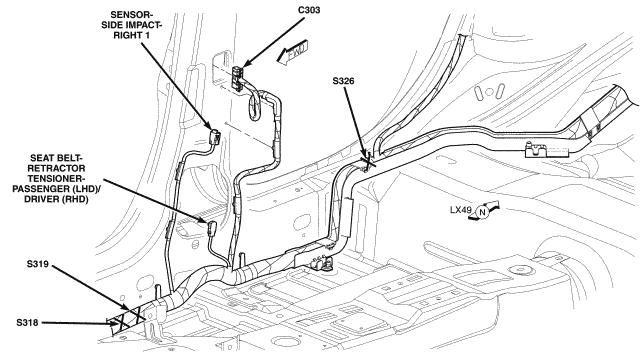

Fig 61: Body, Right Side

G00457473

Courtesy of CHRYSLER LLC

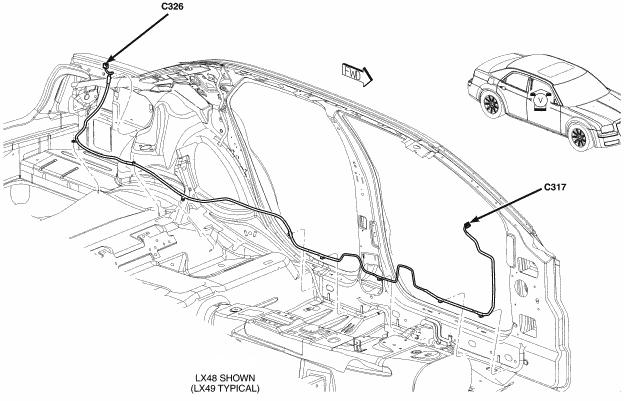

Fig 62: Satellite Radio Jumper

G00457474

Courtesy of CHRYSLER LLC

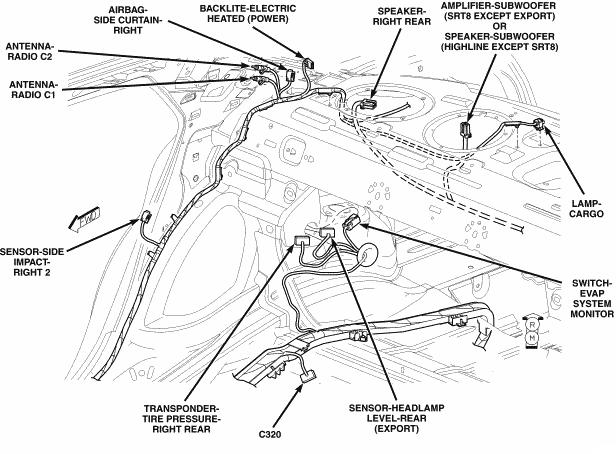

Fig 63: Body, Right Rear Quarter

G00457475

Courtesy of CHRYSLER LLC

Fig 64: Body, Right Rear & PDC

G00457476

Courtesy of CHRYSLER LLC

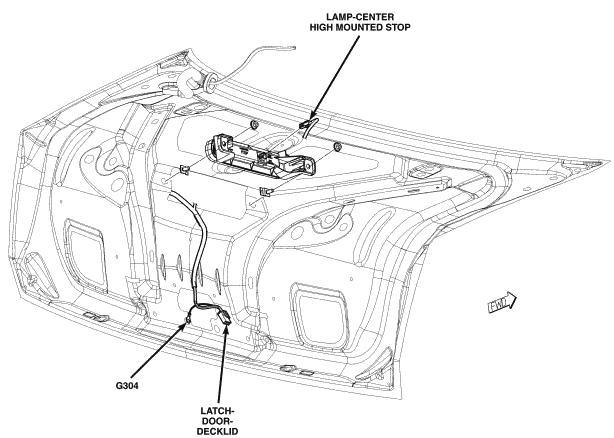

Fig 65: Decklid

G00457477

Courtesy of CHRYSLER LLC

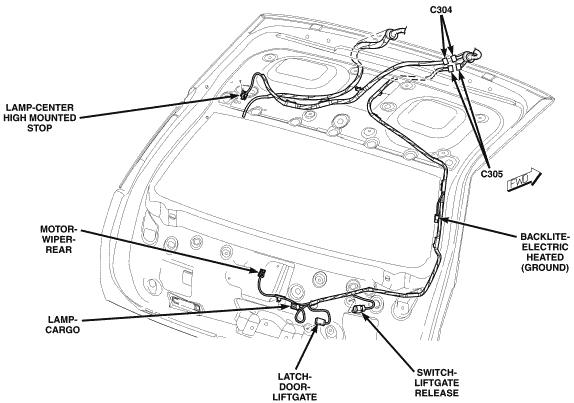

Fig 66: Liftgate

G00457478

Courtesy of CHRYSLER LLC
