Relay Control Module C Connector End View

RELAY CONTROL MODULE C - BLACK 5-WAY

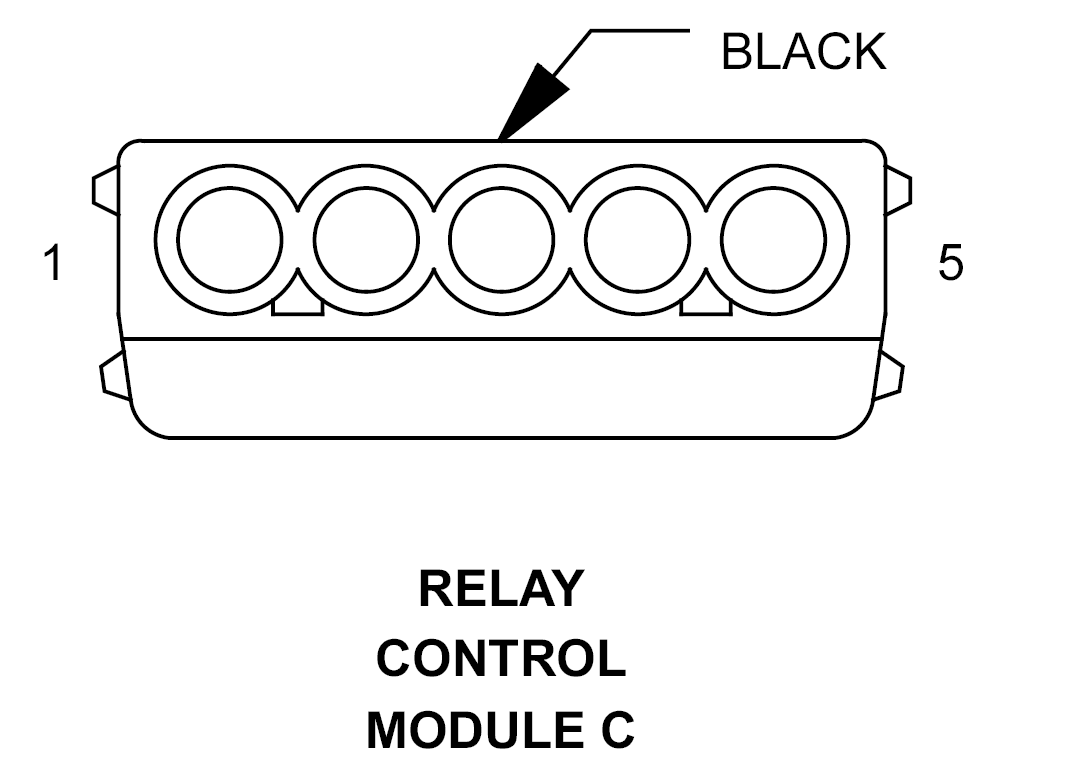

GZH780210Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 - -
3 - -
4 18RD/YL TRACTION SYSTEM RELAY OUTPUT
5 18RD/DG TRACTION SYSTEM RELAY OUTPUT
