Accelerator Pedal Position Sensor: Installation

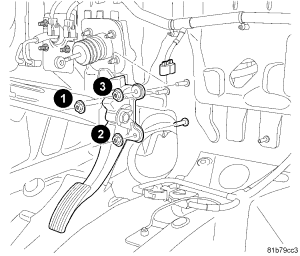

Fig 1: ACCELERATOR PEDAL - LHD

Courtesy of CHRYSLER LLC

CAUTION: The accelerator pedal and mounting nuts need to be torque in a mandatory torque sequence or damage could result to the pedal assembly.

1. Install the accelerator pedal and mounting nuts to the mounting studs. Tighten the nuts in a mandatory torque sequence to 16 N.m (12 ft. lbs.).
2. Connect the electrical connector from accelerator pedal.
3. Connect negative battery cable, tighten nut to 5 N.m (45 in. lbs.).
4. Use a scan tool and perform the APPS RELEARN function.
