Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Front Of Engine Compartment

G00364052

Courtesy of CHRYSLER LLC

Fig 2: Front Of Engine Compartment

G00364053

Courtesy of CHRYSLER LLC

Fig 3: Right Side Of Engine Compartment

G00450315

Courtesy of CHRYSLER LLC

Fig 4: Right Inner Fender Shield

G00450324

Courtesy of CHRYSLER LLC

Fig 5: Right Rear Of Engine (2.7L)

G00450311

Courtesy of CHRYSLER LLC

Fig 6: Left Rear Of Engine (2.7L)

G00358902

Courtesy of CHRYSLER LLC

Fig 7: Front Of Engine (3.5L)

G00358903

Courtesy of CHRYSLER LLC

Fig 8: Right Rear Of Engine (3.5L)

G00450310

Courtesy of CHRYSLER LLC

Fig 9: Left Rear Of Engine (3.5L)

G00450312

Courtesy of CHRYSLER LLC

Fig 10: Left Side Of Engine (3.5L)

G00358906

Courtesy of CHRYSLER LLC

Fig 11: Right Front Of Engine (5.7L)

G00358907

Courtesy of CHRYSLER LLC

Fig 12: Right Rear Of Engine (5.7L)

G00450316

Courtesy of CHRYSLER LLC

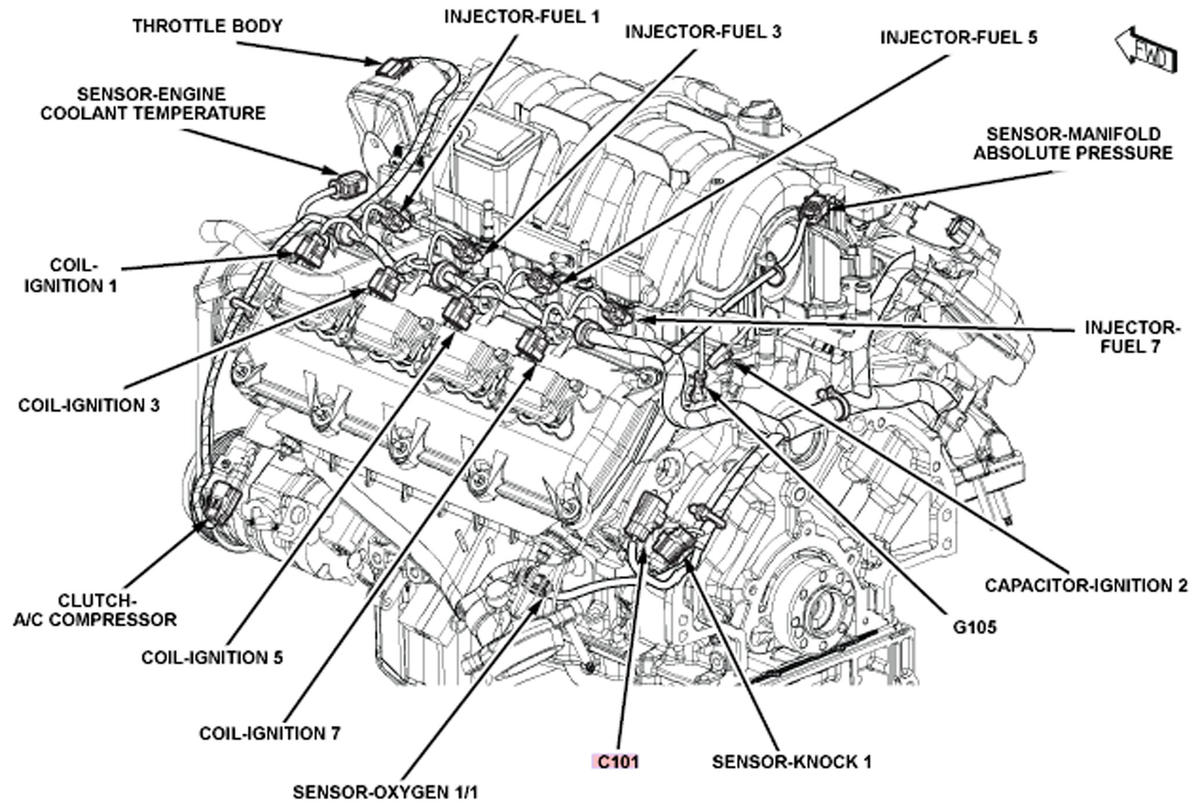

Fig 13: Left Rear Of Engine (5.7L)

G00466851

Courtesy of CHRYSLER LLC

Fig 14: HVAC Unit

G00358911

Courtesy of CHRYSLER LLC

Fig 15: Instrument Panel

G00358912

Courtesy of CHRYSLER LLC

Fig 16: Left Side Of Dash

G00358913

Courtesy of CHRYSLER LLC

Fig 17: Steering Column

G00358914

Courtesy of CHRYSLER LLC

Fig 18: Left Side Of Dash

G00358915

Courtesy of CHRYSLER LLC

Fig 19: Center/Left Side Of Dash

G00450327

Courtesy of CHRYSLER LLC

Fig 20: Center Of Dash

G00450328

Courtesy of CHRYSLER LLC

Fig 21: Right Side Of Dash

G00450313

Courtesy of CHRYSLER LLC

Fig 22: Left "A" Pillar

G00358920

Courtesy of CHRYSLER LLC

Fig 23: Right Front Of Passenger Compartment

G00450320

Courtesy of CHRYSLER LLC

Fig 24: Driver Seat

G00358923

Courtesy of CHRYSLER LLC

Fig 25: Left Side Of Passenger Compartment

G00358925

Courtesy of CHRYSLER LLC

Fig 26: Driver Door (Right Front Door Similar)

G00358928

Courtesy of CHRYSLER LLC

Fig 27: Left/Right Rear Door

G00358929

Courtesy of CHRYSLER LLC

Fig 28: Left Rear Quarterpanel (Except Magnum)

G00358930

Courtesy of CHRYSLER LLC

Fig 29: Right Rear Quarterpanel (Magnum)

G00450322

Courtesy of CHRYSLER LLC

Fig 30: Headliner

G00358934

Courtesy of CHRYSLER LLC

Fig 31: Headliner

G00358935

Courtesy of CHRYSLER LLC

Fig 32: Left Rear Of Trunk (Except Magnum)

G00358936

Courtesy of CHRYSLER LLC

Fig 33: Left Rear Of Cargo Area (Magnum)

G00358937

Courtesy of CHRYSLER LLC

Fig 34: Trunk (Except Magnum)

G00364063

Courtesy of CHRYSLER LLC

Fig 35: Trunk Battery

G00358942

Courtesy of CHRYSLER LLC

Fig 36: Rear Of Vehicle

G00358943

Courtesy of CHRYSLER LLC

Fig 37: Rear Fascia

G00450323

Courtesy of CHRYSLER LLC

Fig 38: HVAC Unit

G00359201

Courtesy of CHRYSLER LLC

Fig 39: Right Side Of Engine Compartment

G00364054

Courtesy of CHRYSLER LLC

Fig 40: Right Rear Of Engine (6.1L)

G00450318

Courtesy of CHRYSLER LLC

Fig 41: Left Rear Of Engine (6.1L)

G00450319

Courtesy of CHRYSLER LLC

Fig 42: Police Fuse/Relay Block

G00364065

Courtesy of CHRYSLER LLC

Fig 43: Right Taillight Assembly (Left Similar)

G00450329

Courtesy of CHRYSLER LLC

Fig 44: Front Of Vehicle

G00450332

Courtesy of CHRYSLER LLC

Fig 45: Dash

G00450333

Courtesy of CHRYSLER LLC

Fig 46: Engine Assembly (3.5L)

G00450326

Courtesy of CHRYSLER LLC

Fig 47: Right Front Of Engine Compartment

G00457461

Courtesy of CHRYSLER LLC

Fig 48: Right Front Of Engine Compartment

G00457462

Courtesy of CHRYSLER LLC

Fig 49: Right Side Of Engine Compartment

G00457463

Courtesy of CHRYSLER LLC

Fig 50: Right Inner Fender Shield

G00457464

Courtesy of CHRYSLER LLC

Fig 51: Left Rear Of Engine Compartment

G00457465

Courtesy of CHRYSLER LLC

Fig 52: Rear Of Engine Compartment (V6)

G00457466

Courtesy of CHRYSLER LLC

Fig 53: Instrument Panel

G00457467

Courtesy of CHRYSLER LLC

Fig 54: Police/Taxi Interface Module

G00457468

Courtesy of CHRYSLER LLC

Fig 55: Body, Left Front

G00457469

Courtesy of CHRYSLER LLC

Fig 56: Body, Right Front

G00457470

Courtesy of CHRYSLER LLC

Fig 57: Passenger Seat

G00457471

Courtesy of CHRYSLER LLC

Fig 58: Rear Heated Seat Harness

G00457472

Courtesy of CHRYSLER LLC

Fig 59: Body, Right Side

G00457473

Courtesy of CHRYSLER LLC

Fig 60: Rear Transponder Mounting

GC0080583

Courtesy of CHRYSLER LLC

Fig 61: Left Side Of Vehicle

G00457474

Courtesy of CHRYSLER LLC

Fig 62: Body, Right Rear Quarter

G00457475

Courtesy of CHRYSLER LLC

Fig 63: Body, Right Rear & PDC

G00457476

Courtesy of CHRYSLER LLC

Fig 64: Deck Lid

G00457477

Courtesy of CHRYSLER LLC

Fig 65: Liftgate

G00457478

Courtesy of CHRYSLER LLC

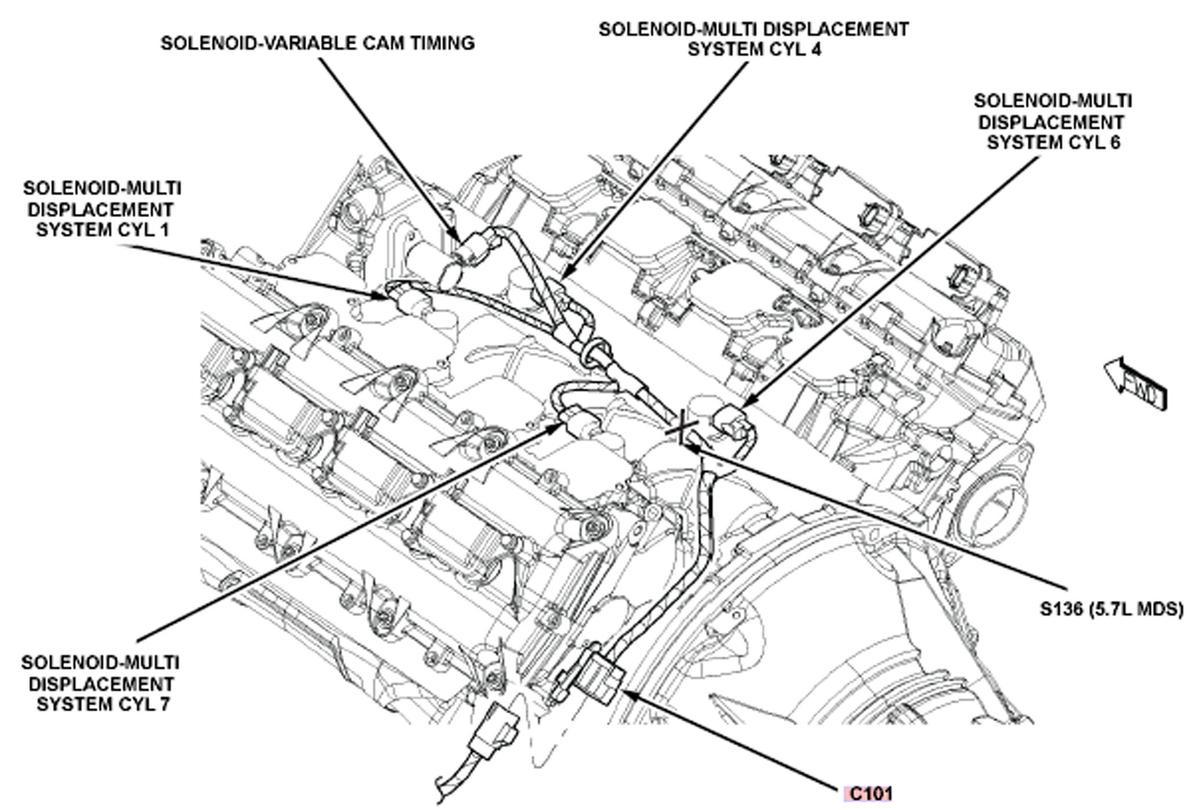

Fig 66: Top Of Engine (5.7L)

G00466852

Courtesy of CHRYSLER LLC

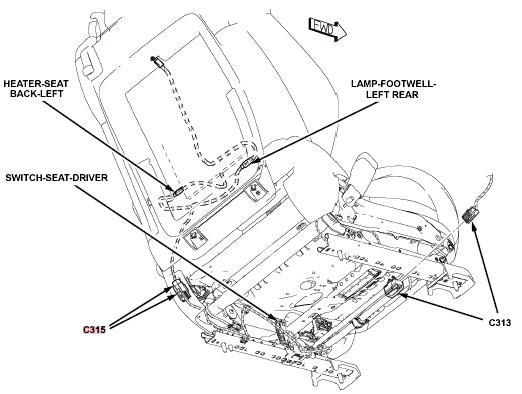

Fig 67: Driver's Seat

G00466853

Courtesy of CHRYSLER LLC

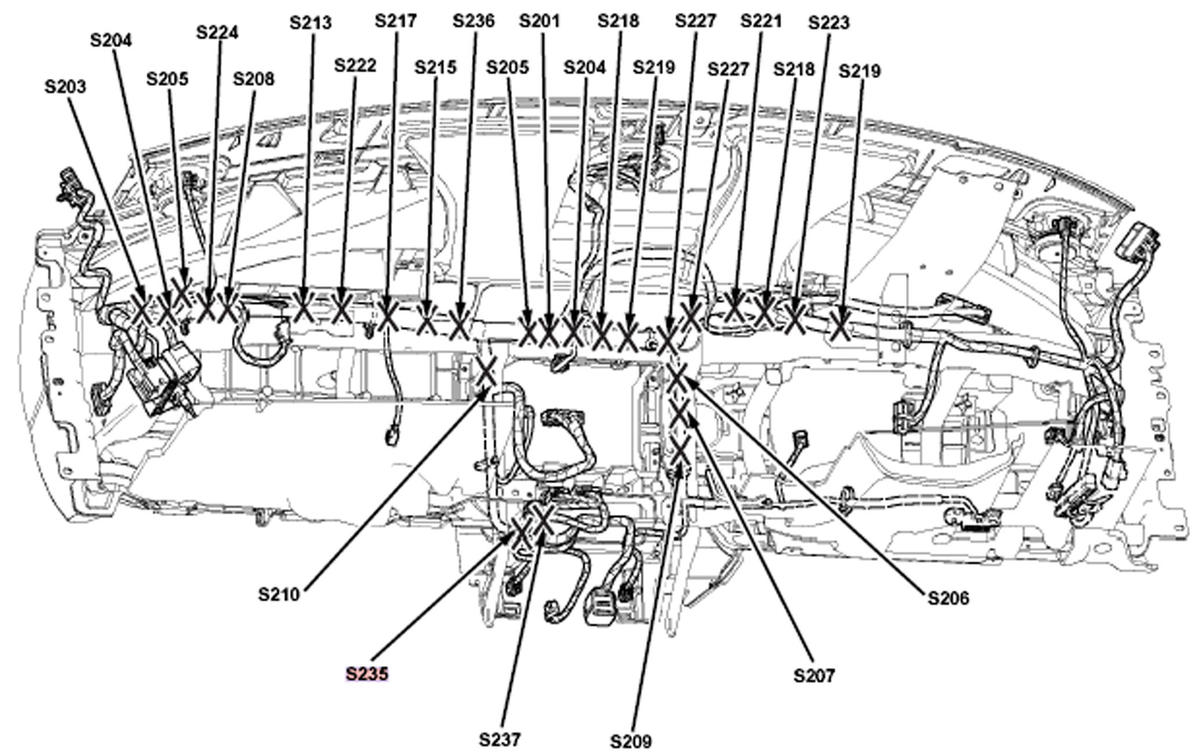

Fig 68: Dash

G00466854

Courtesy of CHRYSLER LLC

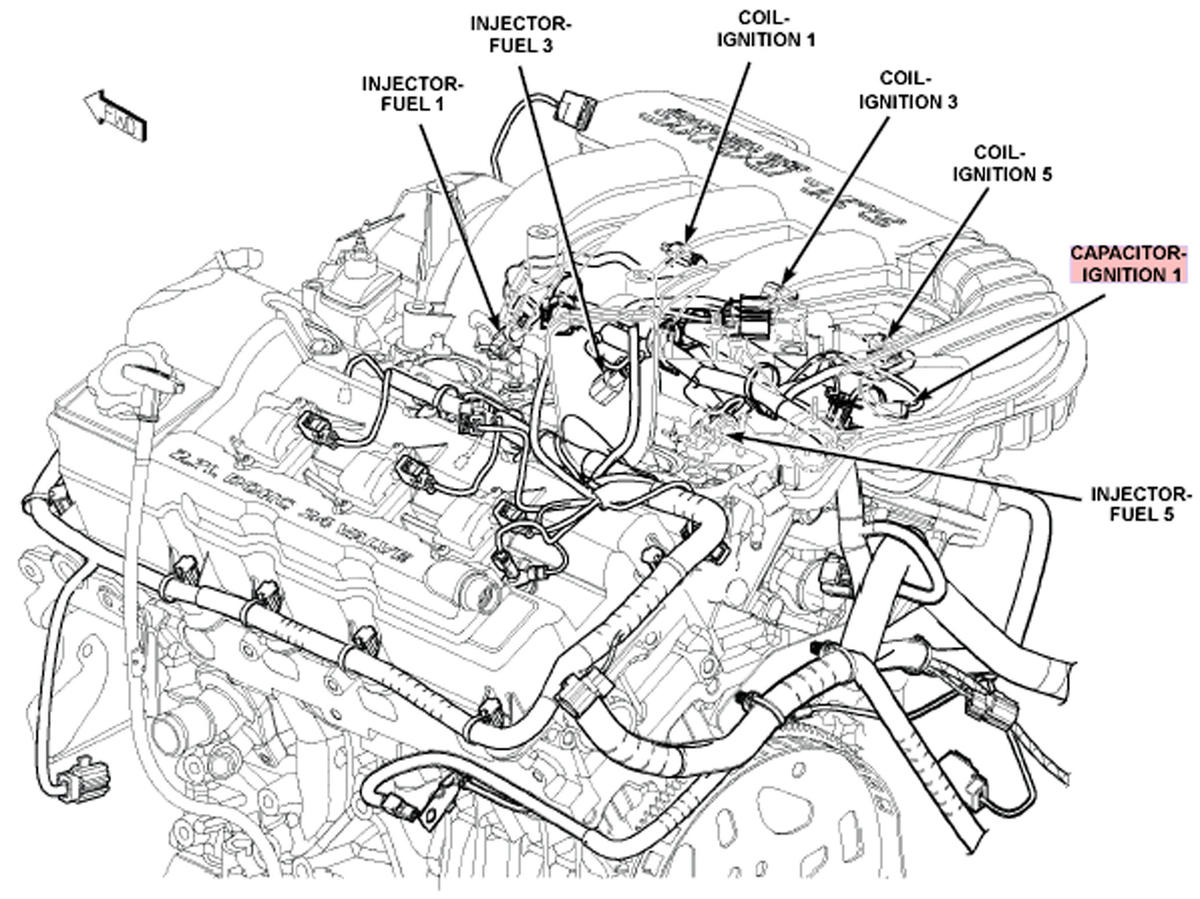

Fig 69: Top Of Engine (2.7L)

G00466855

Courtesy of CHRYSLER LLC

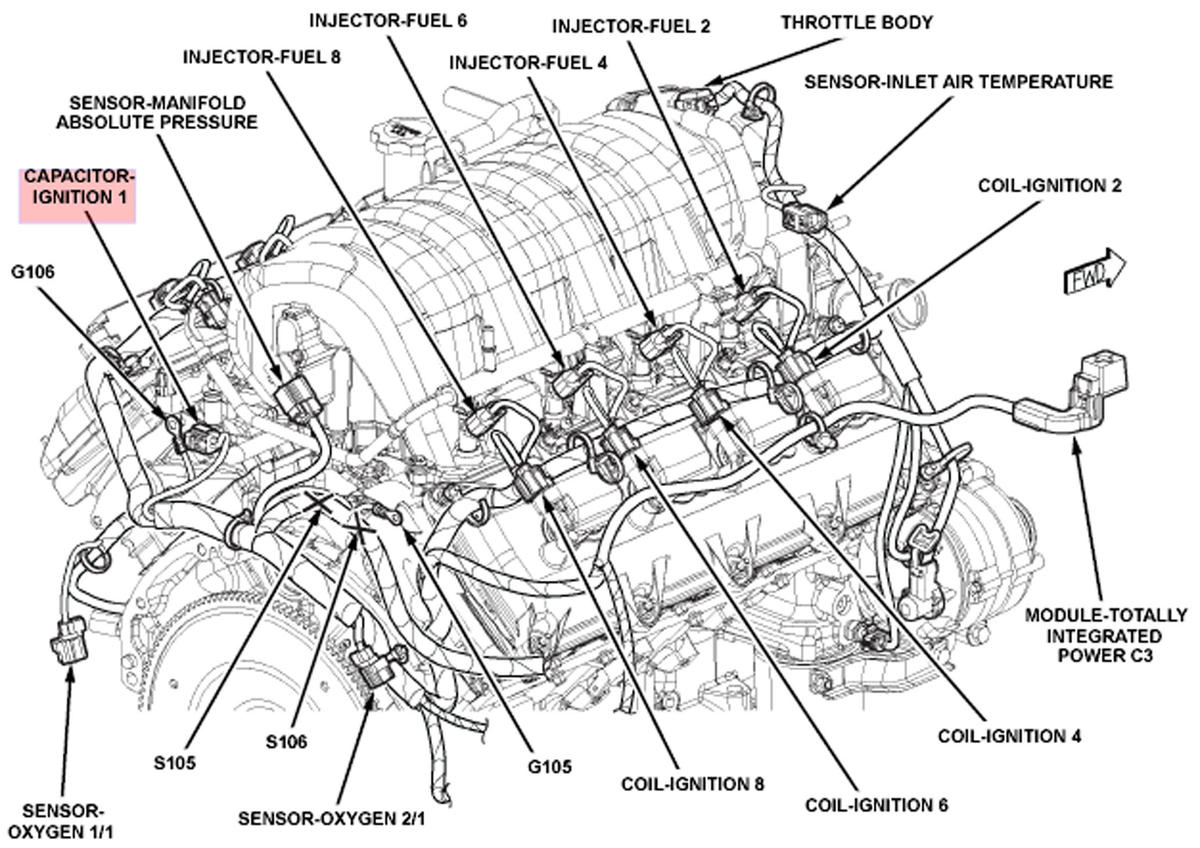

Fig 70: Top Of Engine (6.1L)

G00466856

Courtesy of CHRYSLER LLC

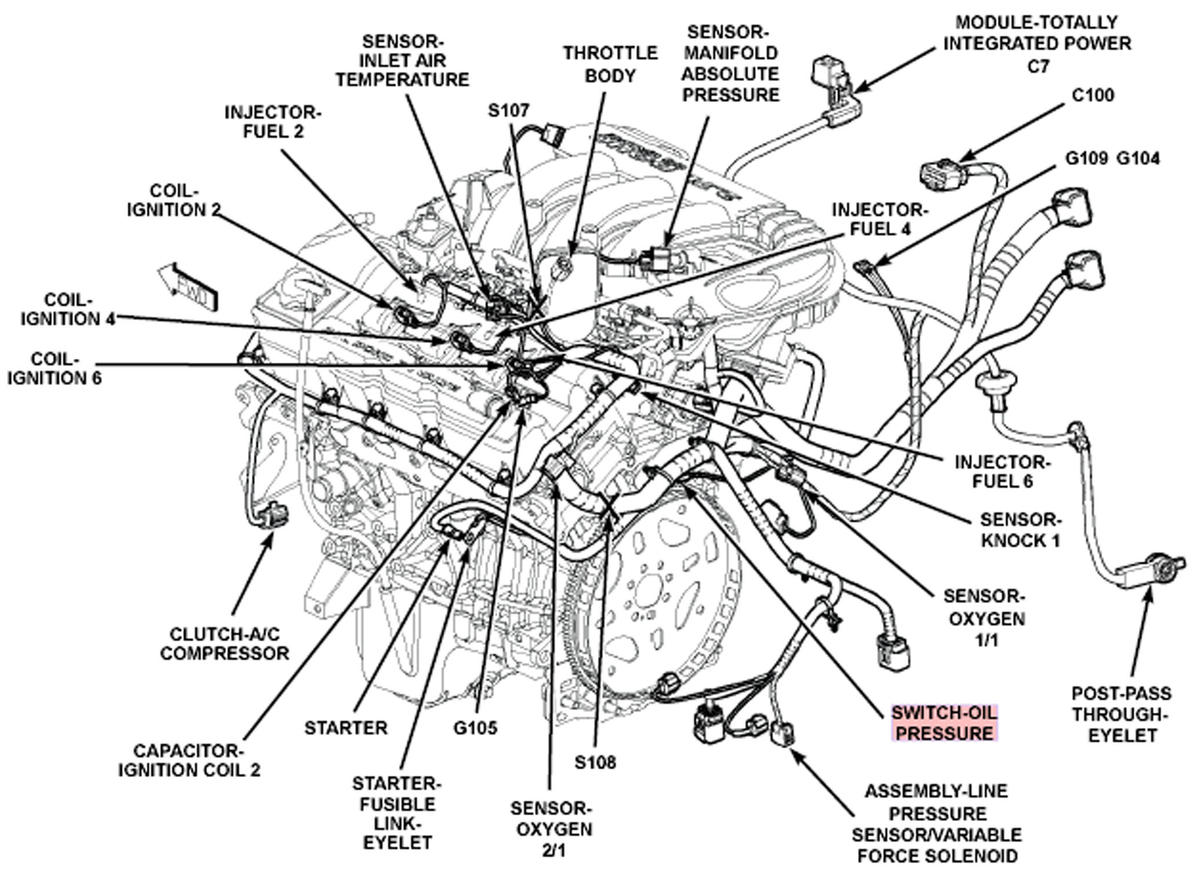

Fig 71: Top Of Engine (2.7L)

G00466857

Courtesy of CHRYSLER LLC

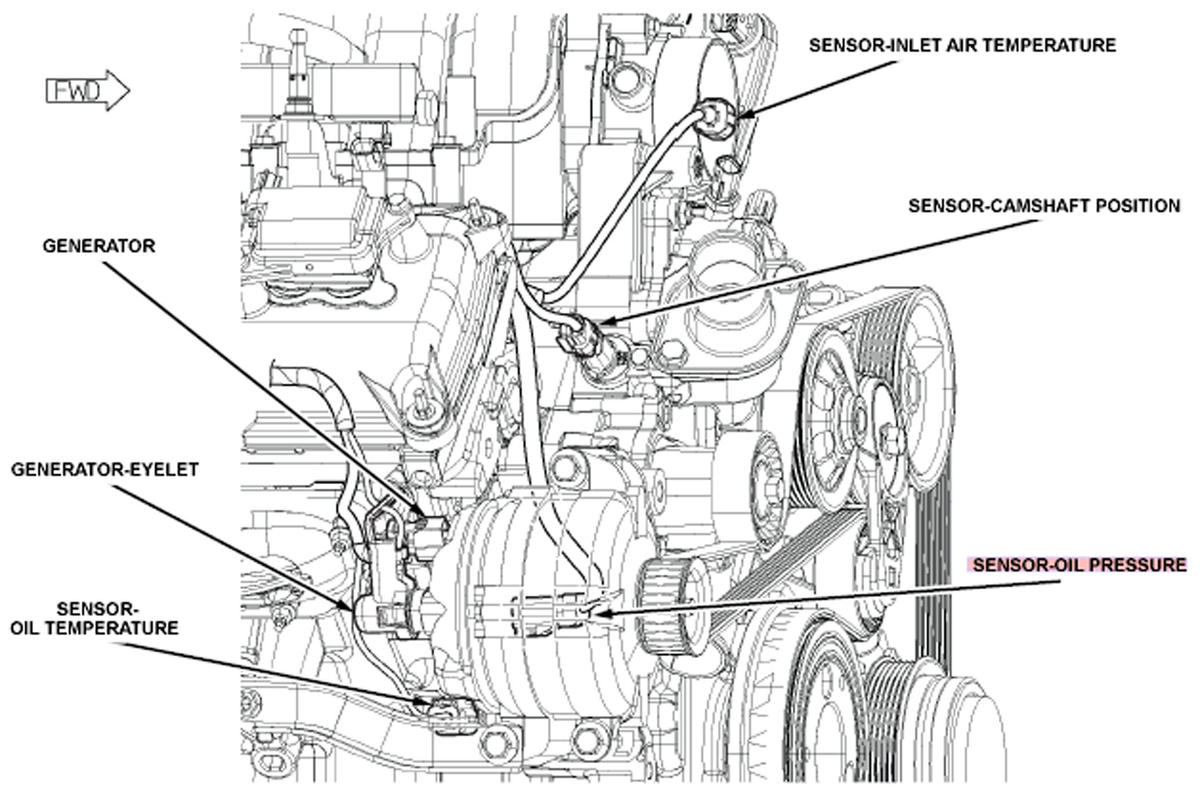

Fig 72: Right Front Of Engine (5.7L)

G00466858

Courtesy of CHRYSLER LLC

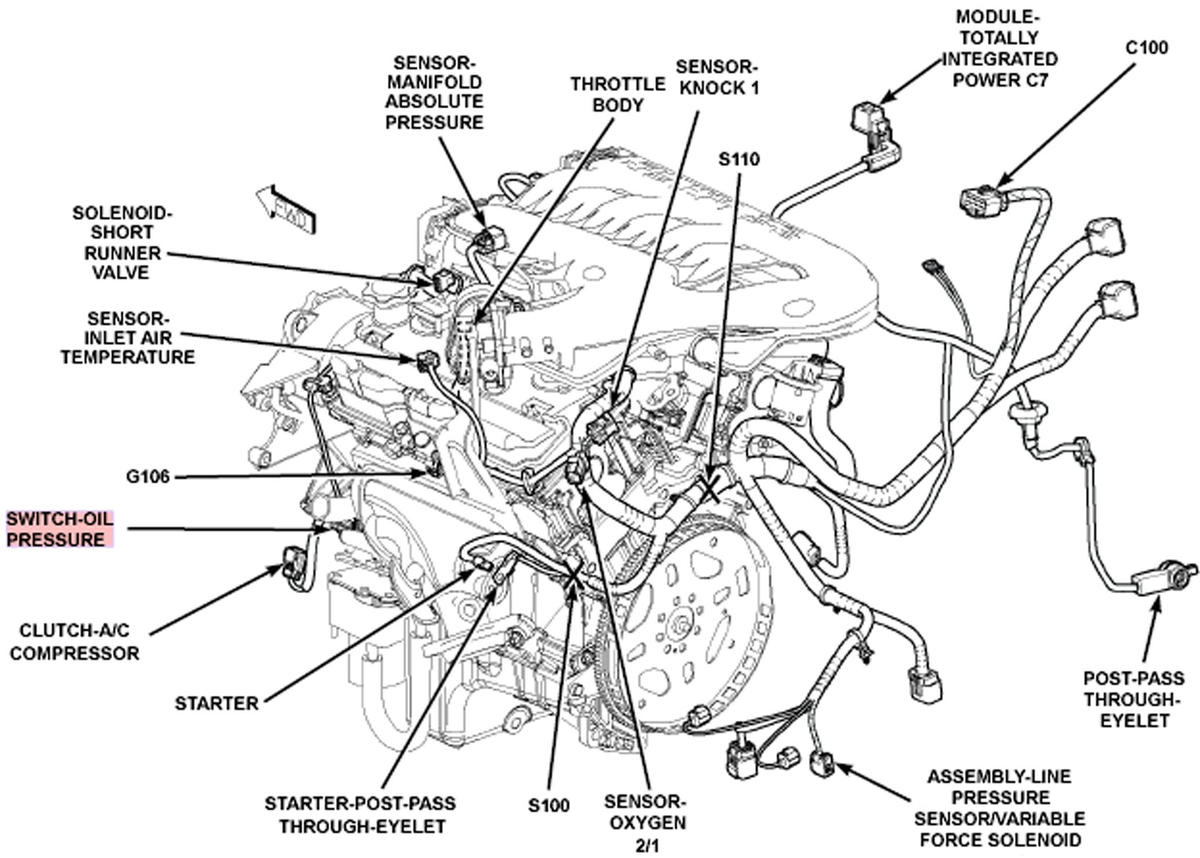

Fig 73: Left Side Of Engine (3.5L)

G00466859

Courtesy of CHRYSLER LLC

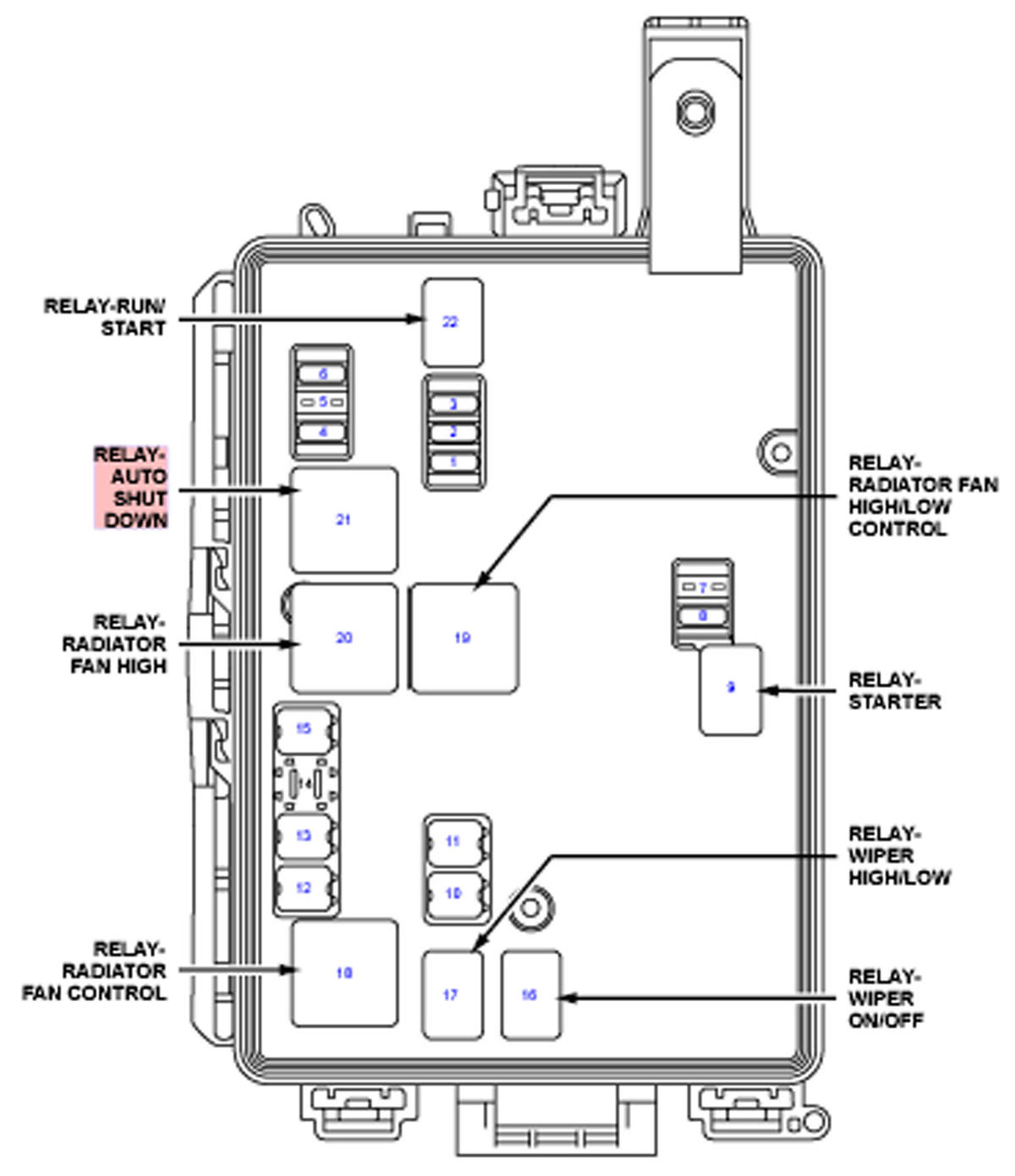

Fig 74: Totally Integrated Power Module

G00466860

Courtesy of CHRYSLER LLC

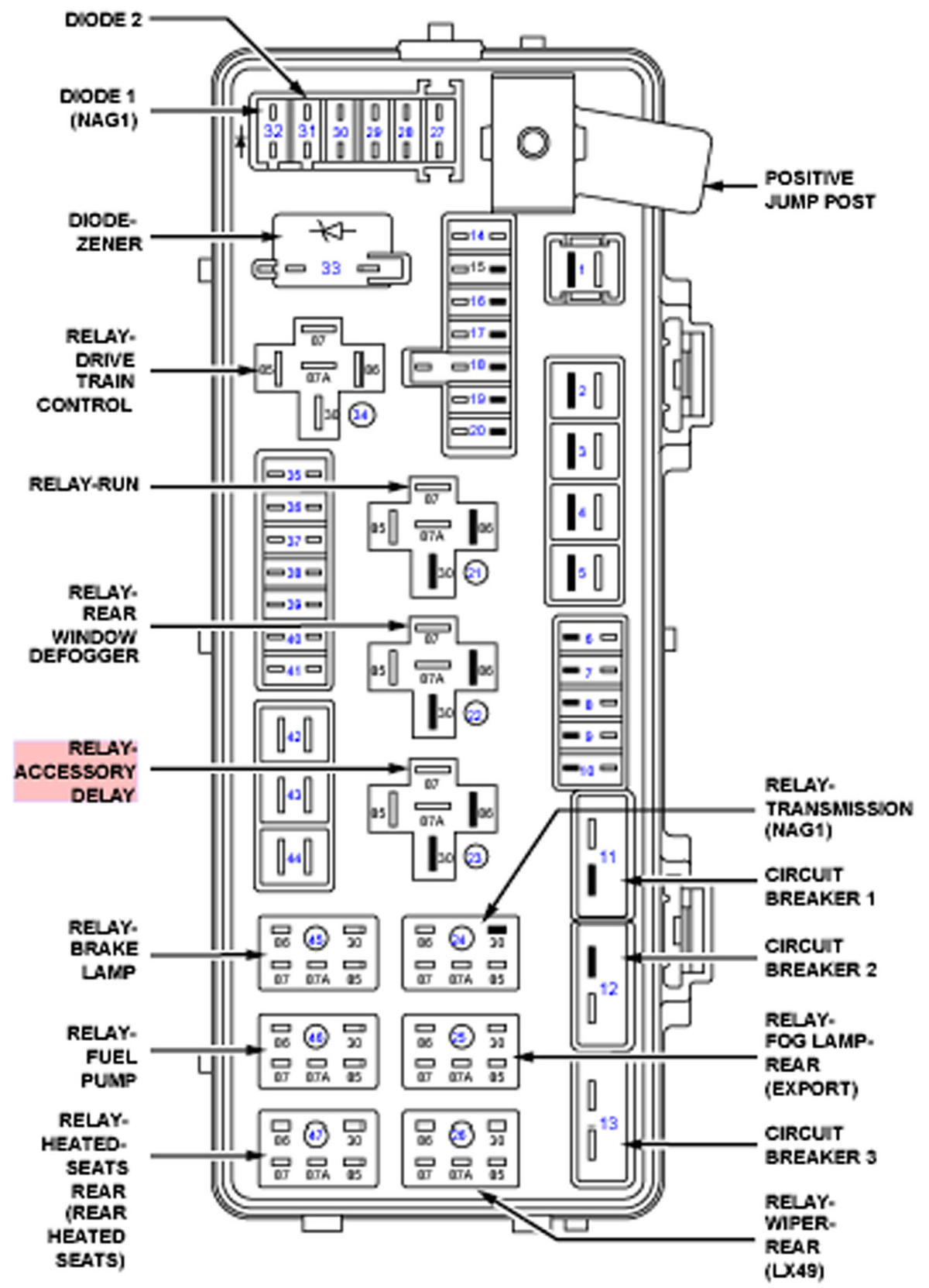

Fig 75: Power Distribution Center

G00466861

Courtesy of CHRYSLER LLC
