P0141-O2 Sensor 1/2 Heater Performance: Notes

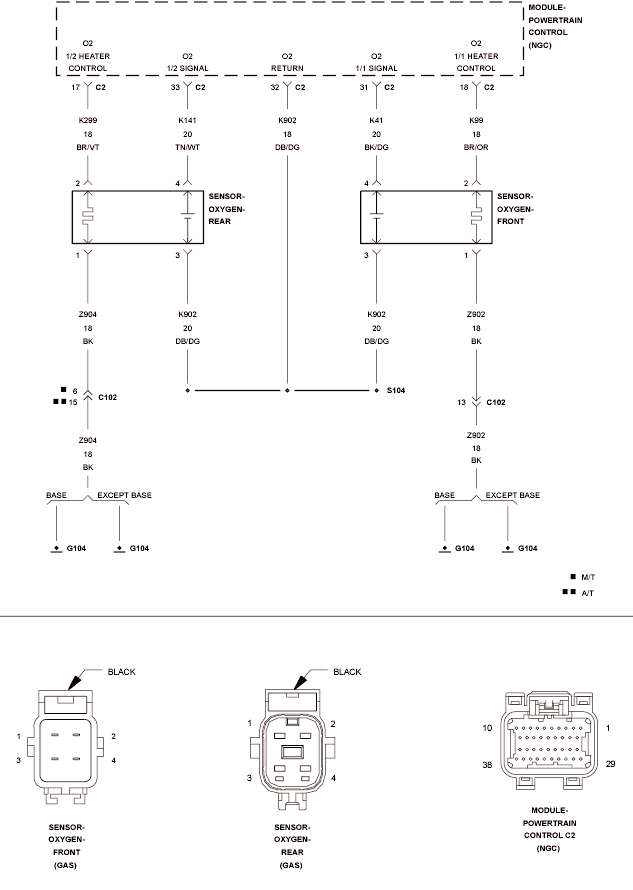

Fig 1: O2 Sensor 1/1 Heater Circuit

GC0117122

Courtesy of CHRYSLER LLC
