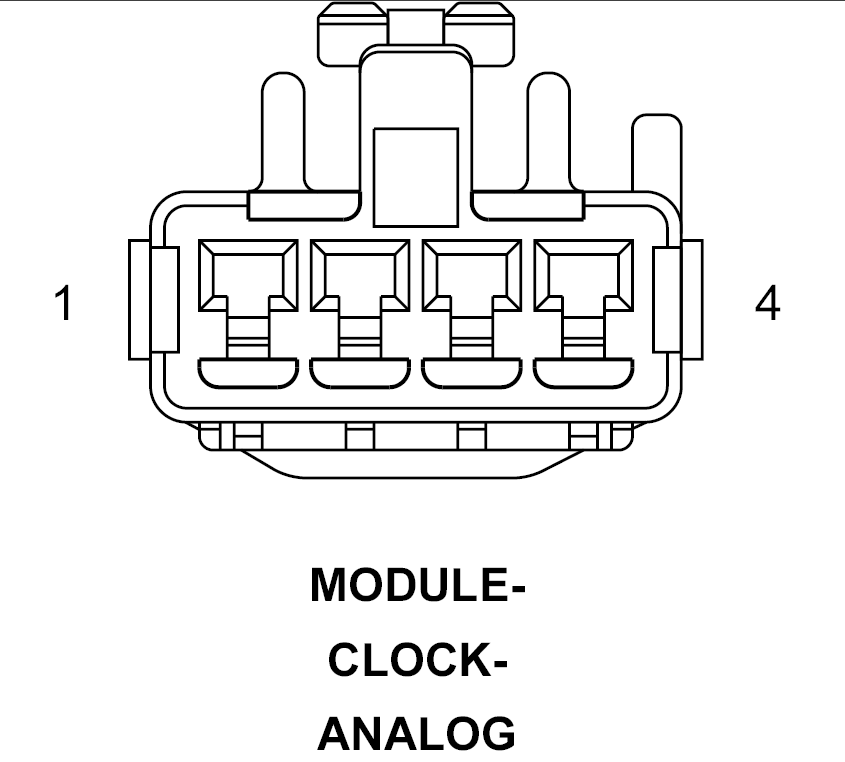

Analog Clock Module Connector End View

MODULE-CLOCK-ANALOG - 4-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A411 20RD/DG	FUSED B(+) (I.O.D.)
2	Z909 20BK/LG	GROUND
3	E12 20OR/GY	PANEL LAMPS DRIVER
4	-	-
