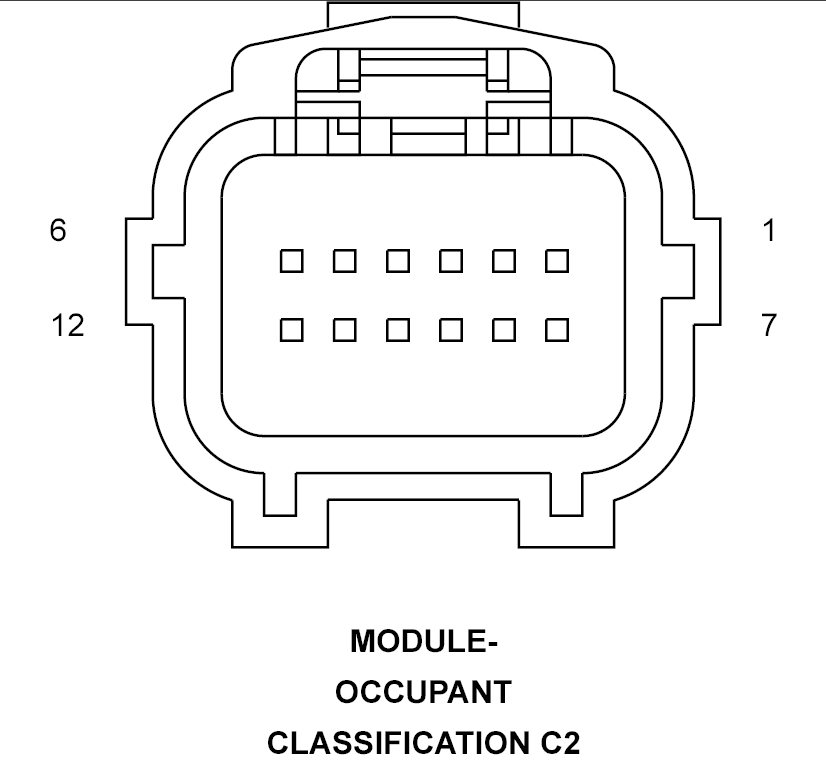

Occupant Classification Module Connector End View (C2)
MODULE-OCCUPANT CLASSIFICATION C2 - 12-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | R701 20LG | SEAT WEIGHT SENSOR 5 VOLT |
| 2 | R264 20VT/LB | PASSENGER SEAT POSITION SENSOR VOLTAGE |
| 3 | R717 20LG/DG | SEAT WEIGHT LEFT FRONT SENSOR SIGNAL |
| 4 | - | - |
| 5 | R718 20LB/DG | SEAT WEIGHT RIGHT FRONT SENSOR SIGNAL |
| 6 | - | - |
| 7 | R706 20LB/OR | SEAT WEIGHT RIGHT REAR SENSOR SIGNAL |
| 8 | - | - |
| 9 | R705 20LG/OR | SEAT WEIGHT LEFT REAR SENSOR SIGNAL |
| 10 | - | - |
| 11 | R262 20WT/LB | PASSENGER SEAT POSITION SENSOR DATA |
| 12 | R728 20LB/YL | SEAT WEIGHT SENSOR GROUND |
