Home >> Chrysler >> 2009 >> PT Cruiser Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition Control (Service Information) >> CAPACITOR, Ignition >> Removal >> Removal

CAPACITOR, Ignition: Removal: Removal

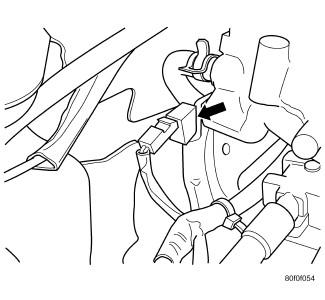

Fig 1: COIL CAPACITOR - 2.4L TURBO
GC0114323Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Remove electrical connector from ignition coil capacitor.
  3. Remove mounting bolt and remove capacitor.
